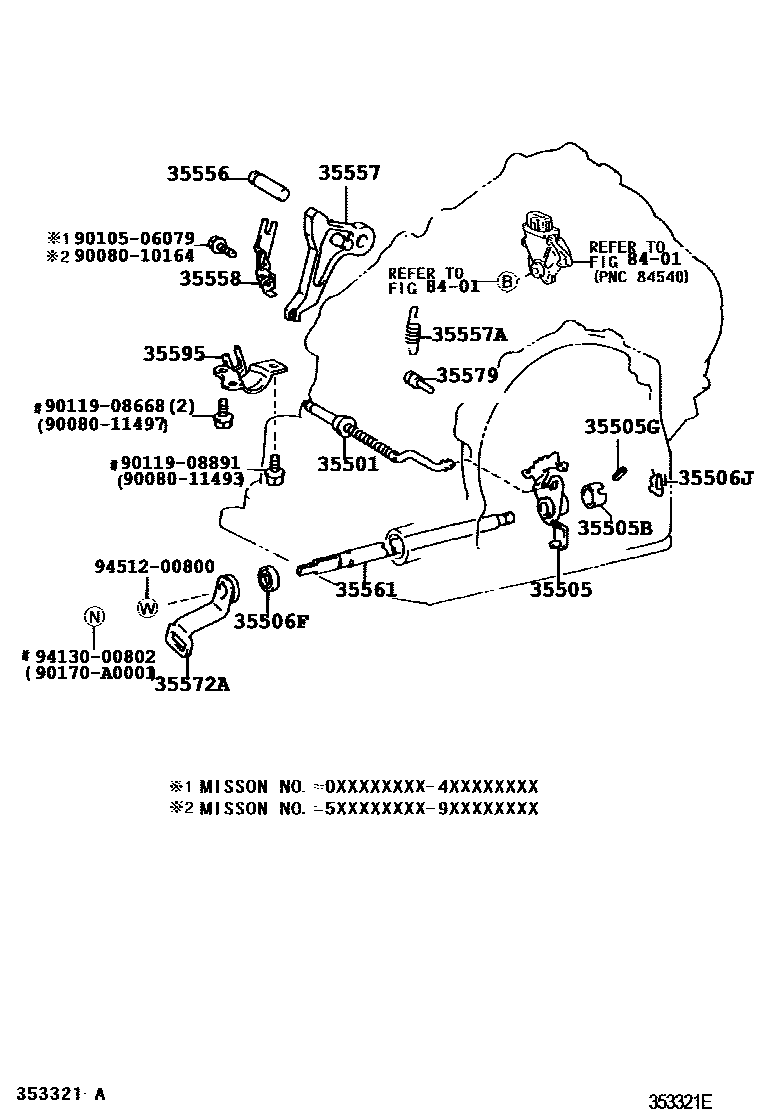

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U140E,U241E 0002 1U151E 0003 1U250E 0004 1U151E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACV30,MCV3#..JPP..5FC200406

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACV30,MCV3#..JPP..ATM200107-200406

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACV30,MCV3#..JPP..ATM200107-200406

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACV30,MCV3#..JPP..ATM200107-200406

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACV30,MCV3#..JPP..ATM200107-200406

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV30,MCV3#..JPP..ATM200107-200406

35556SHAFT, PARKING LOCK PAWL

main35556-21010iMCV30..JPP200107-200301

MISSION NO.=0XXXXXXXX-4XXXXXXXX

main35556-28010iMCV3#..JPP200406

main35556-28020iACV30..JPP..4FC200201-200406

MISSION NO.=5XXXXXXXX-9XXXXXXXX

main35556-32030iACV30..JPP..5FC200406

35557PAWL, PARKING LOCK

main35590-21010iMCV3#..JPP200107-200406

main35590-32010iACV30..JPP..4FC200107-200406

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90080-50373iACV30,MCV30..JPP..4FC200212-200406

MISSION NO.=5XXXXXXXX-9XXXXXXXX

main90506-18077iACV30,MCV3#..JPP..5FC200406

35558CLAMP, PAWL SHAFT

main35558-21010iMCV30..JPP200107-200301

main35558-28010iMCV3#..JPP200406

AISIN AW:REFER TO ILLUSTRATION FIG.35-01

main35558-32010iACV30..JPP..5FC200406

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV30,MCV3#..JPP..ATM200107-200406

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-08010iACV30,MCV30..JPP..4FC200212-200406

MISSION NO.=5XXXXXXXX-9XXXXXXXX

main35572-28100iMCV3#..JPP200301-200406

AISIN AW:REFER TO ILLUSTRATION FIG.35-01

main35572-48010iMCV30..JPP200406-200503

TOYOTA:REFER TO ILLUSTRATION FIG.35-01

35579PIN, PARKING LOCK PAWL

main35594-21010iACV30,MCV30..JPP..4FC200107-200406

main35594-28010iMCV3#..JPP200301-200406

AISIN AW:REFER TO ILLUSTRATION FIG.35-01

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACV30,MCV3#..JPP..5FC200406

8401

9008010164

main90080-10164

9008011493

main90080-11493

9008011497

main90080-11497

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

90170A0001

main90170-A0001

9413000802

main94130-00802

9451200800

main94512-00800

24 parts on this diagram · 4 diagrams in section
