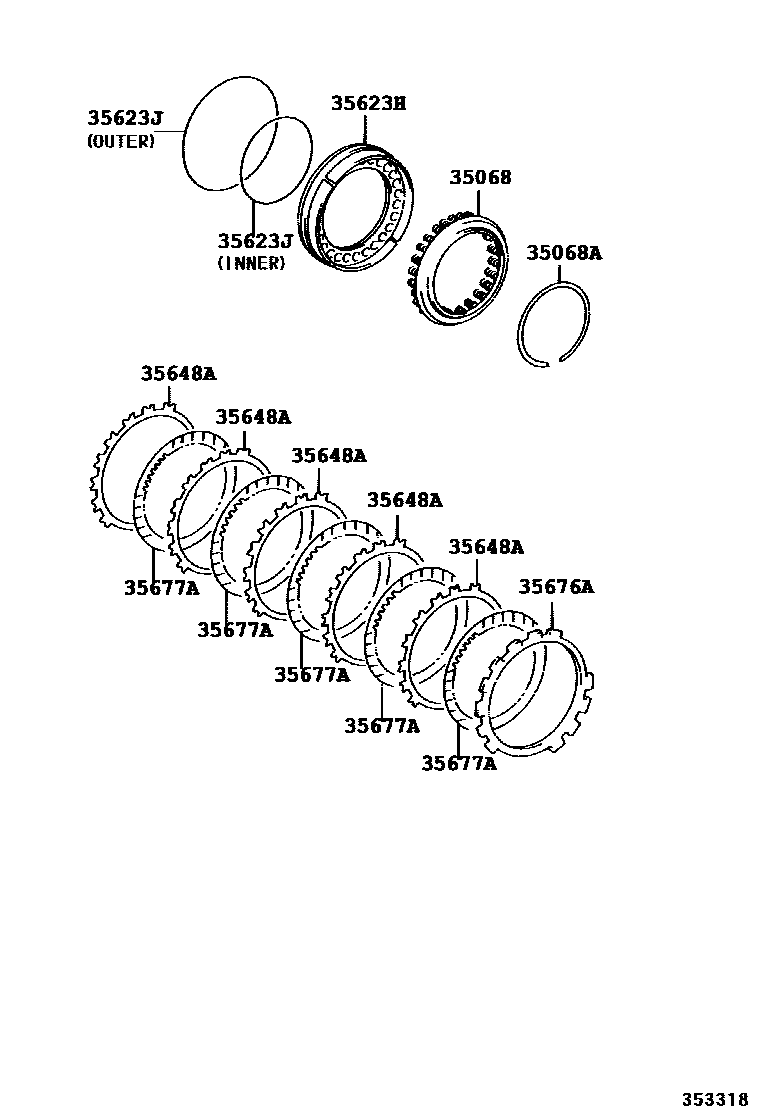

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
(L)
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
(J)
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623HPISTON, 1ST & REVERSE BRAKE
(L)
(L)
(J)
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
(J)
35623JRING, O (FOR 1ST & REVERSE BRAKE)
INNER(L)
OUTER(L)
INNER(J)
INNER
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
T=1.8,MARK 1,(L)
T=1.9,MARK 2,(L)
T=2.0,MARK 3,(L)
T=2.1,MARK 4,(L)
T=2.2,MARK 5,(L)
T=2.3,MARK 6,(L)
T=2.4,MARK 7,(L)
T=2.5,MARK 8,(L)
T=1.8,MARK 1,(J)
T=1.8,MARK 1
T=1.9,MARK 2
T=1.9,MARK 2,(J)
T=2.0,MARK 3,(J)
T=2.0,MARK 3
T=2.1,MARK 4,(J)
T=2.1,MARK 4
T=2.2,MARK 5,(J)
T=2.2,MARK 5
T=2.3,MARK 6
T=2.3,MARK 6,(J)
T=2.4,MARK 7,(J)
T=2.4,MARK 7
T=2.5,MARK 8,(J)
T=2.5,MARK 8
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
(L)
(J)
