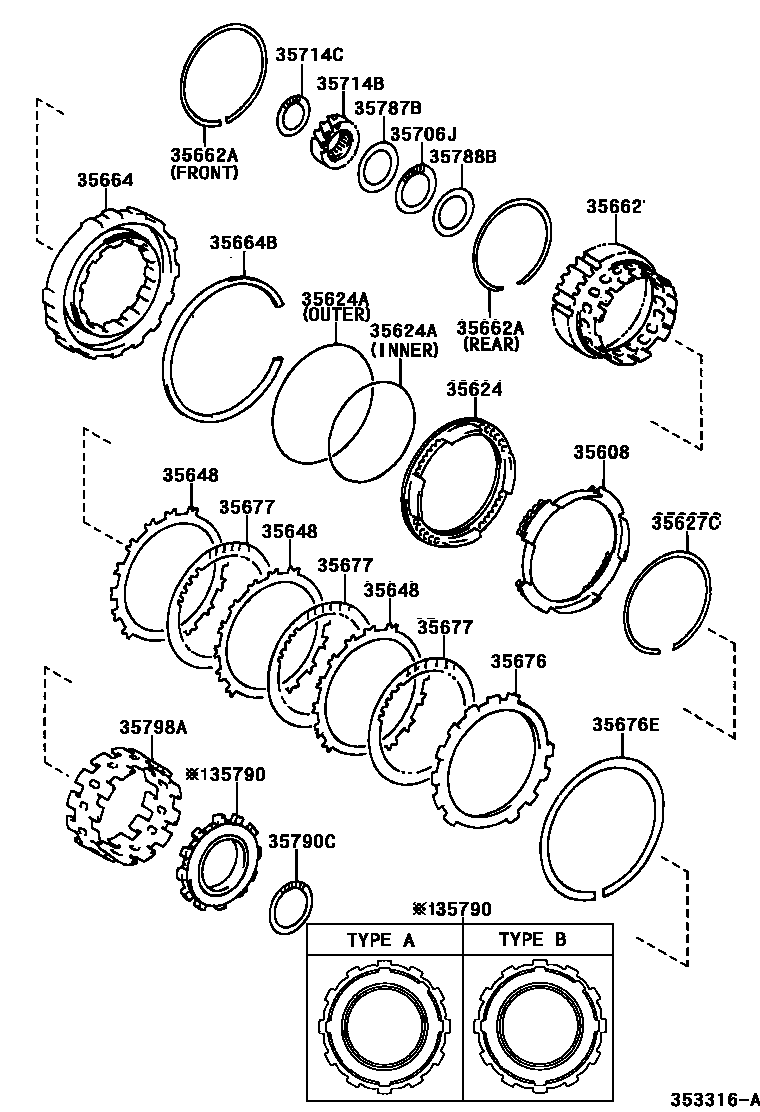

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
(L)
(J)
35624PISTON, 2ND BRAKE
(L)
(L)
(J)
(J)
35624ARING, O (FOR 2ND BRAKE PISTON)
OUTER,(L)
INNER,(L)
OUTER,(J)
OUTER
INNER,(J)
INNER
35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)
(L)
(J)
35648PLATE, CLUTCH (FOR 2ND BRAKE)
T=2.0,(L)
T=2.0
T=2.0,(J)
T=2.0,TOYOTA:REFER TO ILLUSTRATION FIG.35-01
T=2.0,AISIN AW:REFER TO ILLUSTRATION FIG.35-01
35662HUB, BRAKE
35662ARING, SNAP (FOR BRAKE HUB)
(L),REAR
(L),FRONT
(J),REAR
REAR
FRONT
(J),FRONT
35664CYLINDER, 2ND BRAKE
MISSION NO.=5XXXXXXXX-9XXXXXXXX
35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
(L)
(J)
35676FLANGE, BRAKE (FOR 2ND BRAKE)
T=3.0,MARK 1,(L)
T=3.1,MARK 2,(L)
T=3.2,MARK 3,(L)
T=3.3,MARK 4,(L)
T=3.4,MARK 5,(L)
T=3.5,MARK 6,(L)
T=3.6,MARK 7,(L)
T=3.7,MARK 8,(L)
T=2.9,MARK 0,(L)
T=3.7,MARK 8
T=2.9,MARK 0
T=3.0,MARK 1,(J)
T=3.0,MARK 1
T=3.1,MARK 2
T=3.1,MARK 2,(J)
T=3.2,MARK 3
T=3.2,MARK 3,(J)
T=3.3,MARK 4,(J)
T=3.3,MARK 4
T=3.4,MARK 5
T=3.4,MARK 5,(J)
T=3.5,MARK 6
T=3.5,MARK 6,(J)
T=3.6,MARK 7,(J)
T=3.6,MARK 7
35676ERING, HOLE SNAP (FOR 2ND BRAKE)
(L)
(J)
35677DISC, CLUTCH (FOR 2ND BRAKE)
(L)
(J)
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
(L)
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
(J)
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
35714BGEAR, INPUT SUN
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
35714CBEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)
(L)
(J)
35787BRACE, THRUST BEARING, NO.2
NO.2
(L)
NO.1
(J)
35788BRACE, THRUST BEARING, NO.3
(L)
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
(J)
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
35790CLUTCH ASSY, 1 WAY
TYPE B:REFER TO ILLUSTRATION
(L)
TYPE A:REFER TO ILLUSTRATION
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
(J)
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
TYPE A:REFER TO ILLUSTRATION
35790CBEARING, THRUST NEEDLE ROLLER
(L)
35798ASLEEVE, 1WAY CLUTCH, OUTER
(L)
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
