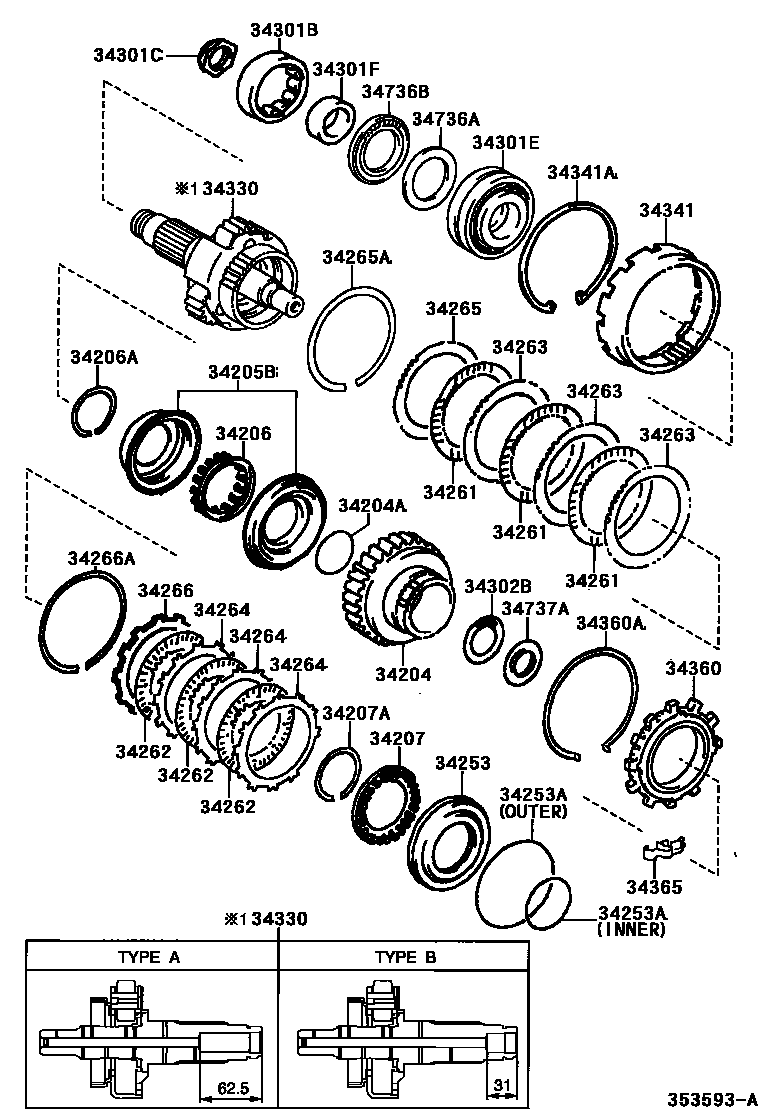

OVERDRIVE GEAR (ATM)
34204ARING, O (FOR UNDERDRIVE CLUTCH DRUM)
(L)
(L)
(J)
(J)
34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
(L)
(L)
(J)
(J)
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
(L)
(L)
(J)
(J)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
(L)
(J)
34207ARING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)
(L)
(J)
34253PISTON, UNDERDRIVE BRAKE
(J)
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)
OUTER(L)
INNER
AISIN AW:REFER TO ILLUSTRATION FIG.35-01,OUTER
OUTER
TOYOTA:REFER TO ILLUSTRATION FIG.35-01,OUTER
OUTER(J)
OUTER
34262DISC, UNDERDRIVE CLUTCH, NO.2
(L)
(L)
(J)
(J)
34263PLATE, UNDERDRIVE CLUTCH, NO.1
(L)
(L)
(J)
(J)
34264PLATE, UNDERDRIVE CLUTCH, NO.2
(L)
(L)
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
(J)
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
(J)
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
T=3.0 MARK 1,(L)
T=3.2 MARK 2,(L)
T=3.4 MARK 3,(L)
T=3.0 MARK 1,(L)
T=3.1 MARK 4
T=3.2 MARK 2,(L)
T=3.3 MARK 5
T=3.4 MARK 3,(L)
T=3.0 MARK 1
T=3.2 MARK 2
T=3.4 MARK 3
T=3.0 MARK A,(J)
T=3.0 MARK A
T=3.2 MARK B,(J)
T=3.2 MARK B
T=3.4 MARK C,(J)
T=3.4 MARK C
T=3.6 MARK D
T=2.8 MARK Y
T=3.1 MARK 4
T=3.3 MARK 5
T=3.1 MARK G
T=3.3 MARK H
T=3.5 MARK J
T=2.9 MARK F
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
(L)
(L)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
(L),T=3.0
(L),T=3.2
(L),T=3.4
(L),T=3.0
(L),T=3.2
(L),T=3.4
(L),T=3.6
(L),T=2.8
T=3.0
T=3.2
T=3.4
T=3.0
T=3.2
T=3.4
T=3.6
T=2.8
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
MISSION NO.=5XXXXXXXX-9XXXXXXXX
MISSION NO.=0XXXXXXXX-4XXXXXXXX
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
(L)
ID=48
34301CNUT (FOR UNDERDRIVE INPUT SHAFT)
(L)
34301EBEARING, TAPERED ROLLER (FOR UNDERDRIVE)
(L)
34301FRACE, CYLINDRICAL ROLLER BEARING, INNER
OD=48
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
(L)
(J)
34330GEAR ASSY, UNDERDRIVE PLANETARY
sub34330-45010
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
sub34330-28H01
sub34330-33020
34341GEAR, UNDERDRIVE PLANETARY RING
sub34341-28010
sub34341-33010
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
sub34341-33020
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
TOYOTA:REFER TO ILLUSTRATION FIG.35-01
AISIN AW:REFER TO ILLUSTRATION FIG.35-01
34360ARING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)
(L)
MISSION NO.=5XXXXXXXX-9XXXXXXXX
MISSION NO.=0XXXXXXXX-4XXXXXXXX
(J)
34365RETAINER, OUTER RACE
34736ARACE, THRUST BEARING UNDERDRIVE, NO.2
(L),T=3.8
T=3.5
T=3.8
T=3.5
(J),T=3.5
T=3.8
(J),T=3.8
34736BBEARING, THRUST NEEDLE ROLLER
(L)
(J)
34737ARACE, THRUST BEARING UNDERDRIVE, NO.3
(L)
(J)
31 parts on this diagram · 2 diagrams in section
