TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,GREEN
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
*10-1.25PX18-13,(J)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
(L)
(J)
35301BRING, O (FOR FRONT OIL PUMP BODY)
(L)
(J)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28,(L)
*8-1.25PX28-28
*8-1.25PX28-28
*8-1.25PX28-28,(J)
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
(L)
(J)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.690-10.699
T=10.690-10.699,(L)
T=10.700-10.709,(L)
T=10.700-10.709
T=10.710-10.720
T=10.710-10.720,(L)
T=10.721-10.730,(L)
T=10.721-10.730
T=10.731-10.740
T=10.731-10.740,(L)
T=11.715,MARK A
T=11.715,MARK B
T=11.715,MARK C
T=11.715,MARK D
T=11.715,MARK E
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.690-10.699
T=10.690-10.699,(L)
T=10.700-10.709,(L)
T=10.700-10.709
T=10.710-10.720,(L)
T=10.710-10.720
T=10.721-10.730,(L)
T=10.721-10.730
T=10.731-10.740,(L)
T=10.731-10.740
T=11.715,MARK A
T=11.715,MARK B
T=11.715,MARK C
T=11.715,MARK D
T=11.715,MARK E
35617RING, CLUTCH DRUM OIL SEAL

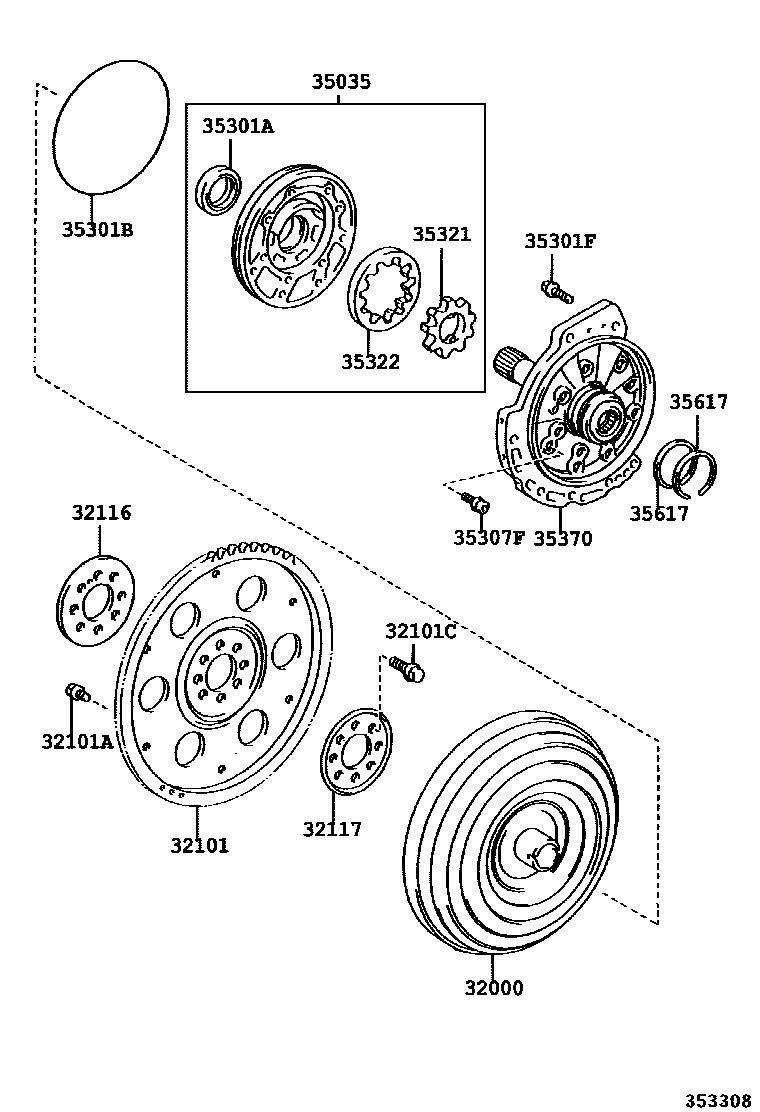

15 parts on this diagram · 1 diagram in section
