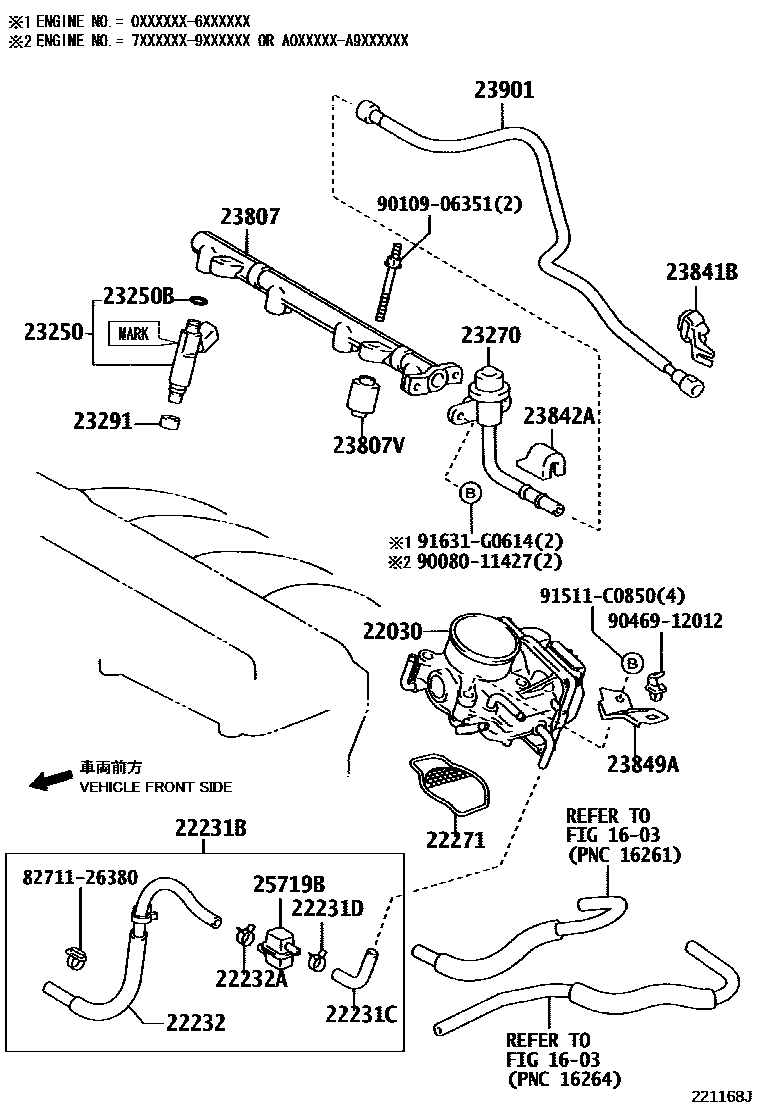

FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1CALIFORNIA SPEC 0006 1*107CALIFORNIA SPEC 0007 1*108CALIFORNIA SPEC 0008 1 0009 1 0010 1 0011 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28030i2AZFE..ACV30..JPP..5F¥83,600200107-200307

main22030-28040i2AZFE..ACV30..JPP..5F¥83,600200303-200307

main22030-28040i2AZFE..ACV30..JPP..4FC¥83,600200212-200406

CALIFORNIA SPEC

main22030-28060i2AZFE..ACV30..JPP¥83,600200307-200601

sub22030-28061¥83,600

22231BHOSE, THROTTLE BODY

main22231-28030i2AZFE..ACV30..JPP¥1,140200510

*107CALIFORNIA SPEC

main22231-28030i2AZFE..ACV30..JPP¥1,140200107-200406

main22231-28030i2AZFE..ACV30..JPP..5F¥1,140200406-200502

CALIFORNIA SPEC

main22231-28030i2AZFE..ACV30..JPP..5FC¥1,140200502

*108CALIFORNIA SPEC

main22231-28090i2AZFE..ACV30..JPP..5FC¥4,310200502-200510

*107CALIFORNIA SPEC

sub22231-28030¥1,140

22231CHOSE, THROTTLE BODY, NO.1

main22231-28040i2AZFE..ACV30..JPP¥810200107-200406

22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main90467-12056i2AZFE..ACV30..JPP¥70200107-200406

22232HOSE, THROTTLE BODY, NO.2

main22232-28010i2AZFE..ACV30..JPP¥520200107-200406

22232ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main90467-12056i2AZFE..ACV30..JPP¥70200107-200406

22271GASKET, THROTTLE BODY

main22271-0A030i1MZFE..MCV30..JPP200107-200205

sub22271-0A031

main22271-0A031i1MZFE..MCV30..JPP200205-200301

main22271-20040i1MZFE..MCV30..JPP..SE¥810200301-200406

main22271-28020i2AZFE..ACV30..JPP¥760200107-200406

23250INJECTOR ASSY, FUEL

main23209-0A020i1MZFE..MCV30..JPP200107-200309

(L)

main23209-0H010i2AZFE..ACV30..JPP..4FC200107-200307

(L)

main23209-0H030i2AZFE..ACV30..JPP..5FC200307-200601

MARK 23250-0H030

main23209-0H050i2AZFE..ACV30..JPP..5FC200412-200601

MARK 23250-0H050

main23209-20030i1MZFE,3MZFE..MCV3#..JPP¥20,100200107-200406

sub23209-20040¥20,100

main23209-28020i2AZFE..ACV30..JPP..5F¥20,100200107-200307

(J)

main23209-28060i2AZFE..ACV30..JPP..5FC¥16,800200212-200601

CALIFORNIA SPEC

main23209-28060i2AZFE..ACV30..JPP..5FC¥16,800200307-200601

MARK 23250-28060

main23209-28080i2AZFE..ACV30..JPP..5F¥16,800200307-200601

MARK 23250-28080

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i3MZFE..MCV31..JPP;1MZFE..MCV30..JPP..(LE,XLE)..5FC¥190200107-200601

main90301-07037i1MZFE,3MZFE..MCV3#..JPP¥140200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i2AZFE..ACV30..JPP¥9,100200107-200601

sub23270-28021¥9,100

main23270-28050i2AZFE..ACV30..JPP..4FC¥9,100200212-200601

CALIFORNIA SPEC

sub23270-28051¥9,100

main23270-62010i1MZFE..MCV30..JPP¥6,400200107-200410

sub23270-62011¥6,400

main23270-62011i1MZFE,3MZFE..MCV3#..JPP¥6,400200410

sub23207-20010¥6,400

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i2AZFE..ACV30..JPP..4FC¥310200212-200601

CALIFORNIA SPEC

main23291-41010i3MZFE..MCV31..JPP;1MZFE..MCV30..JPP..(LE,XLE)..5FC¥340200107-200601

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-0H010i2AZFE..ACV30..JPP..5FC200406

(L)

main23814-20020i1MZFE..MCV30..JPP..SE..5FC¥7,700200107-200401

sub23814-20021¥7,700

main23814-20021i1MZFE,3MZFE..MCV3#..JPP¥7,700200401-200406

main23814-28030i2AZFE..ACV30..JPP¥9,400200107-200312

sub23814-28031¥9,400

main23814-28031i2AZFE..ACV30..JPP..5F¥9,400200406

(J)

sub23814-28060¥7,800

main23814-28031i2AZFE..ACV30..JPP¥9,400200312-200406

sub23814-28060¥7,800

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1MZFE..MCV30..JPP¥160200107-200406

main90561-08053i2AZFE..ACV30..JPP¥180200107-200406

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28010i2AZFE..ACV30..JPP¥370200107-200406

sub23841-21050¥220

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFE..ACV30..JPP¥550200107-200303

main23842-28010i2AZFE..ACV30..JPP¥500200303-200406

23849ASUPPORT, FUEL PIPE

main23849-28030i2AZFE..ACV30..JPP¥360200107-200406

main23849-28050i2AZFE..ACV30..JPP..4FC¥300200212-200406

CALIFORNIA SPEC

23901TUBE SUB-ASSY, FUEL

main23901-28130i2AZFE..ACV30..JPP¥5,900200107-200307

main23901-28170i2AZFE..ACV30..JPP..5FC200212-200406

CALIFORNIA SPEC

main23901-28210i2AZFE..ACV30..JPP¥5,900200307-200406

25719BTANK, VACUUM SURGE

main25719-28010i2AZFE..ACV30..JPP¥1,410200502-200510

*107CALIFORNIA SPEC,NO.2

sub25719-28040¥2,100

main25719-28010i2AZFE..ACV30..JPP..5FC¥1,410200502-200510

NO.2

sub25719-28040¥2,100

main25719-28040i2AZFE..ACV30..JPP¥2,100200510

CALIFORNIA SPEC

main25719-62050i2AZFE..ACV30..JPP..5FC¥1,410200502-200510

*107CALIFORNIA SPEC,NO.1

main25719-62050i2AZFE..ACV30..JPP¥1,410200502-200510

NO.1

main25719-62050i2AZFE..ACV30..JPP¥1,410200502-200510

*108CALIFORNIA SPEC

main25719-62050i2AZFE..ACV30..JPP¥1,410200107-200406

main25719-62050i2AZFE..ACV30..JPP..5F¥1,410200406-200502

CALIFORNIA SPEC

8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26380¥120

9008011427

main90080-11427

9010906351

main90109-06351¥130

9046912012

main90469-12012¥210

91511C0850

main91511-C0850¥110

91631G0614

main91631-G0614¥60

25 parts on this diagram · 9 diagrams in section
