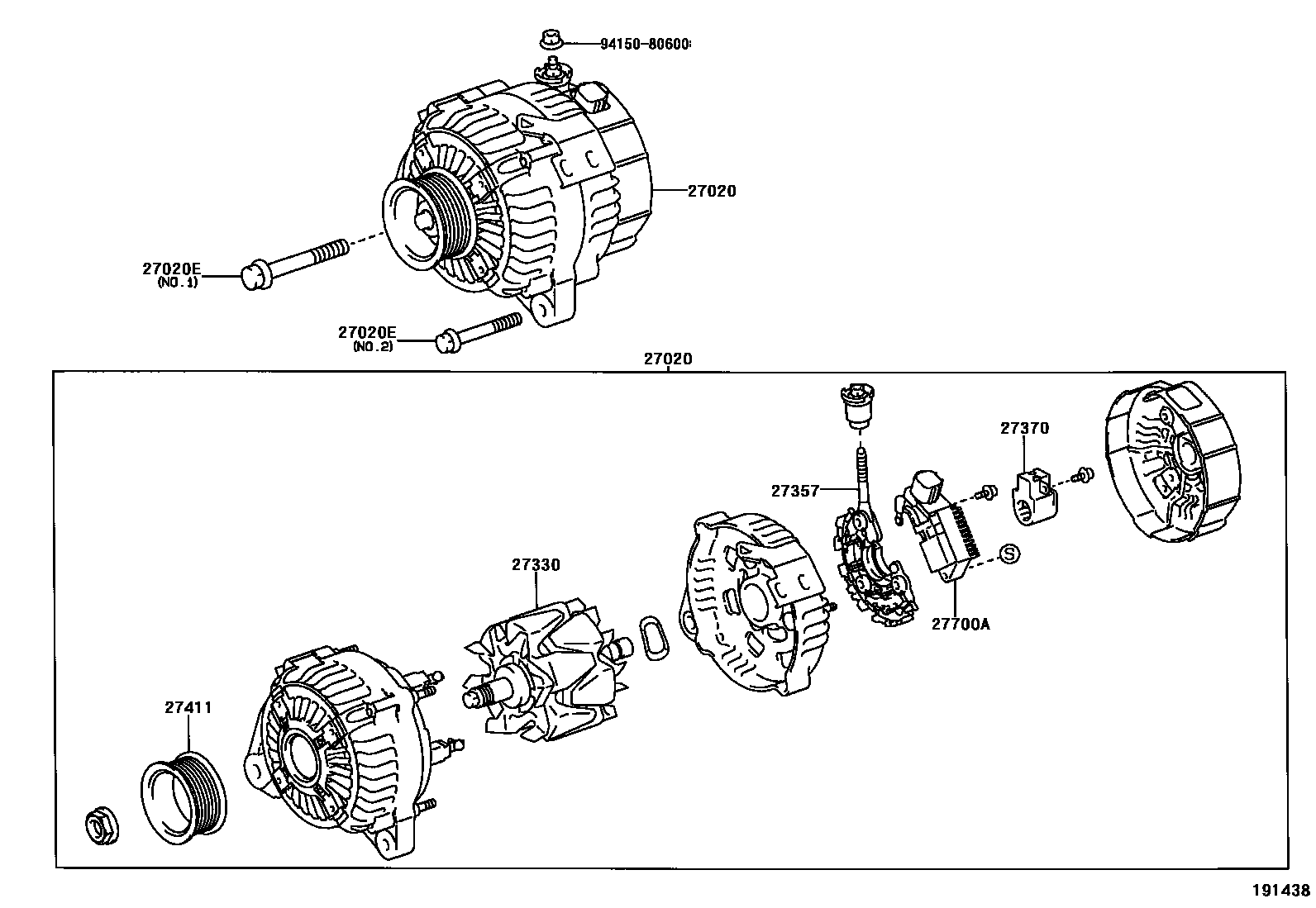

ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 100A 0004 112V 100A

27020ALTERNATOR ASSY

main27060-20230i1MZFE..MCV30..JPP200107-200307

12V 100A

sub27060-20240

main27060-20270i3MZFE..MCV31..JPP200307-200406

12V 100A

sub27060-20210

main27060-20310i3MZFE..MCV31..JPP200308-200406

12V 100A

main27060-28170i2AZFE..ACV30..JPP200107-200307

12V 80A

sub27060-28180

main27060-28270i2AZFE..ACV30..JPP200307-200406

12V 100A

sub27060-28260

27020EBOLT(FOR ALTERNATOR)

main91511-J0840i2AZFE..ACV30..JPP200307-200406

NO.2

main91511-J0840i2AZFE..ACV30..JPP200107-200307

NO.1

main91512-81085i2AZFE..ACV30..JPP200307-200406

NO.1

main91512-81085i2AZFE..ACV30..JPP200107-200307

NO.2

27330ROTOR ASSY, ALTERNATOR

main27330-23130i3MZFE..MCV31..JPP200308-200601

main27330-28050i1MZFE..MCV30..JPP200205-200307

main27330-30070i3MZFE..MCV31..JPP200307-200601

main27330-74550i2AZFE..ACV30..JPP200205-200307

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i2AZFE..ACV30..JPP200205-200307

main27357-70450i1MZFE..MCV30..JPP200205-200307

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..JPP200307-200601

main27370-75060i2AZFE,1MZFE..ACV30,MCV30..JPP200205-200307

27411PULLEY, ALTERNATOR

main27411-28060i2AZFE..ACV30..JPP200307-200601

main27411-28090i2AZFE..ACV30..JPP200205-200307

main27411-46080i1MZFE,3MZFE..MCV3#..JPP200205-200601

27700AREGULATOR ASSY, GENERATOR

main27700-20050i2AZFE,1MZFE..ACV30,MCV30..JPP200107-200307

9415080600

main94150-80600

8 parts on this diagram · 4 diagrams in section
