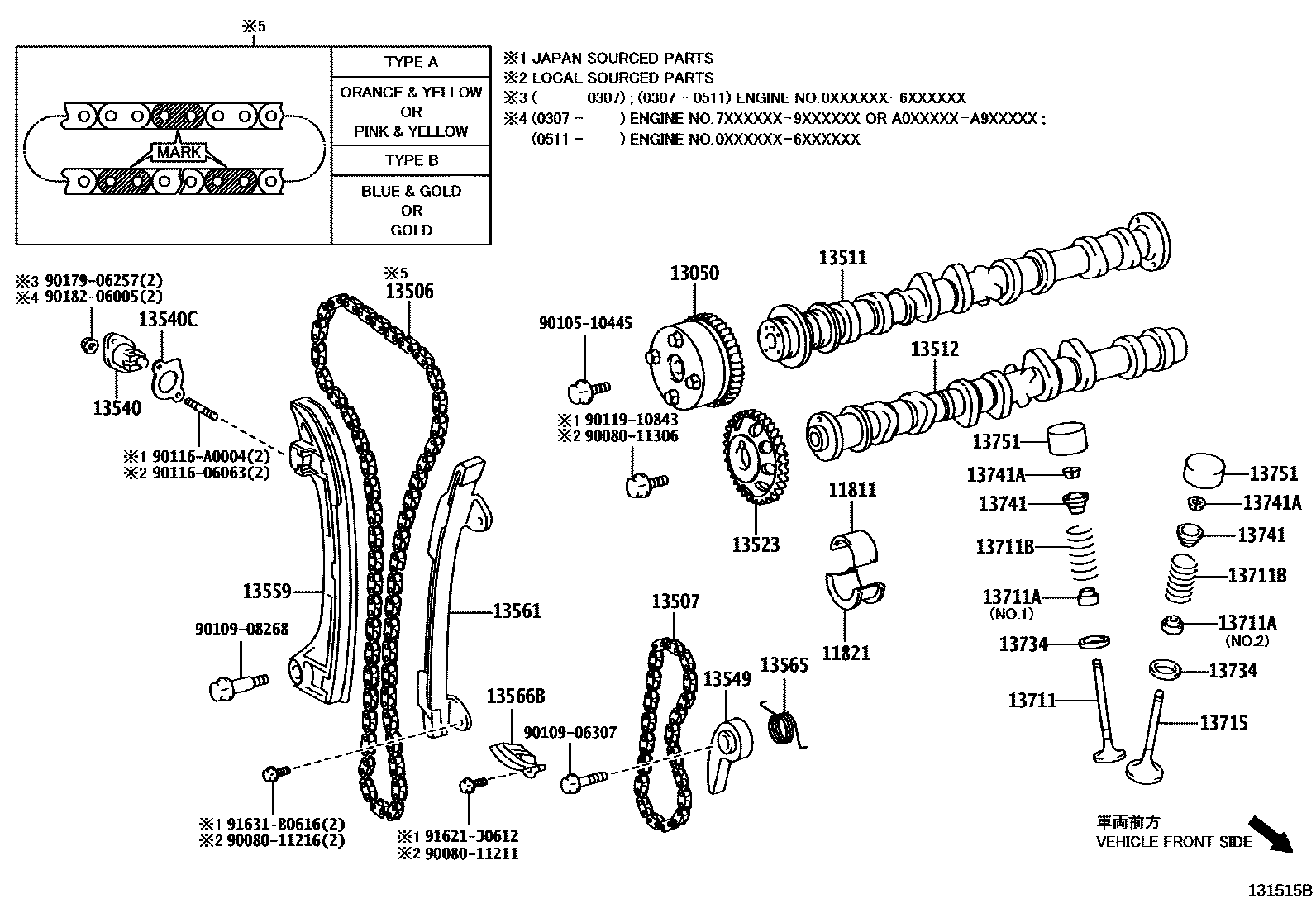

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1
MARK 2
MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1
MARK 2
MARK 3
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(L)
(L)
(L)
(L)
(J)
(J)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(L)
CALIFORNIA SPEC
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
(J)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
(L)
(L)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1,(L)
NO.2,(L)
NO.1,(J)
NO.1,(J)
NO.1
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(L)
*107
(J)
13715VALVE, EXHAUST
(L)
(L)
(J)
(J)
13734SEAT, VALVE SPRING
(L),*108
(J),*108
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06,*107
T=5.08,*107
T=5.10,*107
T=5.12,*107
T=5.14,*107
T=5.16,*107
T=5.18,*107
T=5.20,*107
T=5.22,*107
T=5.24,*107
T=5.26,*107
T=5.28,*107
T=5.30,*107
T=5.32,*107
T=5.34,*107
T=5.36,*107
T=5.38,*107
T=5.40,*107
T=5.42,*107
T=5.44,*107
T=5.46,*107
T=5.48,*107
T=5.50,*107
T=5.52,*107
T=5.54,*107
T=5.56,*107
T=5.58,*107
T=5.60,*107
T=5.62,*107
T=5.64,*107
T=5.66,*107
T=5.68,*107
T=5.70,*107
T=5.72,*107
T=5.74,*107
9008011211
main90080-11211
9008011216
main90080-11216
9008011306
main90080-11306
9010510445
main90105-10445
9010906307
main90109-06307
9010908268
main90109-08268
9011606063
main90116-06063
90116A0004
main90116-A0004
9011910843
main90119-10843
9017906257
main90179-06257
9018206005
main90182-06005
91621J0612
main91621-J0612
91631B0616
main91631-B0616
36 parts on this diagram · 4 diagrams in section
