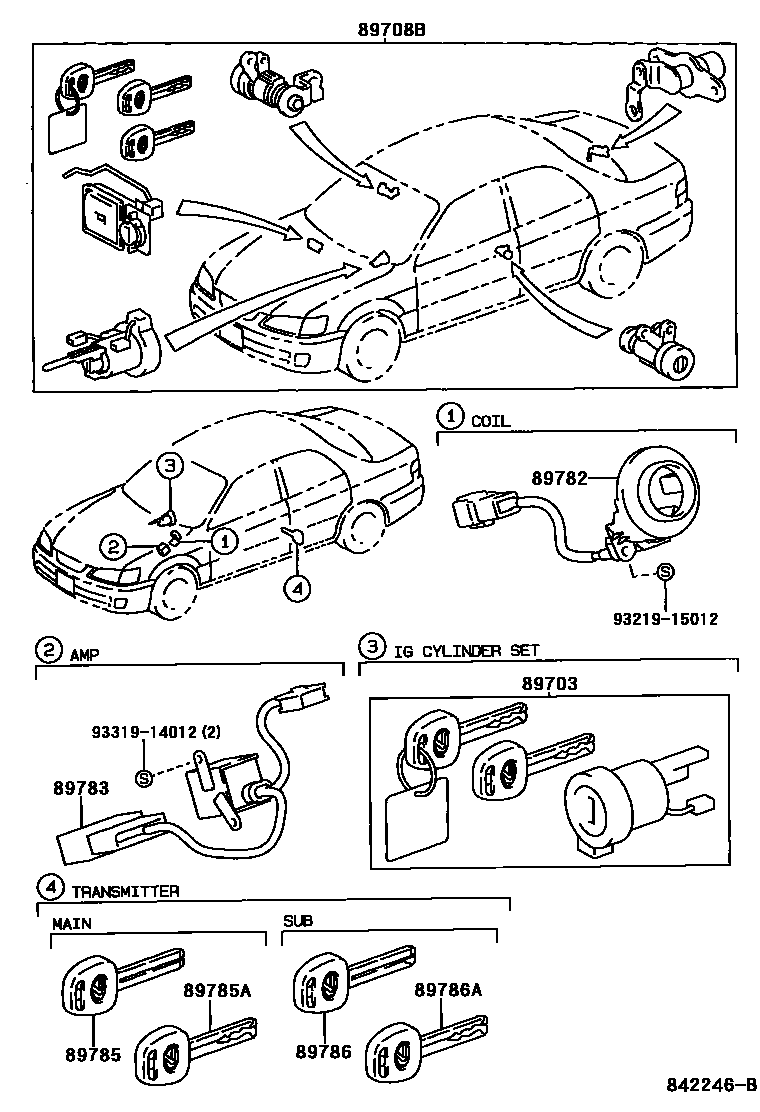

ANTI-THEFT DEVICE

0001 1 0002 1 0003 1BRAZIL SPEC 0004 1BRAZIL SPEC 0005 1THEFT WARNING SYSTEM

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-33040iMCV20199708-199908

main89703-33060iMCV20..USA199808-199908

BRAZIL SPEC

89708BCYLINDER & TRANSMITTER SET, WIRELESS DOOR LOCK

main89708-33200iMCV20199708-199908

89782COIL, TRANSPONDER KEY

main89782-33020iMCV20199708-199908

main89782-33030iMCV20199908

89783AMPLIFIER, TRANSPONDER KEY

main89783-33010iMCV20..USA199808-199908

BRAZIL SPEC

main89783-33020iMCV20199708-199908

main89783-33030iMCV20199908

main89783-33050iMCV20..USA199908

BRAZIL SPEC

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-30020iMCV20199708-199908

main89785-30020iMCV20..USA199908

BRAZIL SPEC

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-50010iMCV20199708-199908

main89785-50010iMCV20..USA199908

BRAZIL SPEC

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-30020iMCV20199708

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50010iMCV20199708

9321915012

main93219-15012

9331914012

main93319-14012

10 parts on this diagram · 5 diagrams in section
