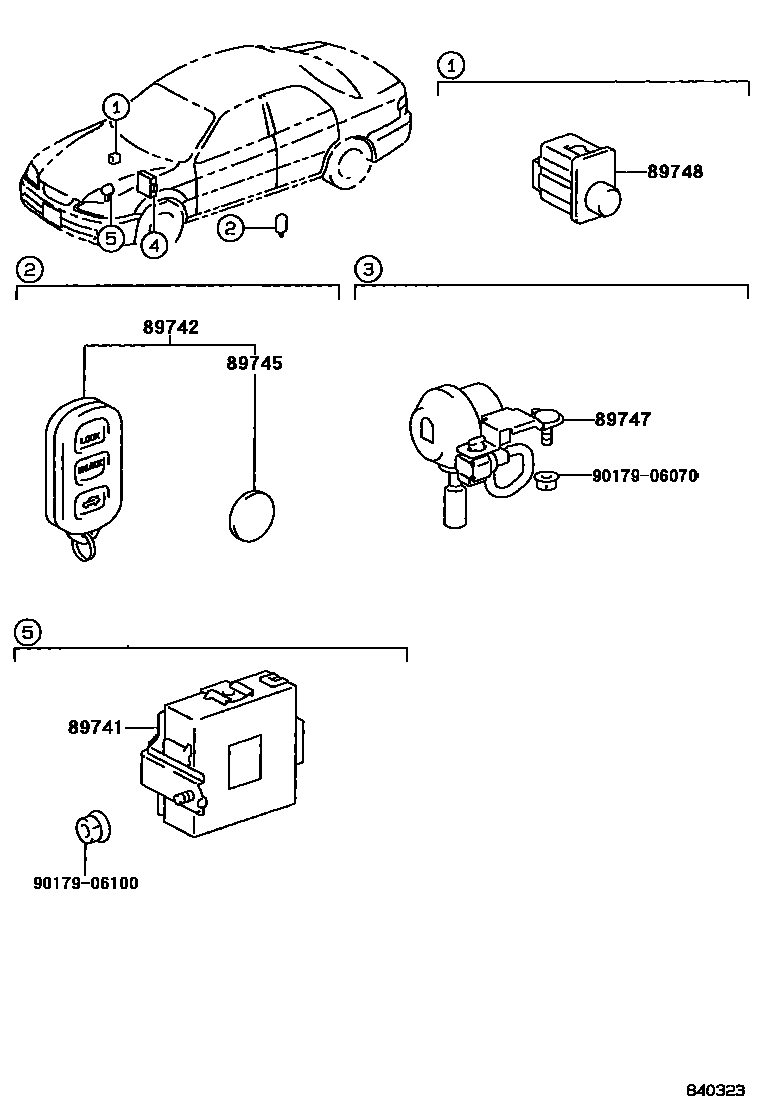

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1BRAZIL SPEC

89741RECEIVER, DOOR CONTROL

main89741-33150iMCV20199608-199811

sub89741-33151

main89741-33151iMCV20199811-199908

main89741-33280iMCV20199908

main89741-33310iMCV20..USA199908

BRAZIL SPEC

89742TRANSMITTER, DOOR CONTROL

main89742-33100iMCV20199608-199908

89745BATTERY, TRANSMITTER

main89745-40010iMCV20199908

main89745-50010iMCV20199608-199908

sub89745-71010

89747BUZZER, WIRELESS DOOR LOCK

main89747-33020iMCV20199608

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-33020iMCV20199608

9017906070

main90179-06070

9017906100

main90179-06100

7 parts on this diagram · 3 diagrams in section
