ELECTRONIC MODULATED SUSPENSION

89243COMPUTER, ABSORBER CONTROL

main89243-33040iMCV20199608-199703

sub89243-33041

main89243-33041iMCV20199703-199908

sub89243-33042

main89243-33042iMCV20199908

89244BWIRE, ABSORBER CONTROL, FRONT

main89244-33030iMCV20199608

89249SWITCH, ABSORBER CONTROL

main89249-33020iMCV20199608

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10700iMCV20199608

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10770iMCV20199608

8761633010CLAMP, COOLING UNIT CASE

main87616-33010

8761641010CLAMP, COOLING UNIT CASE

main87616-41010

9017906161

main90179-06161

9046706152

main90467-06152

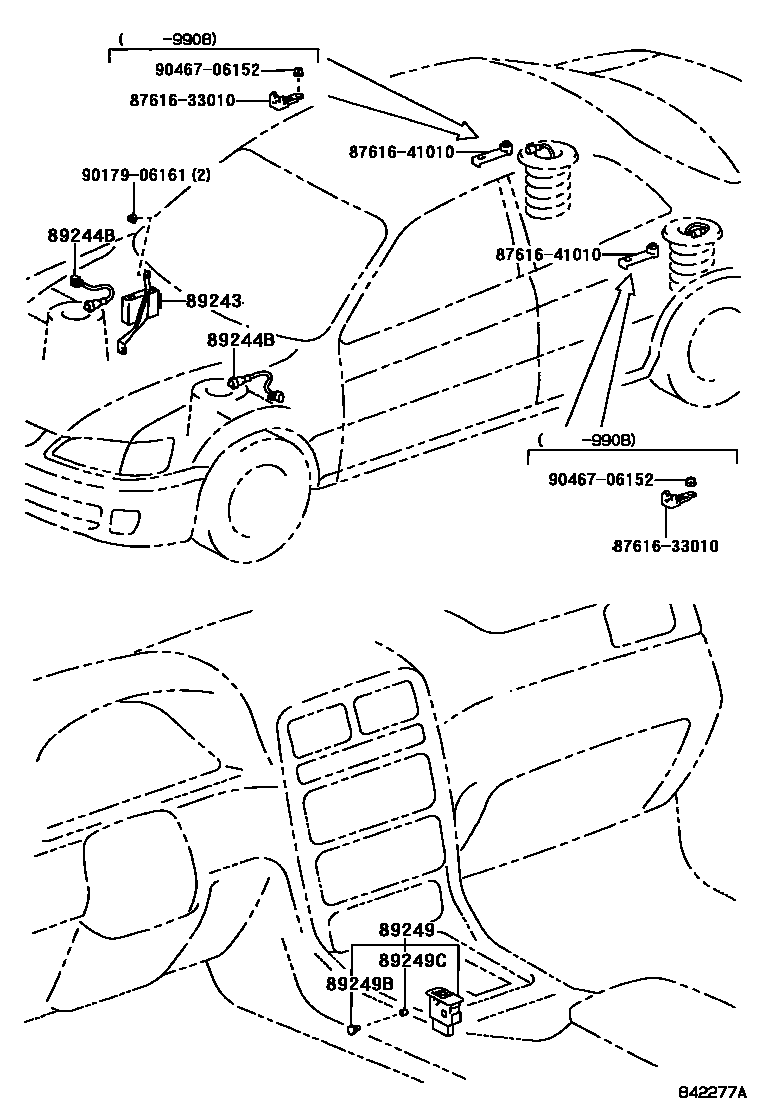

9 parts on this diagram · 1 diagram in section
