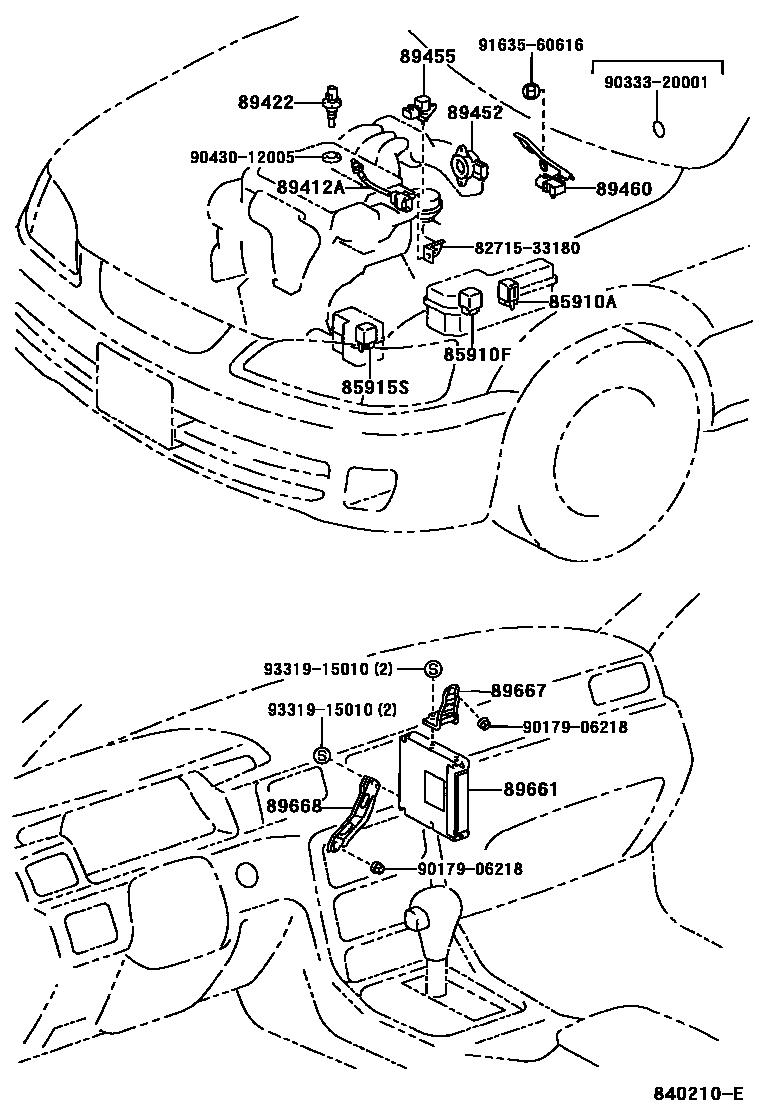

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89412ASENSOR, E.G.R GAS TEMPERATURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89455SENSOR, EGR VALVE POSITION
89460SENSOR ASSY, VAPOR PRESSURE
PART NUMBER LABEL=89460-07030
PART NUMBER LABEL=89460-33010
DENSO
89661COMPUTER, ENGINE CONTROL
(L)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
CALIFORNIA SPEC
CALIFORNIA SPEC & W(TRACTION CONTROL)
sub89661-0W101
sub89661-0W102
sub89661-0W103
sub89661-0W104
DENSO USA
(J)
BRAZIL SPEC
BRAZIL SPEC
sub89661-3T311
DENSO
W(TRACTION CONTROL),DENSO
CALIFORNIA SPEC,DENSO
CALIFORNIA SPEC & W(TRACTION CONTROL),DENSO
DENSO
89667BRACKET, ENGINE CONTROL COMPUTER
CALIFORNIA SPEC OR W(TRACTION CONTROL),(L)
(L)
(L)
(L)
BRAZIL SPEC,(J)
(J)
(J)
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
CALIFORNIA SPEC OR W(TRACTION CONTROL),(L)
(L)
(L)
(L)
BRAZIL SPEC,(J)
(J)
(J)
8271533180BRACKET,WIRING HARNESS CLAMP
main82715-33180
9017906218
main90179-06218
9033320001
main90333-20001
9043012005
main90430-12005
9163560616
main91635-60616
9331915010
main93319-15010
17 parts on this diagram · 1 diagram in section
