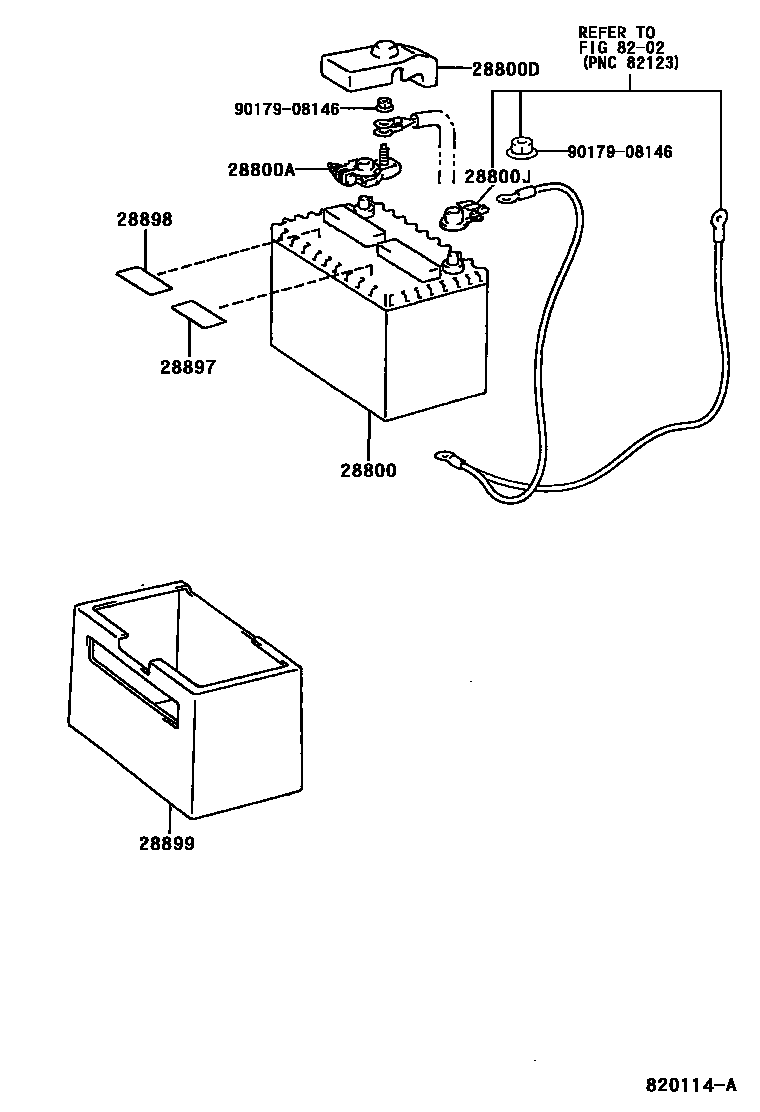

BATTERY & BATTERY CABLE

28800BATTERY

main28800-74141i1MZFE..MCV20199608-199610

80D26L

sub28800-74142

main28800-74142i1MZFE..MCV20199610

80D26L

sub28800-64132

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1MZFE..MCV20199608

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1MZFE..MCV20199608

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1MZFE..MCV20199608

28897PLATE, BATTERY CAUTION

main28897-38010i1MZFE..MCV20..CND199608-199610

main28897-46020i1MZFE..MCV20..CND199610

28898PLATE, BATTERY

main28898-20010i1MZFE..MCV20..USA199610

main28898-62010i1MZFE..MCV20..USA199608-199610

sub28898-20020

28899INSULATOR, BATTERY

main28899-64110i1MZFE..MCV20199608-199908

8202

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
