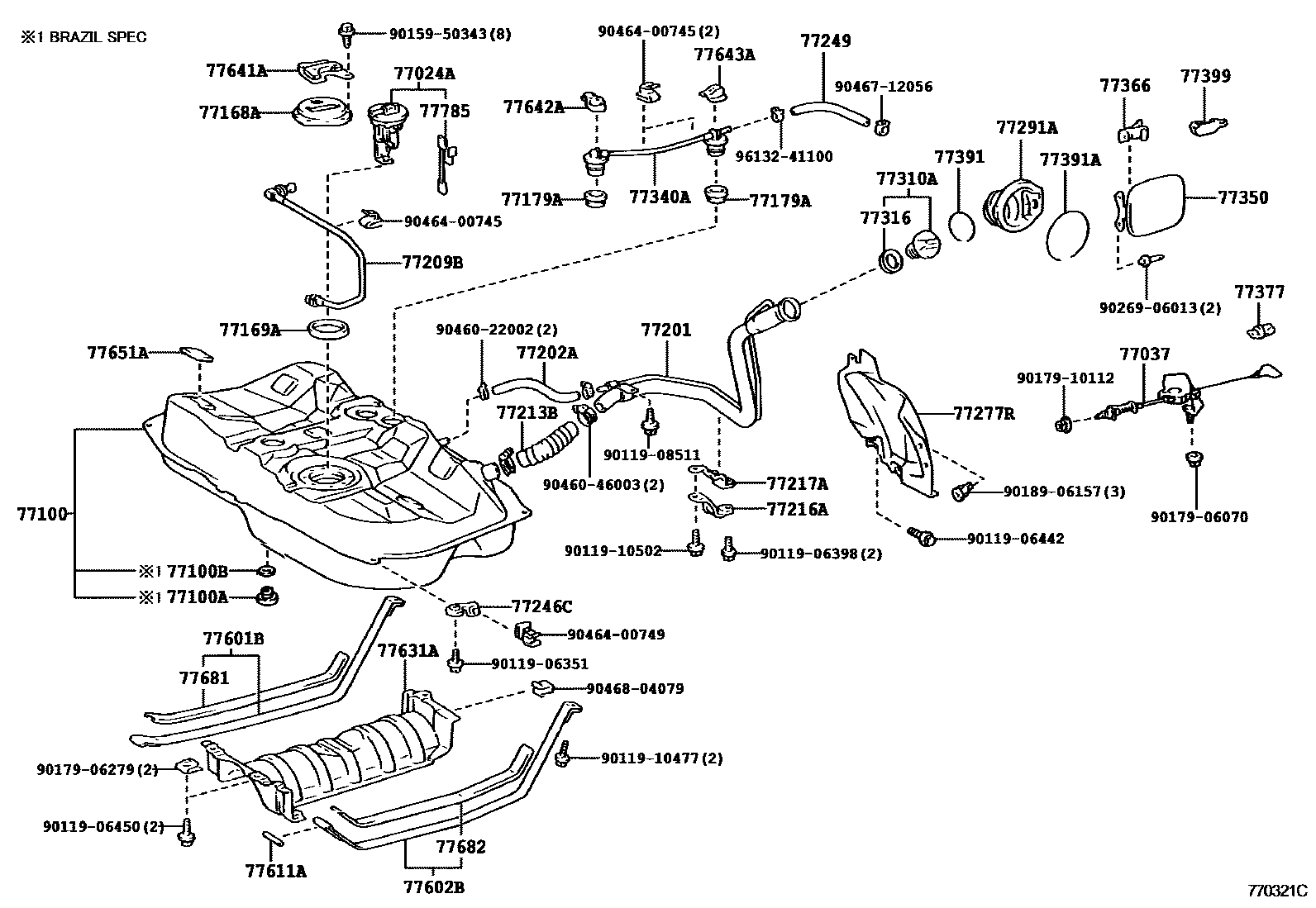

FUEL TANK & TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100APLUG(FOR FUEL TANK)
BRAZIL SPEC
77100BGASKET(FOR FUEL TANK)
BRAZIL SPEC
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
BRAZIL SPEC
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=240
L=240,BRAZIL SPEC
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
L=224,BRAZIL SPEC
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
BRAZIL SPEC
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
BRAZIL SPEC
77246CSUPPORT, FUEL MAIN TUBE
77249HOSE, FUEL EMISSION
77277RPROTECTOR, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
BRAZIL SPEC
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77399HANGER, FUEL TANK CAP
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
sub77642-33040
77643APROTECTOR, FUEL TANK, NO.3
sub77643-33030
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
9011906351
main90119-06351
9011906398
main90119-06398
9011906442
main90119-06442
9011906450
main90119-06450
9011908511
main90119-08511
9011910477
main90119-10477
9011910502
main90119-10502
9015950343
main90159-50343
9017906070
main90179-06070
9017906279
main90179-06279
9017910112
main90179-10112
9018906157
main90189-06157
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9046400745
main90464-00745
9046400749
main90464-00749
9046712056
main90467-12056
9046804079
main90468-04079
9613241100
main96132-41100
58 parts on this diagram · 4 diagrams in section
