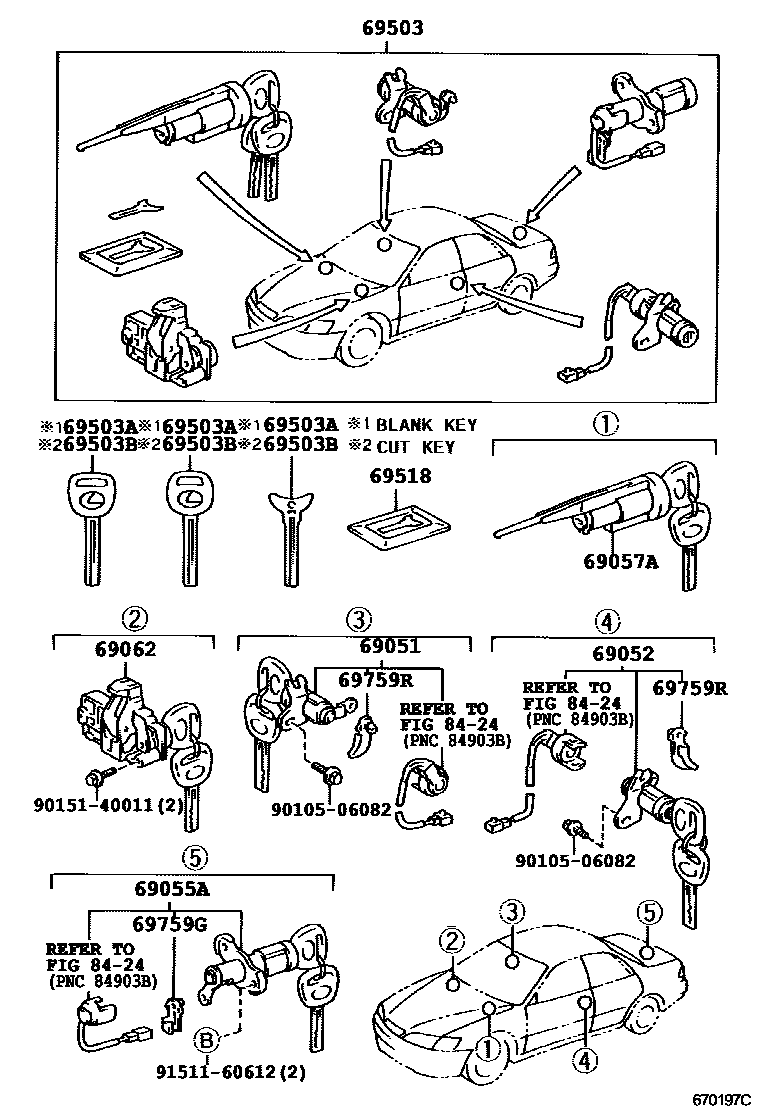

LOCK CYLINDER SET

0001 1LHD 0002 1LHD

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-33170iMCV20199608

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33180iMCV20199608

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33220iMCV20199608

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33150iMCV20199608-199808

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33120iMCV20199608

69503CYLINDER SET, LOCK

main69005-33510iMCV20199608-199808

69503AKEY, BLANK

main90999-00173iMCV20..USA199608-199808

MASTER KEY,CARD TYPE

sub90999-00178

main90999-00220iMCV20..USA199608-199808

MASTER KEY,W(*68)

main90999-00221iMCV20..USA199608-199808

SUB KEY,W(*68)

69503BKEY, CUT

main69515-50040iMCV20199608-199808

MASTER KEY,CARD

sub69515-60030

main69515-50110iMCV20..USA199608-199808

MASTER KEY,W(*68)

main69516-50060iMCV20..USA199608-199808

SUB KEY,W(*68)

69518CARD, SPARE KEY

main69518-50011iMCV20199608

sub69518-50020

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iMCV20199608-199908

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090iMCV20199608-199908

RH

main69759-32100iMCV20199608-199908

LH

8424

9010506082

main90105-06082

9015140011

main90151-40011

9151160612

main91511-60612

15 parts on this diagram · 2 diagrams in section
