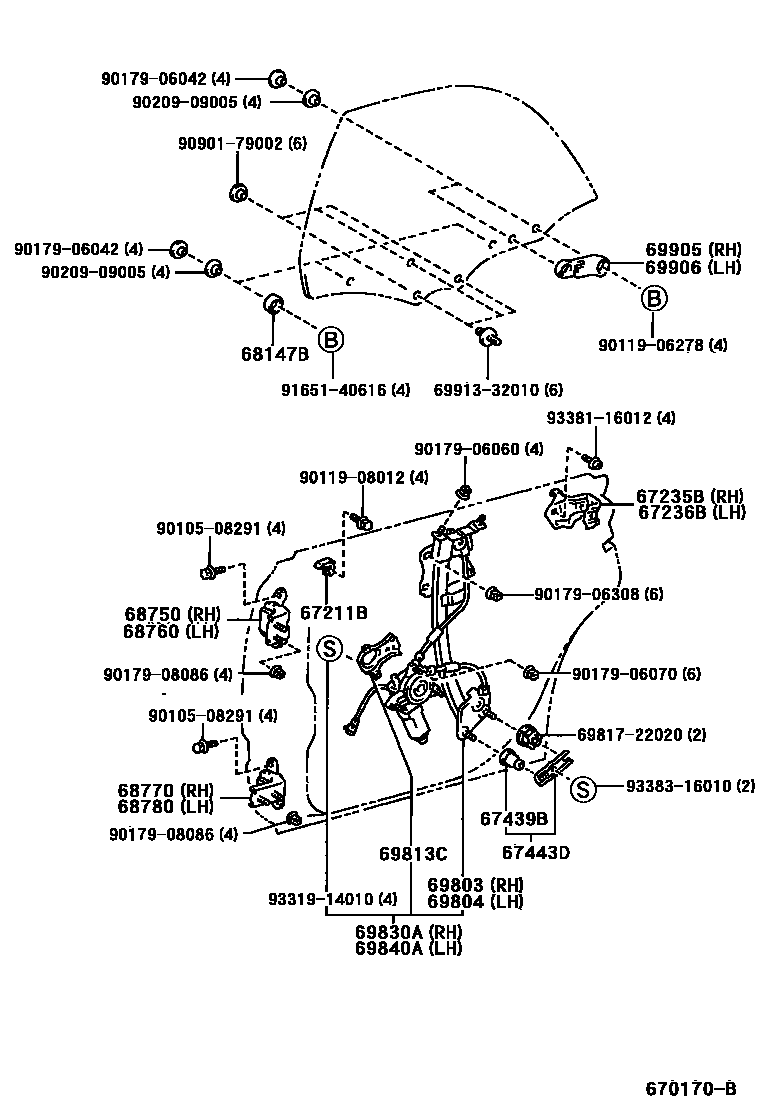

REAR DOOR WINDOW REGULATOR & HINGE
67211BSTOP, REAR DOOR WINDOW, UPPER
67439BSNAP, REAR DOOR WINDOW GUIDE
67443DPLATE, REAR DOOR WINDOW GUIDE, LOWER
68147BSTOP, REAR DOOR GLASS, UPPER
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69830AREGULATOR ASSY, REAR DOOR WINDOW, RH
69840AREGULATOR ASSY, REAR DOOR WINDOW, LH
69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH
6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH
main69817-22020
6991332010BOLT, FRONT DOOR GLASS SETTING
main69913-32010
9010508291
main90105-08291
9011906278
main90119-06278
9011908012
main90119-08012
9017906042
main90179-06042
9017906060
main90179-06060
9017906070
main90179-06070
9017906308
main90179-06308
9017908086
main90179-08086
9020909005
main90209-09005
9090179002
main90901-79002
9165140616
main91651-40616
9331914010
main93319-14010
9338116012
main93381-16012
9338316010
main93383-16010
33 parts on this diagram · 1 diagram in section
