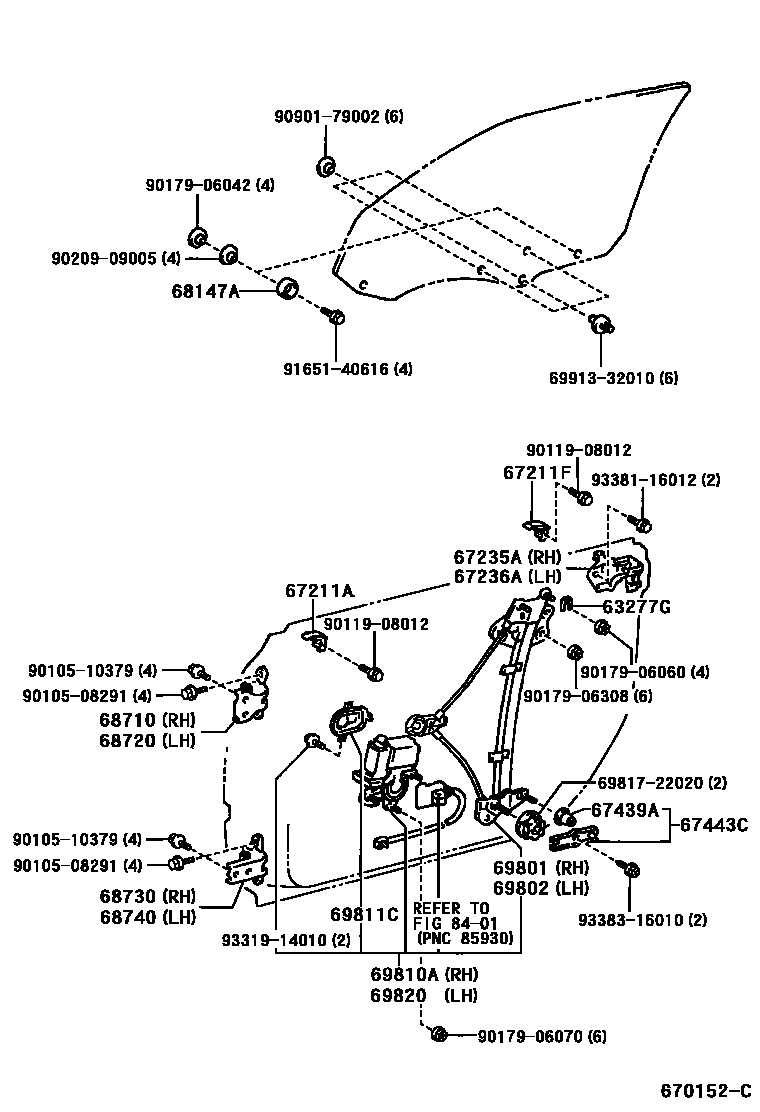

FRONT DOOR WINDOW REGULATOR & HINGE

63277GSHIM, WINDOW REGULATOR

main63277-20030iMCV20199608

T=1.0

main63277-20050iMCV20199608

T=2.0

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-33010iMCV20199608

67211FSTOP, FRONT DOOR WINDOW, UPR

main67211-33020iMCV20199608

67235ASTABILIZER, DOOR GLASS FEMALE, RH

main67235-33010iMCV20199608-199709

sub67235-33011

main67235-33011iMCV20199709

67236ASTABILIZER, DOOR GLASS FEMALE, LH

main67236-33010iMCV20199608-199709

sub67236-33011

main67236-33011iMCV20199709

67439ASNAP, FRONT DOOR WINDOW GUIDE

main67439-12020iMCV20199608

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-20080iMCV20199608

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-33010iMCV20199608

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-33020iMCV20199608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-33020iMCV20199608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33010iMCV20199608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33010iMCV20199608

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33020iMCV20199608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33020iMCV20199608

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-33040iMCV20199608-199808

main69810-33070iMCV20199808

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-33020iMCV20199608

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-33040iMCV20199608-199808

main69820-33070iMCV20199808

8401

6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-22020

6991332010BOLT, FRONT DOOR GLASS SETTING

main69913-32010

9010508291

main90105-08291

9010510379

main90105-10379

9011908012

main90119-08012

9017906042

main90179-06042

9017906060

main90179-06060

9017906070

main90179-06070

9017906308

main90179-06308

9020909005

main90209-09005

9090179002

main90901-79002

9165140616

main91651-40616

9331914010

main93319-14010

9338116012

main93381-16012

9338316010

main93383-16010

33 parts on this diagram · 1 diagram in section
