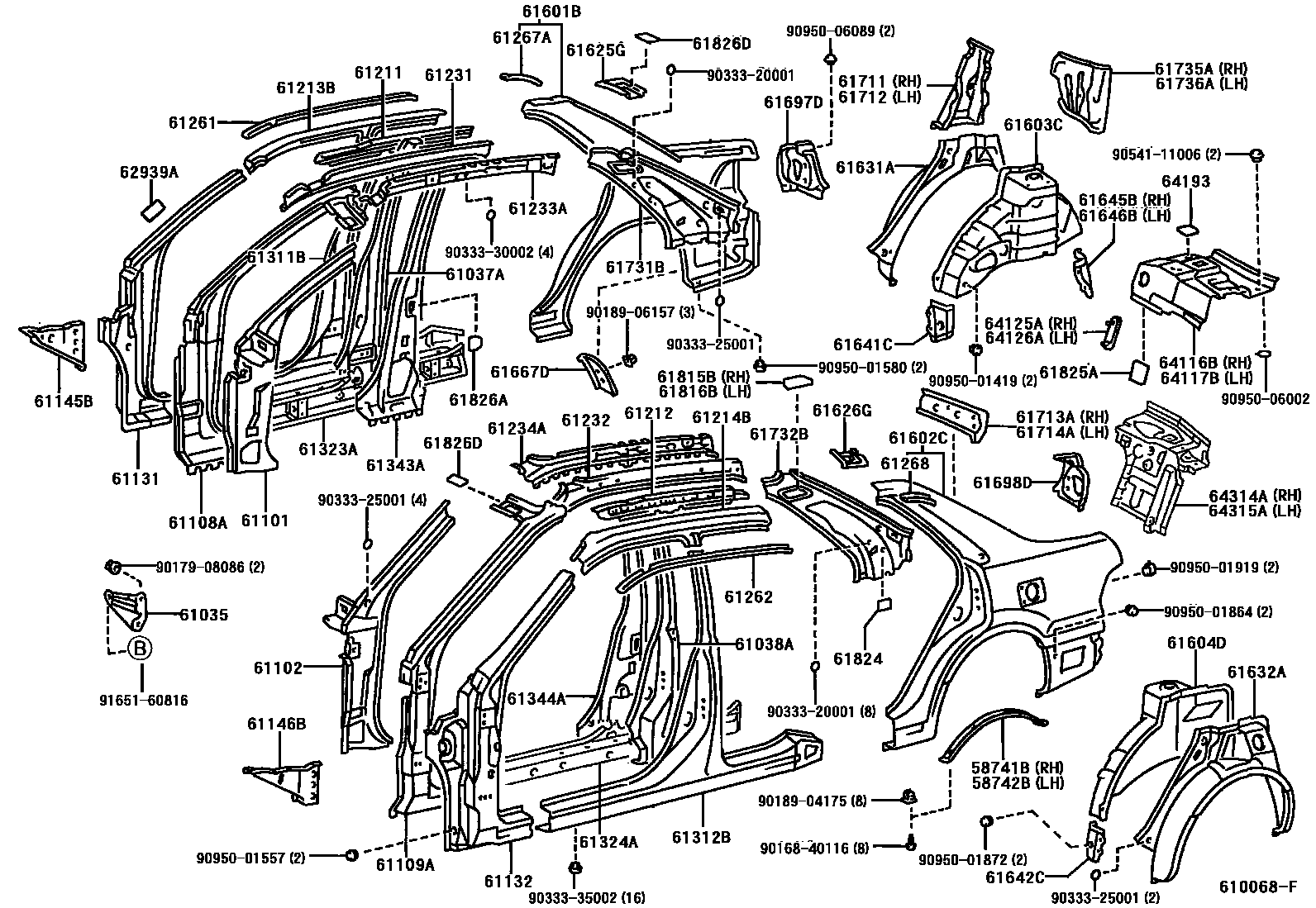

SIDE MEMBER

58741BPROTECTOR, QUARTER PANEL, RH

main58741-33020iMCV20199608

58742BPROTECTOR, QUARTER PANEL, LH

main58742-33020iMCV20199608

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-33020iMCV20199608

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-33110iMCV20199608-199708

sub61037-33120

main61037-33120iMCV20199708-200107

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-33110iMCV20199608-199708

sub61038-33120

main61038-33120iMCV20199708-200107

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-33040iMCV20199608-199808

sub61101-33041

main61101-33041iMCV20199808

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-33050iMCV20199608

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-33905iMCV20199608-200107

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-33905iMCV20199608-200107

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-33030iMCV20199608

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-33030iMCV20199608

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-33020iMCV20199608-200107

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-33020iMCV20199608-200107

61211RAIL, ROOF SIDE, OUTER RH

main61211-33010iMCV20199608-200107

61212RAIL, ROOF SIDE, OUTER LH

main61212-33010iMCV20199608-200107

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-33030iMCV20199608

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-33030iMCV20199608

61231RAIL, ROOF SIDE, INNER RH

main61231-33040iMCV20199608-199808

sub61231-33041

main61231-33041iMCV20199808

61232RAIL, ROOF SIDE, INNER LH

main61232-33040iMCV20199608-199808

sub61232-33041

main61232-33041iMCV20199808

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-33030iMCV20199608-199808

main61233-33031iMCV20199808

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-33030iMCV20199608-199808

main61234-33031iMCV20199808

61261CHANNEL, ROOF DRIP, RH

main61261-33020iMCV20199608-200107

61262CHANNEL, ROOF DRIP, LH

main61262-33020iMCV20199608-200107

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-33030iMCV20199608

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-33030iMCV20199608

61311BPILLAR, CENTER BODY, OUTER RH

main61311-33020iMCV20199608

61312BPILLAR, CENTER BODY, OUTER LH

main61312-33020iMCV20199608

61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH

main61305-33010iMCV20199608-200107

61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH

main61306-33010iMCV20199608-200107

61343APILLAR, CENTER BODY, INNER RH

main61343-33901iMCV20199608-199802

sub61343-33902

main61343-33902iMCV20199802

61344APILLAR, CENTER BODY, INNER LH

main61344-33901iMCV20199608-199802

sub61344-33902

main61344-33902iMCV20199802

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-33913iMCV20199608

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-33906iMCV20199608

61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61607-33902iMCV20199608

61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH

main61608-33902iMCV20199608

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-33030iMCV20199608

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-33030iMCV20199608

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-33902iMCV20199608

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-33902iMCV20199608

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-33010iMCV20199608

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-33010iMCV20199608

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-33010iMCV20199608

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-33010iMCV20199608

61667DSEAL, QUARTER PANEL

main61667-33040iMCV20199608

61697DHOUSING, QUARTER PANEL END, RH

main61697-33901iMCV20199608

61698DHOUSING, QUARTER PANEL END, LH

main61698-33901iMCV20199608

61711PANEL, ROOF SIDE, OUTER RH

main61711-33030iMCV20199608

61712PANEL, ROOF SIDE, OUTER LH

main61712-33030iMCV20199608

61713AEXTENSION, ROOF SIDE, OUTER RH

main61713-33010iMCV20199608

61714AEXTENSION, ROOF SIDE, OUTER LH

main61714-33010iMCV20199608

61731BPANEL, ROOF SIDE, INNER RH

main61731-33070iMCV20199608-199808

sub61731-33071

main61731-33071iMCV20199808

61732BPANEL, ROOF SIDE, INNER LH

main61732-33060iMCV20199608-199808

sub61732-33061

main61732-33061iMCV20199808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-33020iMCV20199608

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-33020iMCV20199608

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-33020iMCV20199608

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-33020iMCV20199608

61824PLATE, NOISE CONTROL, NO.1

main61824-20100iMCV20199608

61825APLATE, NOISE CONTROL, NO.2

main61824-30030iMCV20199608

61826APLATE, NOISE CONTROL, NO.3

main61825-12010iMCV20199702-199908

main61826-33010iMCV20199608-199702

sub61825-12010

61826DPLATE, NOISE CONTROL, NO.3

main61825-12010iMCV20199608-199908

62939ASILENCER, QUARTER VENT

main62939-32020iMCV20199608-199908

64116BREINFORCEMENT, UPPER BACK, RH

main64116-33040iMCV20199608

64117BREINFORCEMENT, UPPER BACK, LH

main64117-33040iMCV20199608

64125ABRACKET, UPPER BACK PANEL, RH

main64317-33050iMCV20199608

64126ABRACKET, UPPER BACK PANEL, LH

main64317-33050iMCV20199608

64193PAD, BACK PANEL SILENCER

main64193-33010iMCV20199608

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64304-33900iMCV20199908

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64305-33900iMCV20199908

9016840116

main90168-40116

9017908086

main90179-08086

9018904175

main90189-04175

9018906157

main90189-06157

9033320001

main90333-20001

9033325001

main90333-25001

9033330002

main90333-30002

9033335002

main90333-35002

9054111006

main90541-11006

9095001419

main90950-01419

9095001557

main90950-01557

9095001580

main90950-01580

9095001864

main90950-01864

9095001872

main90950-01872

9095001919

main90950-01919

9095006002

main90950-06002

9095006089

main90950-06089

9165160816

main91651-60816

86 parts on this diagram · 1 diagram in section
