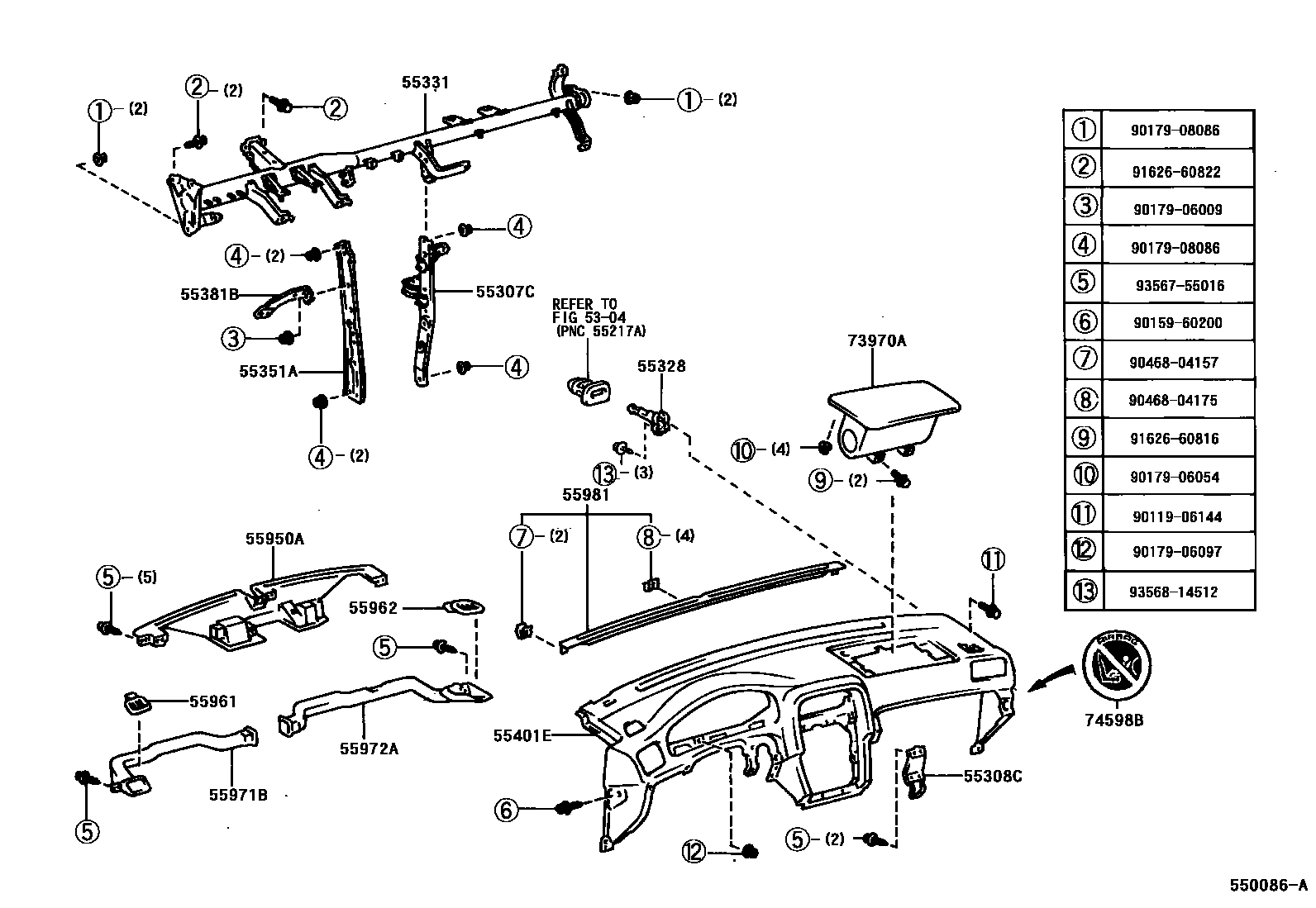

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33090iMCV20¥2,100199608

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-33070iMCV20¥470199608

55328PIN, INSTRUMENT PANEL, NO.1

main55328-24010iMCV20¥330199608

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33150iMCV20¥21,900199608

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-33050iMCV20¥1,680199608

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-33050iMCV20¥810199608

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33140-C0iMCV20199608-200107

BLACK,TRIM2#

main55401-33140-E0iMCV20199608-200107

OAK,TRIM0#

main55401-33140-G0iMCV20199608-200107

DK.SAGE,TRIM6#

55950ANOZZLE ASSY, DEFROSTER

main55950-33060iMCV20¥5,000199608-199807

sub55950-33061¥5,100

main55950-33061iMCV20¥5,100199807

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-33040-C0iMCV20199608-200107

BLACK,TRIM2#

sub55961-33040¥1,440

main55961-33040-E0iMCV20199608-200107

OAK,TRIM0#

sub55961-33040¥1,440

main55961-33040-G0iMCV20199608-200107

DK.SAGE,TRIM6#

sub55961-33040¥1,440

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-33060-C0iMCV20199608-200107

BLACK,TRIM2#

sub55962-33060¥1,320

main55962-33060-E0iMCV20199608-200107

OAK,TRIM0#

sub55962-33060¥1,320

main55962-33060-G0iMCV20199608-200107

DK.SAGE,TRIM6#

sub55962-33060¥1,320

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-33050iMCV20¥1,610199608

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-33050iMCV20¥1,610199608

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33050iMCV20¥3,400199608

sub55981-33060¥3,400

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0W061-C0iMCV20199608-199609

BLACK,TRIM2#

sub73970-33040¥132,000

main73970-0W061-E0iMCV20199608-199609

OAK,TRIM0#

sub73970-33040¥132,000

main73970-0W061-G0iMCV20199608-199609

DK.SAGE,TRIM6#

sub73970-33040¥132,000

main73970-33040-C0iMCV20199609-199708

BLACK,TRIM2#

main73970-33040-E0iMCV20199609-199708

OAK,TRIM0#

main73970-33040-G0iMCV20199609-199708

DK.SAGE,TRIM6#

main73970-33060-C0iMCV20199708-199808

BLACK,TRIM2#

main73970-33060-E0iMCV20199708-199808

OAK,TRIM0#

main73970-33060-G0iMCV20199708-199808

DK.SAGE,TRIM6#

main73970-33062-C0iMCV20199808-199908

BLACK,TRIM2#

main73970-33062-E0iMCV20199808-199908

OAK,TRIM0#

main73970-33062-G0iMCV20199808-199908

DK.SAGE,TRIM6#

main73970-33063-C0iMCV20199908-200107

BLACK,TRIM2#

sub73970-33063¥132,000

main73970-33063-E0iMCV20199908-200107

OAK,TRIM0#

sub73970-33063¥132,000

main73970-33063-G0iMCV20199908-200107

DK.SAGE,TRIM6#

sub73970-33063¥132,000

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iMCV20¥90199608-199708

9011906144

main90119-06144¥80

9015960200

main90159-60200¥100

9017906009

main90179-06009¥120

9017906054

main90179-06054¥100

9017906097

main90179-06097¥320

9017908086

main90179-08086¥160

9046804157

main90468-04157¥80

9046804175

main90468-04175¥40

9162660816

main91626-60816¥130

9162660822

main91626-60822¥130

9356755016

main93567-55016¥110

9356814512

main93568-14512¥80

27 parts on this diagram · 2 diagrams in section
