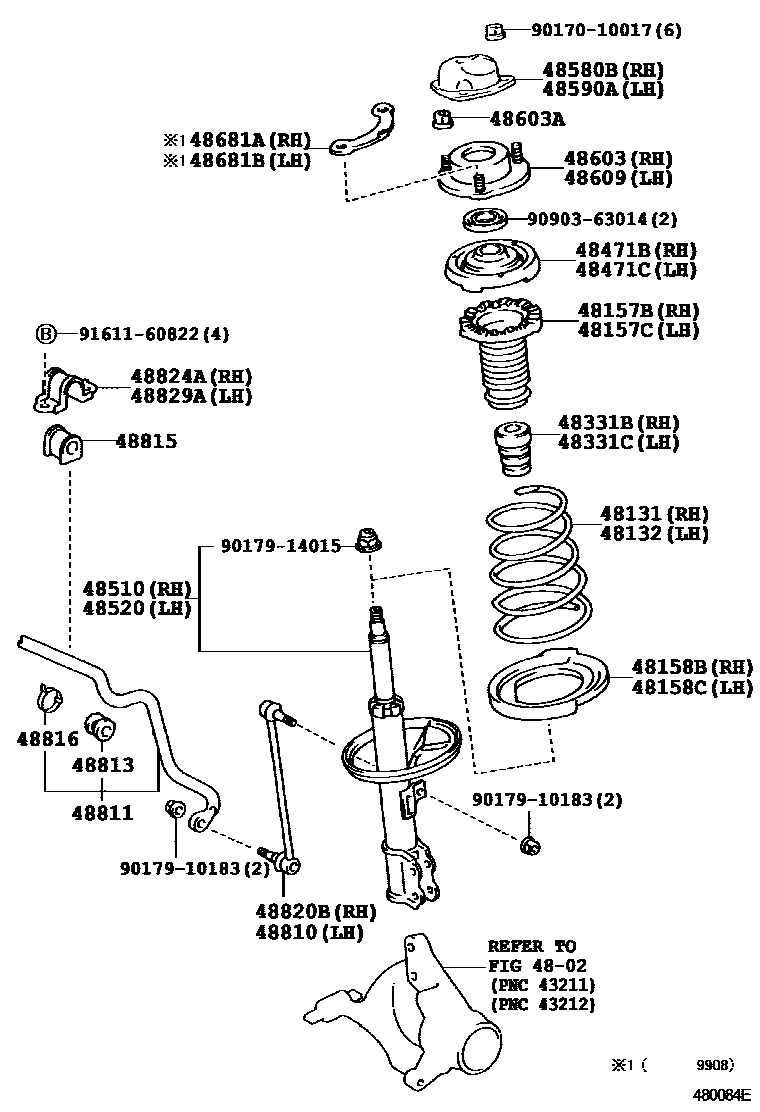

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-33830iMCV20199608-199908

main48131-3T120iMCV20199908

48132SPRING, FRONT COIL, LH

main48131-33830iMCV20199608-199908

main48131-3T120iMCV20199908

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33030iMCV20199608

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33030iMCV20199608

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33020iMCV20199608

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33020iMCV20199608

48331BBUMPER, FRONT SPRING, RH

main48331-33020iMCV20199608

sub48331-33021

48331CBUMPER, FRONT SPRING, LH

main48331-33020iMCV20199608

sub48331-33021

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-41010iMCV20199608

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-41010iMCV20199608

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39506iMCV20199608

sub48510-80137

main48510-39515iMCV20199608

W(TEMS)

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-39186iMCV20199608

sub48520-39605

main48520-39195iMCV20199608

W(TEMS)

48580BCAP ASSY, FRONT SHOCK ABSORBER, RH

main48580-33030iMCV20199608-200106

sub48580-33031

main48580-33031iMCV20200106-200107

48590ACAP ASSY, FRONT SHOCK ABSORBER, LH

main48590-33020iMCV20199608-200106

sub48590-33021

main48590-33021iMCV20200106-200107

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48603-06011iMCV20199908

(L)

main48603-33010iMCV20199608

sub48603-33021

main48603-33021iMCV20199908

(J)

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10008iMCV20199908-200106

main90178-10017iMCV20200106-200107

W(TEMS)

main90178-10018iMCV20200106-200107

main90179-10095iMCV20199908-200106

W(TEMS)

main90179-10095iMCV20199608-199908

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06061iMCV20199908

(L)

main48609-33110iMCV20199608-199912

(J)

sub48609-33121

main48609-33121iMCV20199912

(J)

48681AGASKET, FRONT SUSPENSION SUPPORT, RH

main48681-33010iMCV20199608-199908

48681BGASKET, FRONT SUSPENSION SUPPORT, LH

main48681-33010iMCV20199608-199908

48810LINK ASSY, FRONT STABILIZER, LH

main48810-33010iMCV20199608

48811BAR, STABILIZER, FRONT

main48811-07010iMCV20199608

(L)

main48811-33080iMCV20199608

(J)

48813STOPPER, FRONT STABILIZER

main48813-33020iMCV20199608

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-33050iMCV20199608

48816CLAMP, FRONT STABILIZER STOPPER

main48816-33010iMCV20199608

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33020iMCV20199608

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-33020iMCV20199608

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-33020iMCV20199608

9017010017

main90170-10017

9017910183

main90179-10183

9017914015

main90179-14015

9090363014

main90903-63014

9161160822

main91611-60822

33 parts on this diagram · 1 diagram in section
