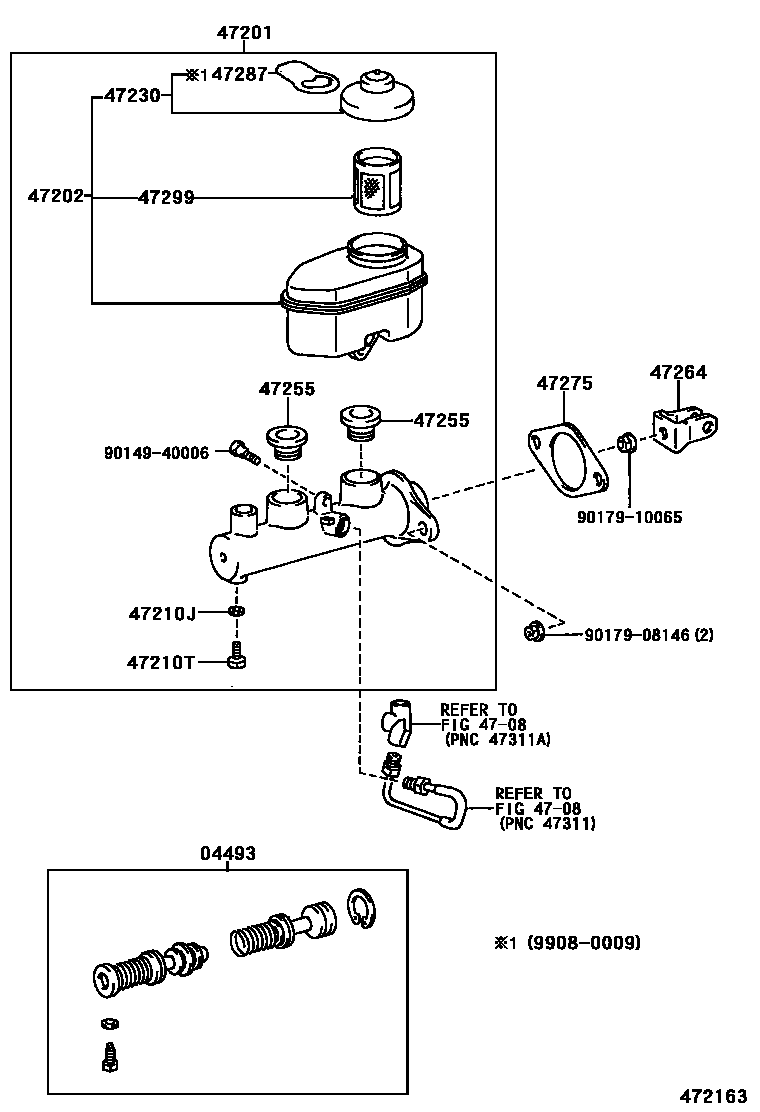

BRAKE MASTER CYLINDER

0001 1 0002 1W(TRACTION CONTROL) 0003 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-21010iMCV20200008

W(TRACTION CONTROL)

main04493-33060iMCV20..USA199608

sub04493-33160

main04493-33070iMCV20199608-199908

W(TRACTION CONTROL)

main04493-33090iMCV20199908-200008

W(TRACTION CONTROL)

main04493-33100iMCV20199908-200008

W(VSC)

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33100iMCV20199608-199908

W(TRACTION CONTROL)

main47201-33101iMCV20199908-200008

W(TRACTION CONTROL)

main47201-33130iMCV20..USA199608-199908

main47201-33140iMCV20..USA199908-200107

main47201-33170iMCV20199808-199908

W(VSC)

main47201-33172iMCV20199908-200008

W(VSC)

main47201-33210iMCV20200008-200107

W(TRACTION CONTROL)

main47201-33220iMCV20200008-200107

W(VSC)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33011iMCV20199608-200107

main47220-33020iMCV20199808-200107

W(VSC)

main47220-33040iMCV20199908-200008

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCV20..USA199908

main90430-06104iMCV20..USA199608-199908

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCV20..USA199608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iMCV20199908

W(VSC)

main47230-12040iMCV20199608-199908

main47230-20140iMCV20199908-200008

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMCV20199608

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-32020iMCV20199908

main47264-33010iMCV20199608-199908

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMCV20199608

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCV20199908-200008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCV20199908

W(VSC)

main47299-24010iMCV20199608

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 3 diagrams in section
