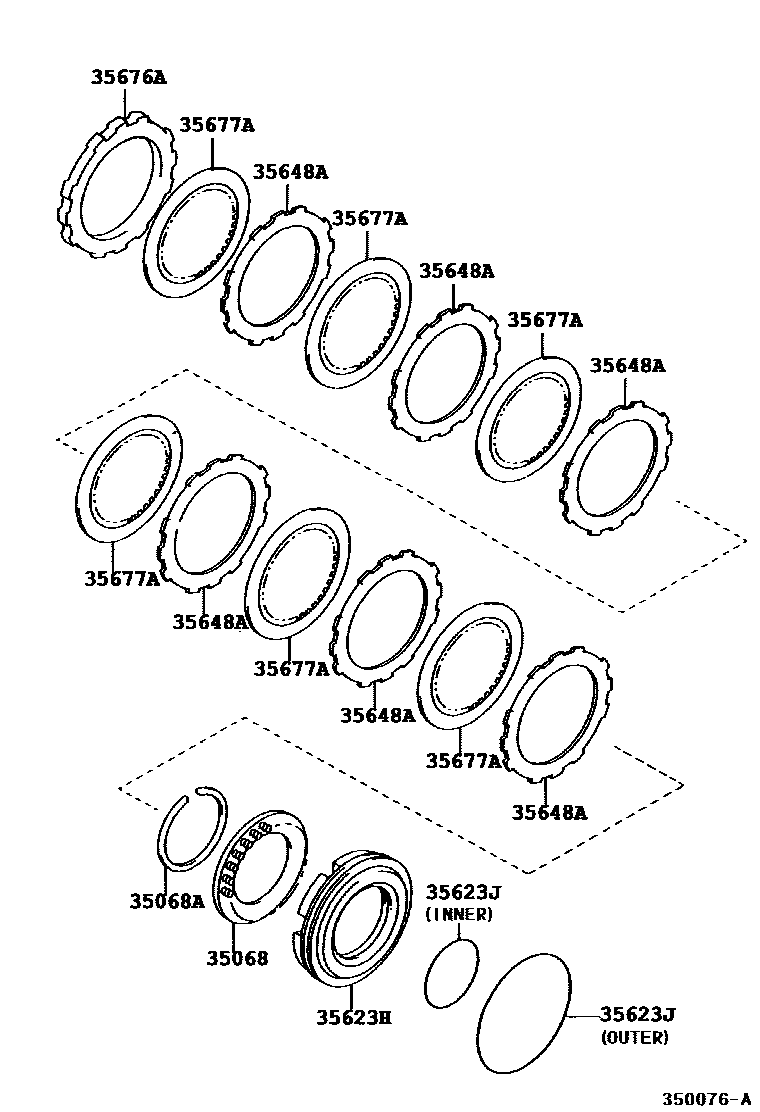

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
35623HPISTON, 1ST & REVERSE BRAKE
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35623JRING, O (FOR 1ST & REVERSE BRAKE)
TYPE A:REFER TO ILLUSTRATION,INNER
INNER
OUTER
TYPE A:REFER TO ILLUSTRATION,OUTER
TYPE B:REFER TO ILLUSTRATION,INNER
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
TYPE A:REFER TO ILLUSTRATION
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
T=3.6
T=3.6,TYPE A:REFER TO ILLUSTRATION
T=1.8,MARK 1,TYPE B:REFER TO ILLUSTRATION
T=1.9,MARK 2,TYPE B:REFER TO ILLUSTRATION
T=2.0,MARK 3,TYPE B:REFER TO ILLUSTRATION
T=2.1,MARK 4,TYPE B:REFER TO ILLUSTRATION
T=2.2,MARK 5,TYPE B:REFER TO ILLUSTRATION
T=2.3,MARK 6,TYPE B:REFER TO ILLUSTRATION
T=2.4,MARK 7,TYPE B:REFER TO ILLUSTRATION
T=2.5,MARK 8,TYPE B:REFER TO ILLUSTRATION
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
7 parts on this diagram · 2 diagrams in section
