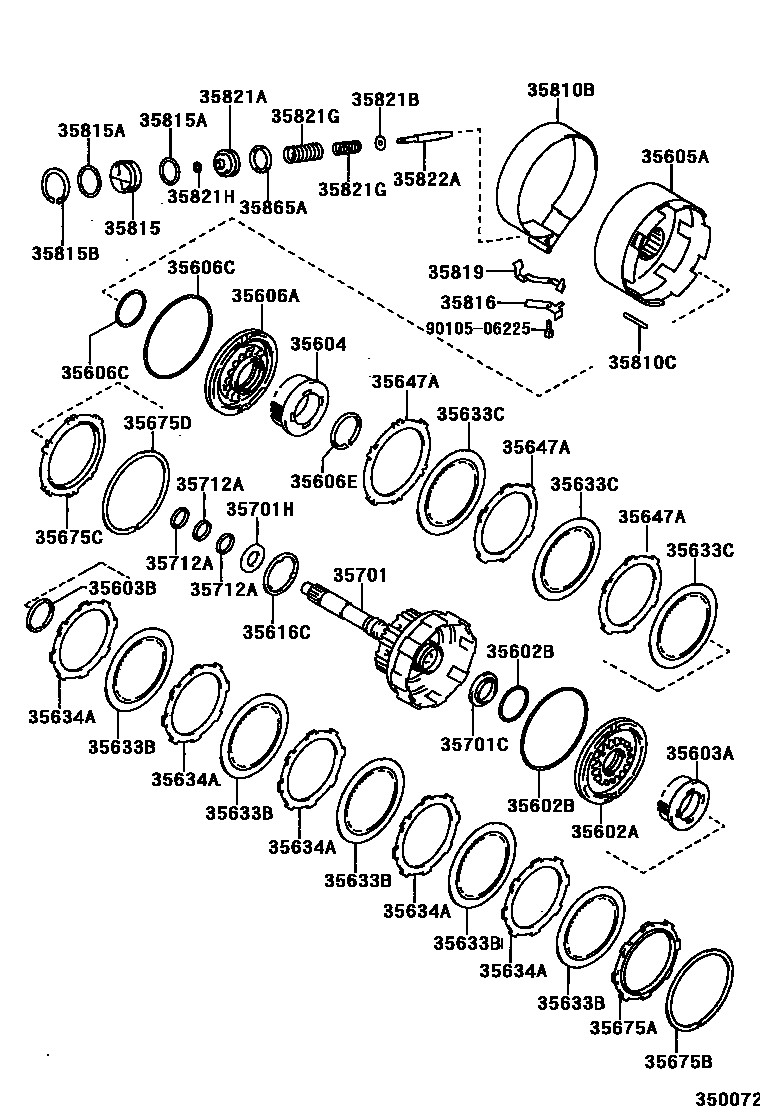

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602APISTON SUB-ASSY, FORWARD CLUTCH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35602BRING, O (FOR FORWARD CLUTCH PISTON)
INNER
TYPE A:REFER TO ILLUSTRATION,INNER
TYPE B:REFER TO ILLUSTRATION,INNER
TYPE A:REFER TO ILLUSTRATION,OUTER
OUTER
TYPE B:REFER TO ILLUSTRATION,OUTER
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35605ADRUM SUB-ASSY, DIRECT CLUTCH
TYPE A:REFER TO ILLUSTRATION
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
TYPE A:REFER TO ILLUSTRATION
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,TYPE B:REFER TO ILLUSTRATION
T=1.6
T=1.4
T=2.0
T=2.0,TYPE A:REFER TO ILLUSTRATION
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35675AFLANGE, FORWARD CLUTCH
T=3.00,TYPE B:REFER TO ILLUSTRATION
T=3.15,TYPE B:REFER TO ILLUSTRATION
T=3.30,TYPE B:REFER TO ILLUSTRATION
T=3.45,TYPE B:REFER TO ILLUSTRATION
T=3.60,TYPE B:REFER TO ILLUSTRATION
T=2.3
T=2.3,TYPE A:REFER TO ILLUSTRATION
T=2.7
T=2.7,TYPE A:REFER TO ILLUSTRATION
T=2.5
T=2.5,TYPE A:REFER TO ILLUSTRATION
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35675CFLANGE, DIRECT CLUTCH
T=3.0,TYPE B:REFER TO ILLUSTRATION
T=3.1,TYPE B:REFER TO ILLUSTRATION
T=3.2,TYPE B:REFER TO ILLUSTRATION
T=3.3,TYPE B:REFER TO ILLUSTRATION
T=3.4,TYPE B:REFER TO ILLUSTRATION
T=3.5,TYPE B:REFER TO ILLUSTRATION
T=2.7
T=2.7,TYPE A:REFER TO ILLUSTRATION
T=3.0,TYPE A:REFER TO ILLUSTRATION
T=3.0
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35701SHAFT SUB-ASSY, INPUT
TYPE A:REFER TO ILLUSTRATION
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=45.9,TYPE A:REFER TO ILLUSTRATION
OD=45.9
OD=47.1,TYPE A:REFER TO ILLUSTRATION
OD=47.1
OD=52.2,TYPE B:REFER TO ILLUSTRATION
35712ARING, INPUT SHAFT OIL SEAL
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
35810BBAND ASSY, 2ND COAST BRAKE
35810CPIN (FOR 2ND COAST BRAKE BAND)
35815COVER, 2ND COAST BRAKE
35815ARING, O (FOR 2ND COAST BRAKE COVER)
35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
35816RETAINER, BRAKE BAND GUIDE PLATE
35819PLATE, 2ND COAST BRAKE BAND GUIDE
35821APISTON, 2ND COAST BRAKE
35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
OUTER
INNER
35821HRING, E (FOR 2ND COAST BRAKE PISTON)
35822AROD, 2ND COAST BRAKE PISTON
L=95.2
L=96.3
35865ARING, 2ND COAST BRAKE PISTON OIL SEAL
9010506225
main90105-06225
36 parts on this diagram · 2 diagrams in section
