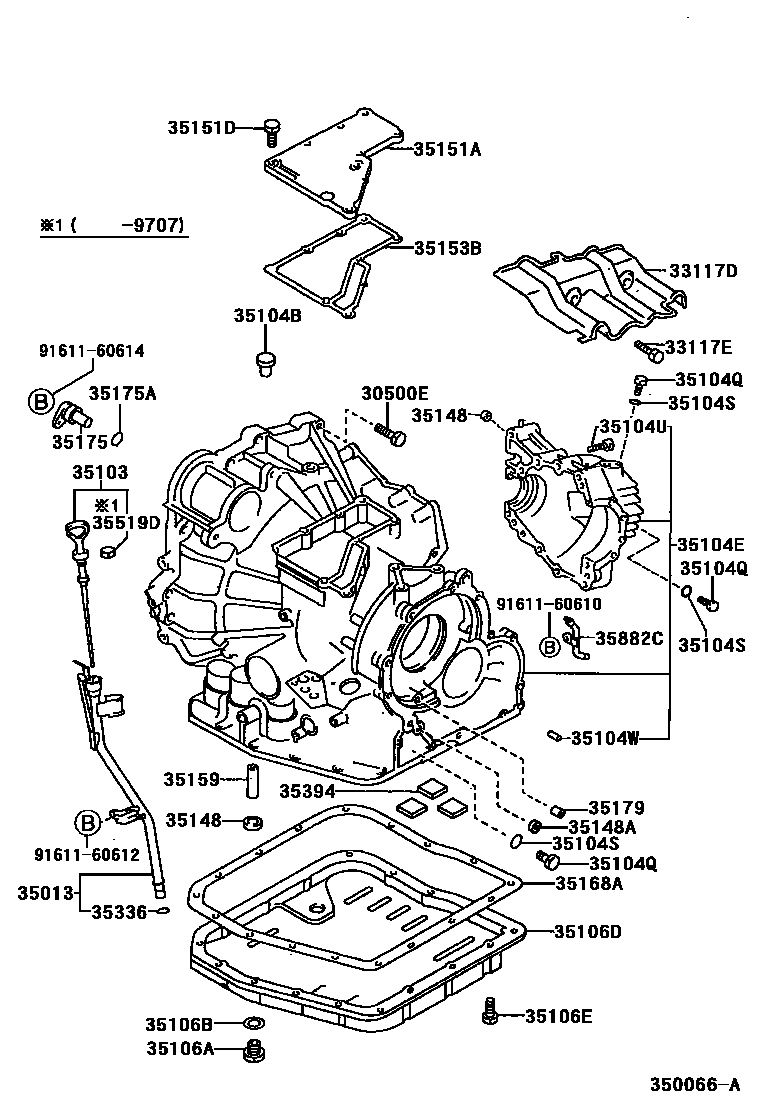

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A541E,TYPE A 0003 1U140E,TYPE B

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-12168iMCV20199608-199808

*12-1.25PX55-30

main90119-12168iMCV20199808

*12-1.25PX55-30,TYPE A:REFER TO ILLUSTRATION

main90119-12168iMCV20..USA199808

*12-1.25PX55-30,TYPE B:REFER TO ILLUSTRATION

main90119-12250iMCV20199808

*12-1.25PX50-30,TYPE B:REFER TO ILLUSTRATION

main91619-61265iMCV20199608

*12-1.25PX65-30

main92412-H1055iMCV20199608

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-21010iMCV20199808

TYPE B:REFER TO ILLUSTRATION

main33117-32040iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

main33117-32040iMCV20199608-199808

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iMCV20199608

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-33090iMCV20199608-199808

main35013-33090iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

main35013-33120iMCV20199808

TYPE B:REFER TO ILLUSTRATION

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-33120iMCV20199608-199702

sub35103-33160

main35103-33160iMCV20199702-199808

main35103-33160iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

main35103-33200iMCV20199808-199908

TYPE B:REFER TO ILLUSTRATION

sub35103-33201

main35103-33201iMCV20199908

TYPE B:REFER TO ILLUSTRATION

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iMCV20199608-199808

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-21010iMCV20199808-200010

TYPE B:REFER TO ILLUSTRATION

main35104-21010iMCV20200008-200010

main35104-21011iMCV20200010-200107

TYPE B:REFER TO ILLUSTRATION

sub35104-28083

sub35104-28130

sub35105-28013

sub35105-48023

sub35105-48060

sub90105-06320

sub90301-06008

sub90301-10189

main35104-33900iMCV20199608-199612

sub35104-33901

main35104-33901iMCV20199612-199808

sub35104-33903

sub35405-33021

sub90501-21032

sub90501-21033

main35104-33903iMCV20..USA199808-200107

TYPE A:REFER TO ILLUSTRATION

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

main90341-08001iMCV20..USA199808

TYPE B:REFER TO ILLUSTRATION

main90341-08001iMCV20199608-199808

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iMCV20199808

TYPE A:REFER TO ILLUSTRATION

main90301-06196iMCV20199608-199808

main90301-06196iMCV20..USA199808

TYPE B:REFER TO ILLUSTRATION

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222iMCV20199608-199808

*10-1.25PX65-30

main90105-10223iMCV20..USA199608-199808

*10-1.25PX75-30

main90105-10224iMCV20199608-199808

*10-1.25PX100-30

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iMCV20199808-200009

TYPE B:REFER TO ILLUSTRATION

main90250-10036iMCV20200009

TYPE B:REFER TO ILLUSTRATION

sub90250-10232

main90250-10232iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

main90250-10232iMCV20199608-199808

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCV20199608

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCV20199608

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-21020iMCV20199808-200102

TYPE B:REFER TO ILLUSTRATION

sub35106-33030

sub35330-06010

main35106-33010iMCV20199608-199702

sub35106-33020

main35106-33020iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

main35106-33020iMCV20199702-199808

main35106-33030iMCV20200102

TYPE B:REFER TO ILLUSTRATION

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iMCV20199808

TYPE B:REFER TO ILLUSTRATION

main90119-06173iMCV20199808

TYPE A:REFER TO ILLUSTRATION

main90119-06173iMCV20199608-199808

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iMCV20199808

TYPE B:REFER TO ILLUSTRATION

main35148-16010iMCV20199608-199808

main35148-16010iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-16010iMCV20199608-199808

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-33020iMCV20199608-199706

sub35151-33021

main35151-33021iMCV20199706-199709

sub35151-33022

main35151-33022iMCV20199709-199808

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113iMCV20199608-199808

*6-1.00PX20-18

sub91511-H0620

main90109-08235iMCV20..USA199608-199808

*10-1.25PX30-22

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-33020iMCV20199608-199808

35159GASKET, BRAKE DRUM

main35159-21010iMCV20199808

TYPE B:REFER TO ILLUSTRATION

main35159-32011iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

main35159-32011iMCV20199608-199808

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iMCV20199808

TYPE B:REFER TO ILLUSTRATION

sub35168-21011

main35168-33010iMCV20199608-199611

sub35168-33030

main35168-33030iMCV20199611-199808

sub35168-33031

main35168-33030iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

sub35168-33031

35175CAP, TRANSAXLE CASE, NO.2

main35175-33010iMCV20199608-199808

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-16006iMCV20199608-199808

35179GASKET, OVERDRIVE BRAKE

main35179-32010iMCV20199808-200010

TYPE B:REFER TO ILLUSTRATION

main35179-32010iMCV20199608-199808

main35179-32010iMCV20..USA199808

TYPE A:REFER TO ILLUSTRATION

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMCV20199608

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iMCV20199608-200012

main35394-30011iMCV20200012

TYPE B:REFER TO ILLUSTRATION

main35394-30011iMCV20200012

TYPE A:REFER TO ILLUSTRATION

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iMCV20199908

main35519-30010iMCV20199808-199908

main35519-32040iMCV20199608-199707

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-33020iMCV20199608-199808

9161160610

main91611-60610

9161160612

main91611-60612

9161160614

main91611-60614
