CRANKSHAFT & PISTON

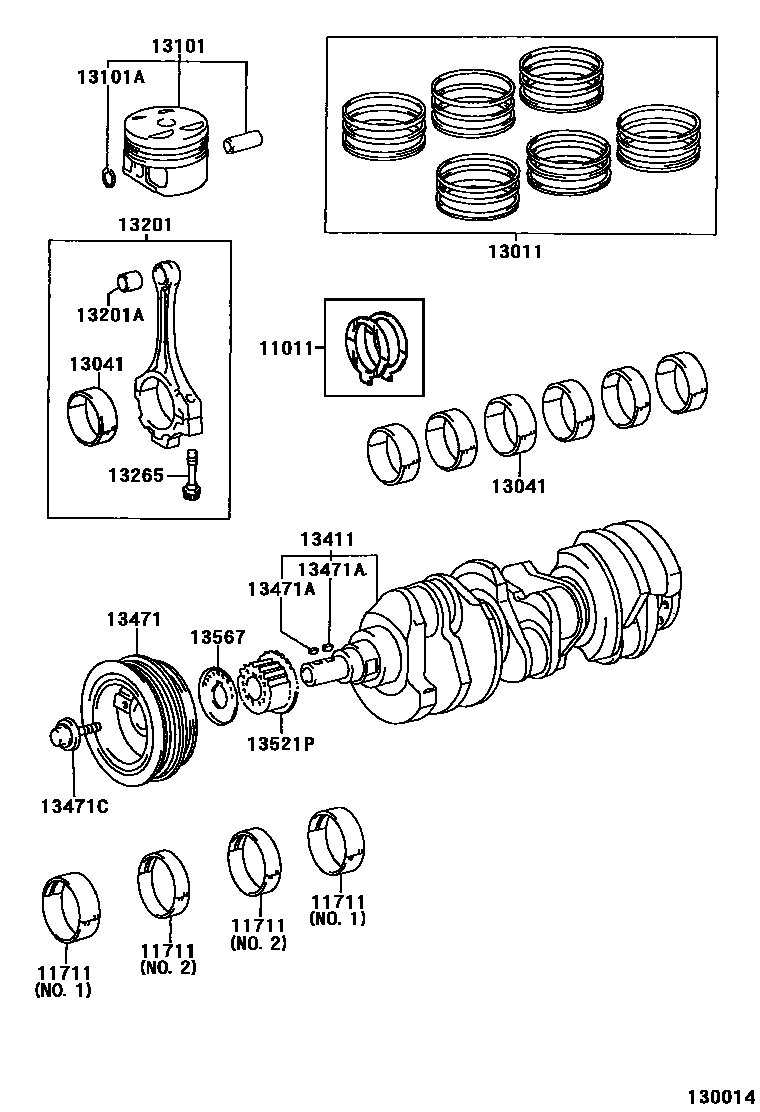

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-20020i199608
STD
11711BEARING, CRANKSHAFT
main11071-20010-01i199608-199809
MARK 1,NO.2
sub11071-20020
main11071-20010-02i199608-199809
MARK 2,NO.2
sub11071-20020
main11071-20010-03i199608-199809
MARK 3,NO.2
sub11071-20020
main11071-20010-04i199608-199809
MARK 4,NO.2
sub11071-20020
main11071-20010-05i199608-199809
MARK 5,NO.2
sub11071-20020
main11071-20020-01i199809
MARK 1,NO.2
sub11071-20021
main11071-20020-02i199809
MARK 2,NO.2
sub11071-20021
main11071-20020-03i199809
MARK 3,NO.2
sub11071-20021
main11071-20020-04i199809
MARK 4,NO.2
sub11071-20021
main11071-20020-05i199809
MARK 5,NO.2
sub11071-20021
main11701-20010-03i199608-199809
MARK 3,NO.1
sub11701-20010
sub11701-20020
main11701-20010-04i199608-199809
MARK 4,NO.1
sub11701-20010
sub11701-20020
main11701-20010-05i199608-199809
MARK 5,NO.1
sub11701-20010
sub11701-20020
main11701-20010-06i199608-199809
MARK 6,NO.1
sub11701-20010
sub11701-20020
main11701-20010-07i199608-199809
MARK 7,NO.1
sub11701-20010
sub11701-20020
main11701-20020-03i199809
MARK 3,NO.1
sub11701-20030
main11701-20020-04i199809
MARK 4,NO.1
sub11701-20030
main11701-20020-05i199809
MARK 5,NO.1
sub11701-20030
main11701-20020-06i199809
MARK 6,NO.1
sub11701-20030
main11701-20020-07i199809
MARK 7,NO.1
sub11701-20030
13011RING SET, PISTON
main13011-20012i199808-199902
STD
sub13011-20022
main13011-20020i199608-199712
STD
sub13011-20021
main13011-20021i199712-199808
STD
sub13011-20012
main13011-20022i199902
STD
sub13011-20023
13041BEARING, CONNECTING ROD
main13041-20010-01i199608
MARK 1
sub13041-20011
main13041-20010-02i199608
MARK 2
sub13041-20011
main13041-20010-03i199608
MARK 3
sub13041-20011
main13041-20010-04i199608
MARK 4
sub13041-20011
13101PISTON SUB-ASSY, W/PIN
main13101-20010i199608-199712
STD,RH
sub13101-20030
main13101-20030i199712-200107
STD,RH
main13301-20010i199608-199712
STD,LH
sub13301-20020
main13301-20020i199712-200107
STD,LH
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200003
main90521-25004i199608-200003
sub90520-22025
13201ROD SUB-ASSY, CONNECTING
main13201-29015i199608
sub13201-29155
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73119i199608
13265BOLT, CONNECTING ROD
main13265-50020i199608
13411CRANKSHAFT
main13401-20010i199608-199710
sub13401-20030
main13401-20030i199710
13471PULLEY, CRANKSHAFT
main13408-0A010i199608
(L)
main13408-20010i199608
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i199608
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i199608
13521PPULLEY, CRANKSHAFT TIMING
main13521-20020i199608
13567GUIDE, TIMING BELT, NO.2
main13567-62010i199608

15 parts on this diagram · 1 diagram in section
