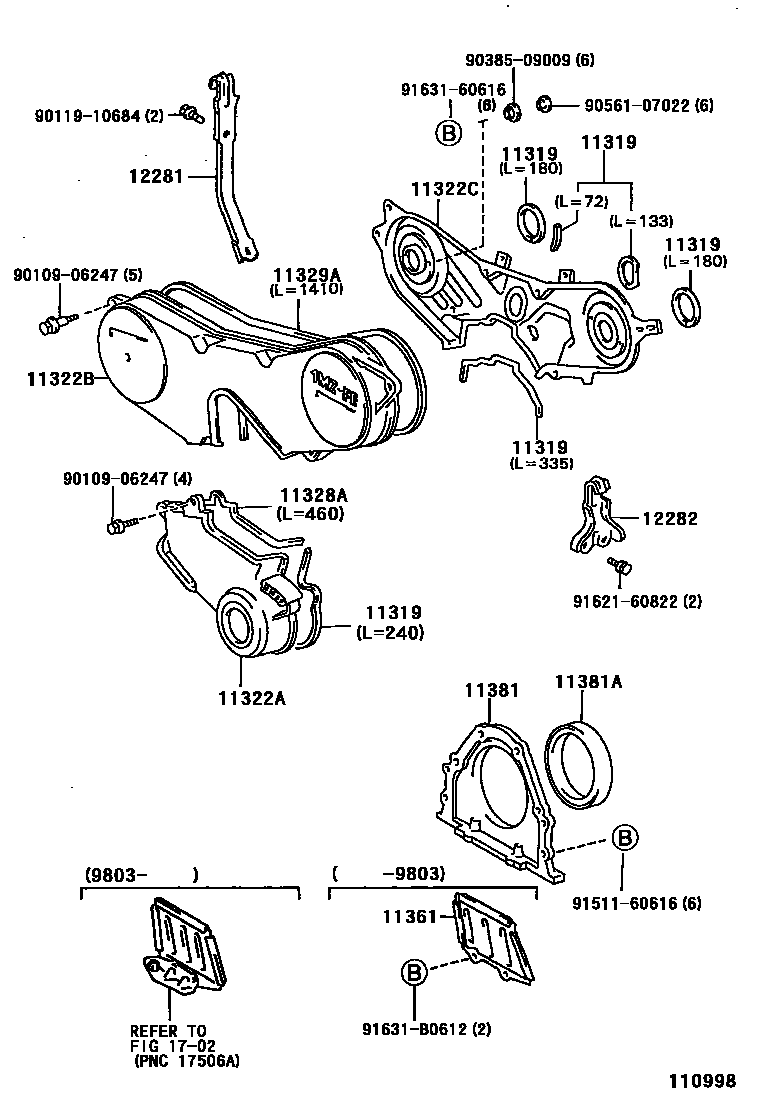

TIMING GEAR COVER & REAR END PLATE

11319GASKET, TIMING BELT COVER, NO.3

main11319-20010i1MZFE..MCV20199608

11322ACOVER, TIMING BELT, NO.1

main11302-20040i1MZFE..MCV20199904

main11321-20900i1MZFE..MCV20199608-199904

11322BCOVER, TIMING BELT, NO.2

main11303-20040i1MZFE..MCV20199904

main11322-20030i1MZFE..MCV20199710-199904

main11322-20901i1MZFE..MCV20199608-199710

11322CCOVER, TIMING BELT, NO.3

main11304-20902i1MZFE..MCV20199608-199710

main11323-20030i1MZFE..MCV20199710

11328AGASKET, TIMING BELT COVER, NO.1

main11328-20020i1MZFE..MCV20199608

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-20010i1MZFE..MCV20199608

11361COVER, FLYWHEEL HOUSING UNDER

main11361-20010i1MZFE..MCV20199608-199803

sub11361-20011

11381RETAINER, ENGINE REAR OIL SEAL

main11381-20010i1MZFE..MCV20199608

11381ASEAL, ENGINE REAR OIL

main90311-92007i1MZFE..MCV20199608-199710

sub90311-92008

main90311-92008i1MZFE..MCV20199710

12281HANGER, ENGINE, NO.1

main12281-20030i1MZFE..MCV20199608

12282HANGER, ENGINE, NO.2

main12282-20020i1MZFE..MCV20199608

1702

9010906247

main90109-06247

9011910684

main90119-10684

9038509009

main90385-09009

9056107022

main90561-07022

9151160616

main91511-60616

9162160822

main91621-60822

9163160616

main91631-60616

91631B0612

main91631-B0612

20 parts on this diagram · 1 diagram in section
