STANDARD TOOL

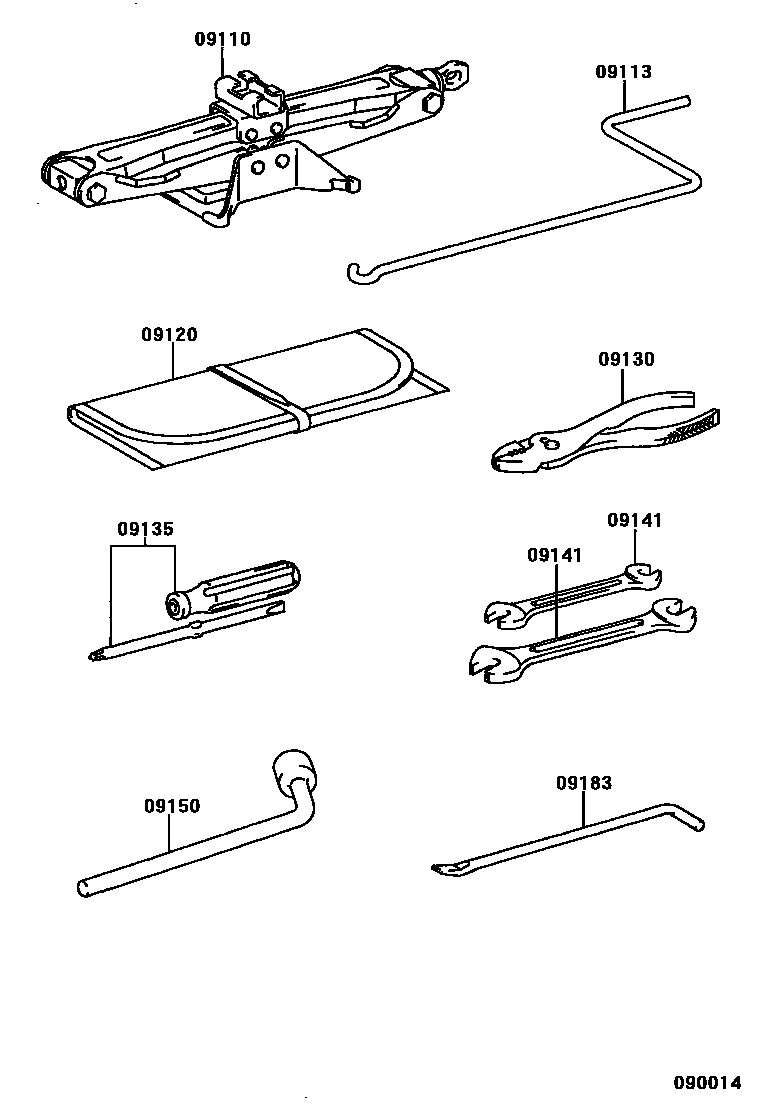

Parts diagram

09110JACK ASSY

main09111-0W041i199805

main09111-22060i199608-199805

09113HANDLE, JACK

main09113-33010i199608

09120BAG, TOOL

main09120-16030i199608

09130PLIERS

main09130-50030i199608

09135DRIVER, SCREW

main09135-50040i199608

09141SPANNER

main09141-50050i199608

8 X 10

main09141-50060i199608

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010i199608

09183WRENCH, WHEEL CAP

main09183-00010i199608

8 parts on this diagram · 1 diagram in section
