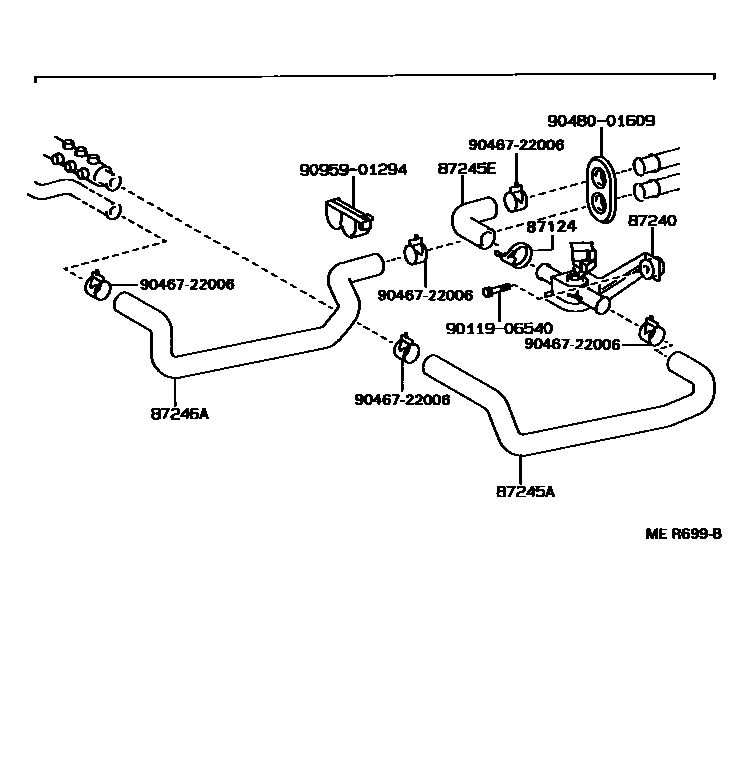

HEATING & AIR CONDITIONING - WATER PIPING

87124CLAMP, HEATER

main87124-28030iMCV10,VCV10199107-199511

87240VALVE ASSY, HEATER WATER

main87240-33010iMCV10,VCV10199107-199608

87245AHOSE, HEATER WATER, INLET A

main87245-33030iVCV10199107-199308

main87245-33080iMCV10199308-199608

87245EHOSE, HEATER WATER, INLET E

main87245-33110iMCV10,VCV10199107-199608

87246AHOSE, HEATER WATER, OUTLET A

main87245-33040iVCV10199107-199308

main87245-33140iMCV10199308-199608

9011906540

main90119-06540

9046722006

main90467-22006

9048001609

main90480-01609

9095901294

main90959-01294

9 parts on this diagram · 1 diagram in section
