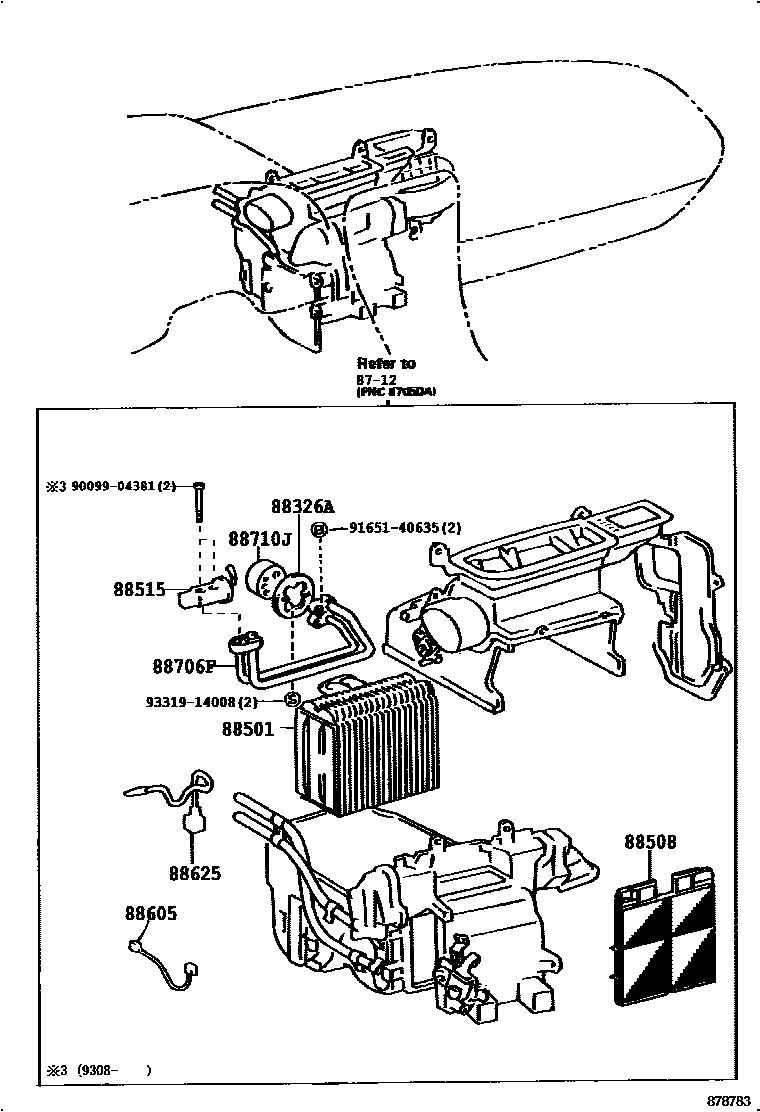

HEATING & AIR CONDITIONING - COOLER UNIT

8712

88326APLATE, COVER

main88326-33030iMCV10199308-199608

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33010iVCV10199107-199308

main88501-33040iMCV10199308-199408

sub88501-33070

main88501-33070iMCV10199408-199608

sub88501-33080

88508FILTER SUB-ASSY, CLEAN AIR

main88880-33020iMCV10,VCV10199210-199608

88515VALVE, COOLER EXPANSION

main88515-14062iVCV10199107-199308

sub88515-33010

main88515-20100iMCV10199308-199608

sub88515-22240

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-33010iMCV10,VCV10199107-199608

88625THERMISTOR, COOLER, NO.1

main88625-33070iMCV10,VCV10199107-199608

88706FTUBE SUB-ASSY, LIQUID, F

main88706-33020iVCV10199107-199308

main88716-33140iMCV10199308-199608

88710JTUBE, AIR CONDITIONER CONNECTOR

main88710-33090iMCV10199308-199608

9009904381

main90099-04381

9165140635

main91651-40635

9331914008

main93319-14008

12 parts on this diagram · 1 diagram in section
