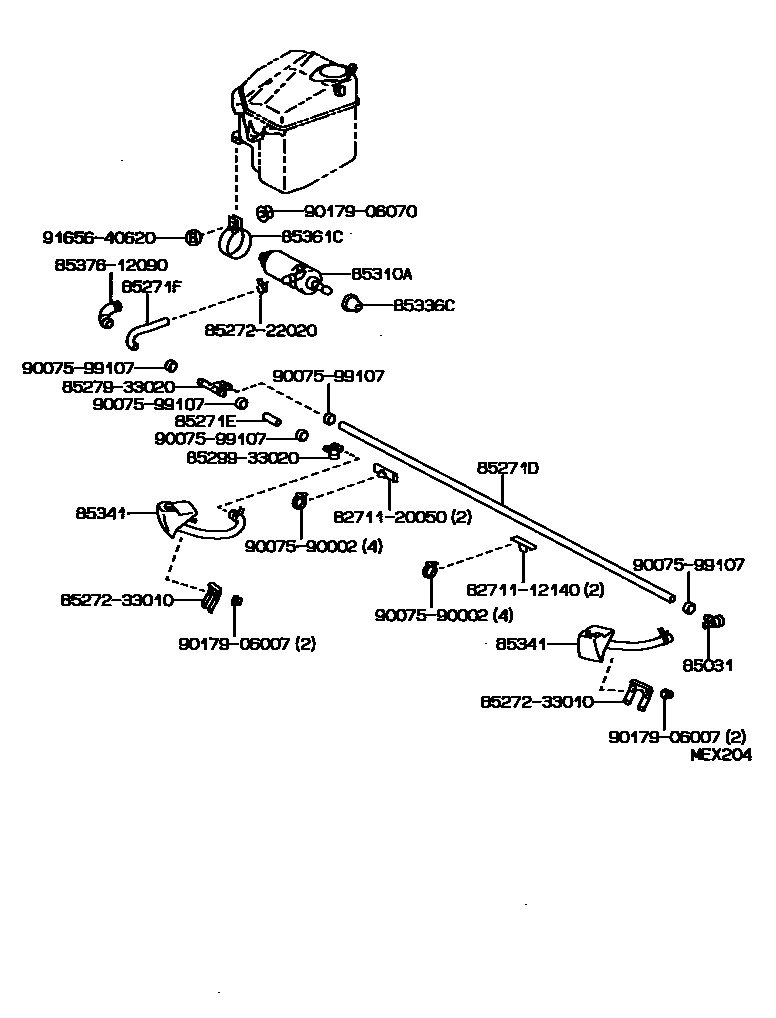

HEADLAMP CLEANER

0001 1 0002 1

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iVCV10..CND199107-199308

main85379-22080iMCV10..CND199308-199608

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-14100iMCV10..CND199308-199608

85271DHOSE, HEADLAMP CLEANER, NO.5

main85375-95403iVCV10..CND199107-199308

L=1400

85271EHOSE, HEADLAMP CLEANER, NO.6

main85375-16020iVCV10..CND199107-199308

L=40

main85375-89133iMCV10..CND199308-199608

sub85275-44050

85271FHOSE, HEADLAMP CLEANER, NO.7

main85336-12230iMCV10..CND199308-199608

L=15

main85375-14400iVCV10..CND199107-199308

L=170

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85280-33010iVCV10..CND199107-199304

sub85280-33011

main85280-33011iVCV10..CND199304-199308

sub85330-20420

main85280-33020iMCV10..CND199308-199608

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iMCV10,VCV10..CND199107-199608

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-33020iVCV10..CND199107-199308

main85044-33030iMCV10..CND199308-199608

85361CBRACKET, WASHER

main85361-33020iMCV10..CND199308-199608

main85361-90K02iVCV10..CND199107-199308

8271112140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12140

8271120050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20050

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

8527233010CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-33010

8527933020RELAY ASSY, HEADLAMP CLEANER WASHER

main85279-33020

8529933020BRACKET, WIPER MOTOR COVER

main85299-33020

8537612090PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-12090

9007590002

main90075-90002

9007599107

main90075-99107

9017906007

main90179-06007

9017906070

main90179-06070

9165640620

main91656-40620

21 parts on this diagram · 2 diagrams in section
