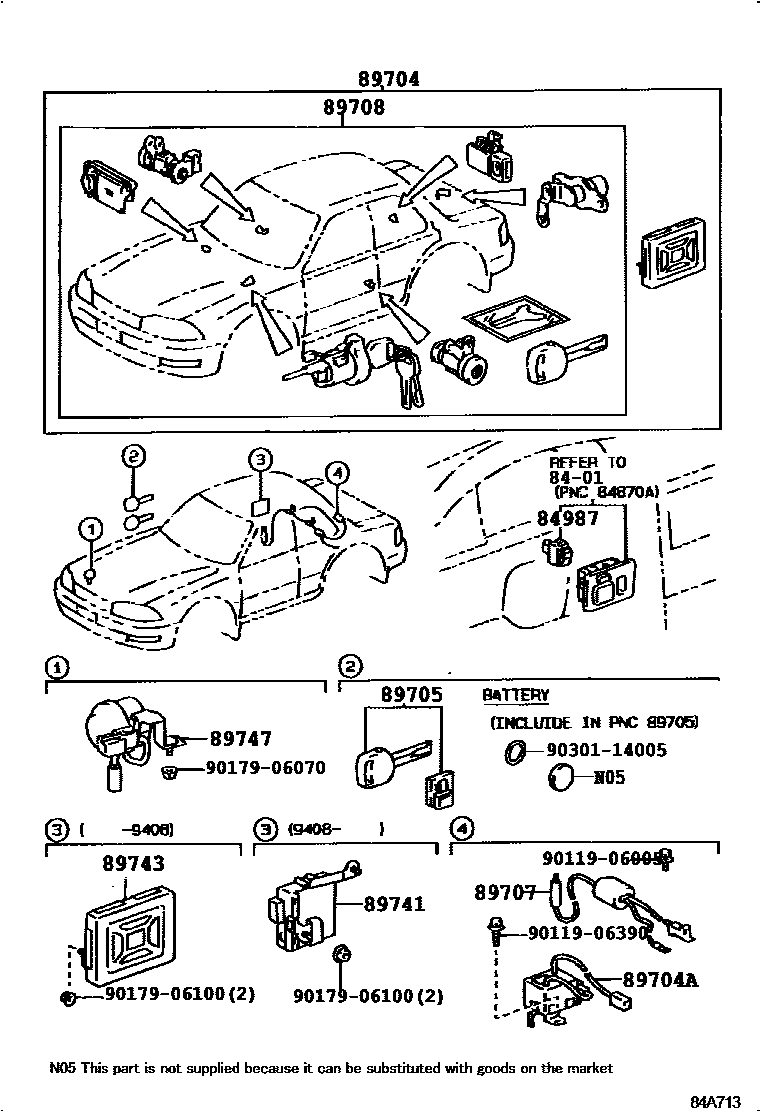

WIRELESS DOOR LOCK

8401

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-33030iVCV10199107-199308

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-33010-22iVCV10199107-199308

BLACK,TRIM2#

main89704-33010-A0iVCV10199107-199308

IVORY,TRIM0#

main89704-33010-K2iVCV10199107-199308

TAUPE,TRIM9#

main89704-33010-W4iVCV10199107-199308

DARK BLUE,TRIM8#

main89704-33080-C0iMCV10199308-199408

BLACK,TRIM2#

main89704-33080-E0iMCV10199308-199408

OAK,TRIM4#

main89704-33080-J0iMCV10199308-199408

DARK BLUE,TRIM8#

main89704-33080-K0iMCV10199308-199408

TAUPE,TRIM9#

main89704-33140-A0iMCV10199408-199608

IVORY,TRIM4#

main89704-33140-C0iMCV10199408-199608

BLACK,TRIM2#

main89704-33140-K0iMCV10199408-199608

MD.TAUPE,TRIM9#

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05194iMCV10,VCV10199107-199608

89705TRANSMITTER, DOOR CONTROL

main89705-50011iVCV10199107-199308

1 SET

sub89705-50943

main89705-50051iVCV10199107-199308

2 SET

sub89705-50944

main89705-50945iVCV10199107-199308

3 SET

main89705-50946iMCV10199308-199408

1 SET

main89705-50947iMCV10199308-199408

2 SET

main89705-50948iMCV10199308-199408

3 SET

main89742-24070iMCV10199408-199608

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-33010iVCV10199107-199308

main89707-33050iMCV10199308-199408

main89707-33051iMCV10199408-199608

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-33030-A0iMCV10199408-199608

IVORY,TRIM4#

main89708-33030-C0iMCV10199408-199608

BLACK,TRIM2#

main89708-33030-K0iMCV10199408-199608

MD.TAUPE,TRIM9#

89741RECEIVER, DOOR CONTROL

main89741-33110iMCV10199408-199608

89743RECEIVER, DOOR CONTROL

main89743-33010iVCV10199107-199308

main89743-33060iMCV10199308-199408

89747BUZZER, WIRELESS DOOR LOCK

main89747-33010iMCV10199308-199608

9011906005

main90119-06005

9011906390

main90119-06390

9017906070

main90179-06070

9017906100

main90179-06100

9030114005

main90301-14005

15 parts on this diagram · 1 diagram in section
