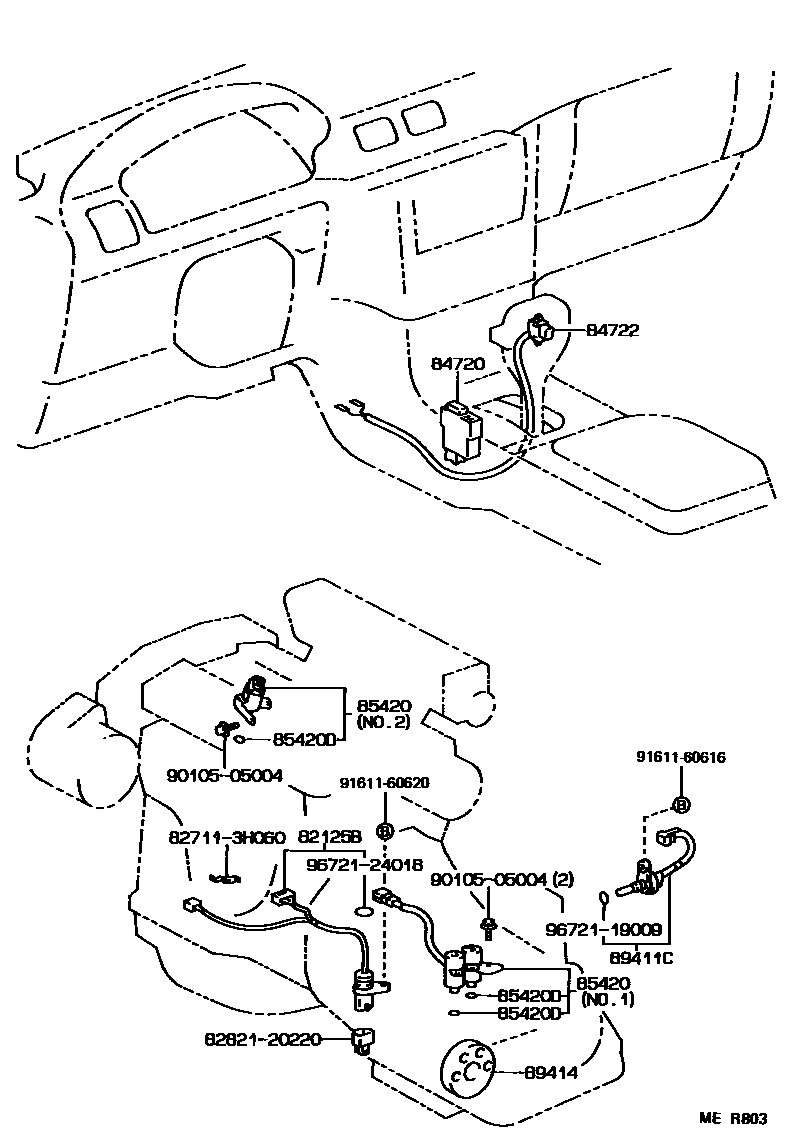

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125BWIRE, TRANSMISSION

main82125-32050iVCV10..ATM199107-199308

main82125-33010iMCV10199308-199608

84720SWITCH ASSY, PATTERN SELECT

main84720-33050iMCV10,VCV10..ATM199107-199608

84722SWITCH, TRANSMISSION CONTROL

main84722-33010-C0iMCV10199308-199408

BLACK,TRIM2#

sub84722-33010

main84722-33020-01iVCV10..ATM199107-199308

BLACK,TRIM2#

sub84722-33020

sub84722-32070

main84722-33020-02iMCV10,VCV10..ATM199107-199408

TAUPE,TRIM9#

sub84722-33020

sub84722-32070

main84722-33020-04iMCV10,VCV10..ATM199107-199408

DARK BLUE,TRIM8#

sub84722-33020

sub84722-32070

main84722-33020-05iVCV10..ATM199107-199308

GRIGE,TRIM0#

sub84722-33020

sub84722-32070

main84722-33020-C0iMCV10199408-199608

BLACK,TRIM2#

sub84722-33020

sub84722-32070

main84722-33020-E0iMCV10199308-199608

OAK,TRIM4#

sub84722-33020

sub84722-32070

main84722-33020-K0iMCV10199408-199608

TAUPE,TRIM9#

sub84722-33020

sub84722-32070

85420SOLENOID ASSY, TRANSMISSION

main85420-32102iVCV10..ATM199107-199308

NO.1

main85420-32120iVCV10..ATM199107-199308

NO.2

sub85420-32121

main85420-33010iMCV10199308-199608

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iVCV10..ATM199107-199608

89411CSENSOR, SPEED

main89411-32020iVCV10..ATM199107-199308

main89411-33010iMCV10199308-199608

TOYOTA

sub89413-24010

main89413-24010iMCV10199308-199608

AISIN

89414ROTOR, SENSOR

main89414-33010iVCV10..ATM199107-199308

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

8282120220RETAINER, HEADLAMP HARNESS

main82821-20220

9010505004

main90105-05004

9161160616

main91611-60616

9161160620

main91611-60620

9672119009

main96721-19009

9672124018

main96721-24018

14 parts on this diagram · 2 diagrams in section
