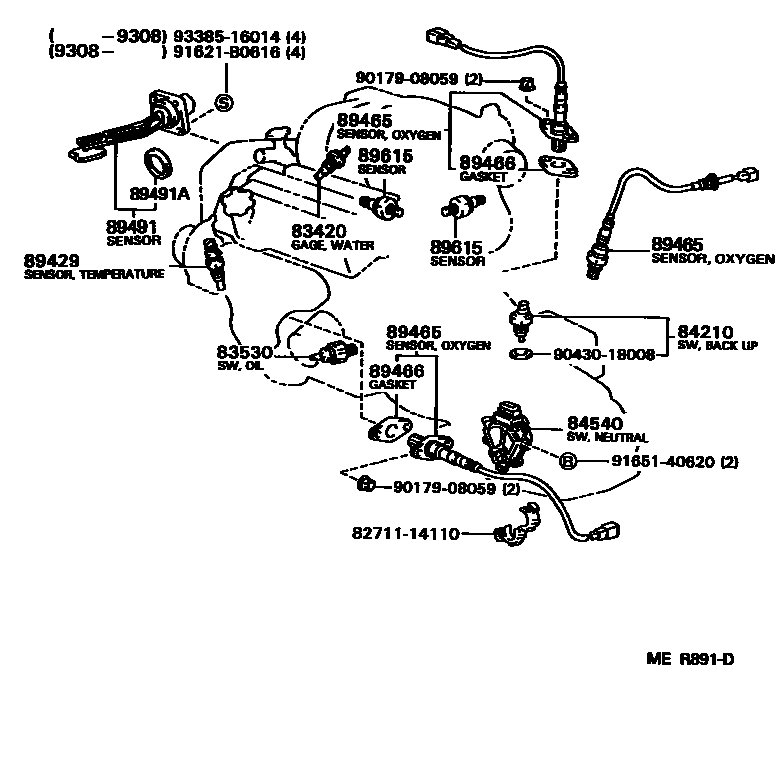

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL SWITCH 0004 1COWL LH 0005 1COWL RH 0006 1COMBINATION SWITCH 0007 1ROOF,FRONT DOOR & SEAT 0008 1FLOOR,REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVCV10199107-199301

main83420-16030iVCV10199301-199308

main83420-16050iMCV10199308-199408

sub83420-20040

main83420-20040iMCV10199408-199608

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iMCV10,VCV10199208-199408

sub83530-30090

main83530-30080iVCV10199107-199208

sub83530-60040

main83530-30090iMCV10199408-199608

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iVCV10..MTM199107-199308

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCV10199308-199608

main84540-32090iVCV10..ATM199107-199308

89429SENSOR, OIL TEMPERATURE

main89429-33010iMCV10,VCV10199107-199608

89465SENSOR, OXYGEN

main89465-33030iVCV10..USA199107-199308

CALIFORNIA SPEC,SCREW TYPE

main89465-33030iMCV10199308-199608

REAR

main89465-33080iMCV10199308-199608

FRONT

main89465-39405iVCV10199107-199308

CALIFORNIA SPEC,FLANGE TYPE

89466GASKET, OXYGEN SENSOR

main89466-20020iVCV10199107-199308

89491SENSOR, ENGINE OIL LEVEL

main89491-33010iVCV10199107-199308

main89491-33030iMCV10199308-199608

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iMCV10199408-199608

89615SENSOR, KNOCK CONTROL

main89615-12040iMCV10199308-199309

MATSUSHITA

main89615-12040iMCV10199309-199608

main89615-12050iMCV10199308-199309

NIPPONDENSO

sub89615-12090

main89615-33020iVCV10199107-199308

sub89615-32030

main89615-33020iVCV10199211-199308

NIPPONSDENSO

sub89615-32030

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9017908059

main90179-08059

9043018008

main90430-18008

91621B0616

main91621-B0616

9165140620

main91651-40620

9338516014

main93385-16014

16 parts on this diagram · 8 diagrams in section
