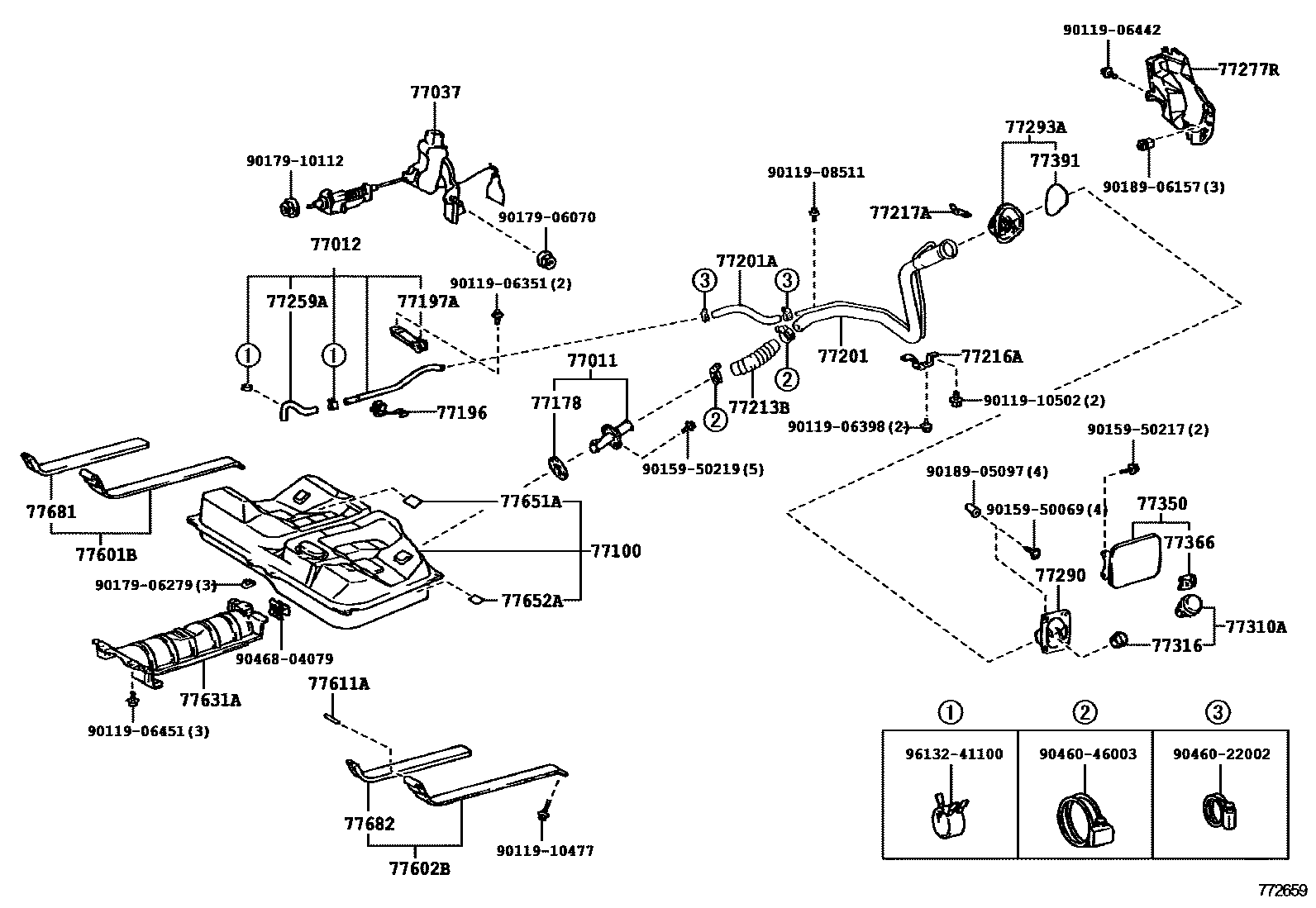

FUEL TANK & TUBE

0001 1 0002 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iMCV10,VCV10199107-199408

main77011-41010iMCV10199408-199608

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-33010iVCV10199107-199307

main77028-33010iMCV10,VCV10199307-199408

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77030-33010iMCV10,VCV10199107-199608

77100TANK ASSY, FUEL

main77001-39315iMCV10,VCV10199107-199608

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iMCV10,VCV10199107-199608

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-33020iMCV10,VCV10199307-199608

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-33020iMCV10,VCV10199307-199608

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33010iMCV10,VCV10199107-199608

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77249-33020iMCV10..USA199408-199508

L=210,CALIFORNIA SPEC

main90445-22024iMCV10,VCV10199107-199508

L=385

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-33010iMCV10,VCV10199107-199408

main77213-33020iMCV10199408-199508

main77213-33031iMCV10199508-199608

L=182

main77213-33040iMCV10..USA199408-199508

CALIFORNIA SPEC

sub77213-33041

main77213-33050iMCV10..USA199408-199508

L=240,CALIFORNIA SPEC

sub77213-33120

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-32050iMCV10,VCV10199107-199311

main77216-33010iMCV10199311-199608

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32030iVCV10199107-199308

main77217-33010iMCV10199308-199608

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-33010iMCV10,VCV10199107-199508

main77419-33010iMCV10..USA199408-199508

CALIFORNIA SPEC

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33020iMCV10,VCV10199107-199608

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-32030iVCV10199107-199201

main77290-33020iVCV10199201-199208

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-32020iMCV10,VCV10199107-199608

77310ACAP ASSY, FUEL TANK

main77310-12140iMCV10,VCV10199107-199608

77316GASKET, FUEL TANK CAP

main77316-16010iMCV10,VCV10199107-199608

77350LID ASSY, FUEL FILLER OPENING

main77350-32080iVCV10199107-199208

main77350-33150iMCV10,VCV10199208-199608

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12030×2iMCV10,VCV10199107-199608

77391RING, FUEL INLET BOX

main77391-16011iMCV10,VCV10199107-199608

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33010iMCV10,VCV10199107-199608

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33010iMCV10,VCV10199107-199608

77611APIN (FOR FUEL TANK BAND)

main90250-08019×2iMCV10,VCV10199107-199608

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-33010iMCV10,VCV10199107-199403

main77631-33020iMCV10199403-199608

sub77631-33021

77651ACUSHION, FUEL TANK, NO.1

main77652-32030×6iMCV10,VCV10199107-199608

77652ACUSHION, FUEL TANK, NO.2

main77652-20110iVCV10199107-199210

main77652-32030×6iMCV10199308-199608

60X60

main77652-33010×2iMCV10,VCV10199210-199608

110X135

77681SEAT, FUEL TANK BAND, RH

main77681-32040iVCV10199107-199302

main77681-32060iMCV10199408-199608

main77681-32070iMCV10,VCV10199302-199408

77682SEAT, FUEL TANK BAND, LH

main77681-32040iMCV10,VCV10199107-199408

main77681-32060iMCV10199408-199608

9011906351

main90119-06351

9011906398

main90119-06398

9011906442

main90119-06442

9011906451

main90119-06451

9011908511

main90119-08511

9011910477

main90119-10477

9011910502

main90119-10502

9015950069

main90159-50069

9015950217

main90159-50217

9015950219

main90159-50219

9017906070

main90179-06070

9017906279

main90179-06279

9017910112

main90179-10112

9018905097

main90189-05097

9018906157

main90189-06157

9046022002

main90460-22002

9046046003

main90460-46003

9046804079

main90468-04079

9613241100

main96132-41100

48 parts on this diagram · 2 diagrams in section
