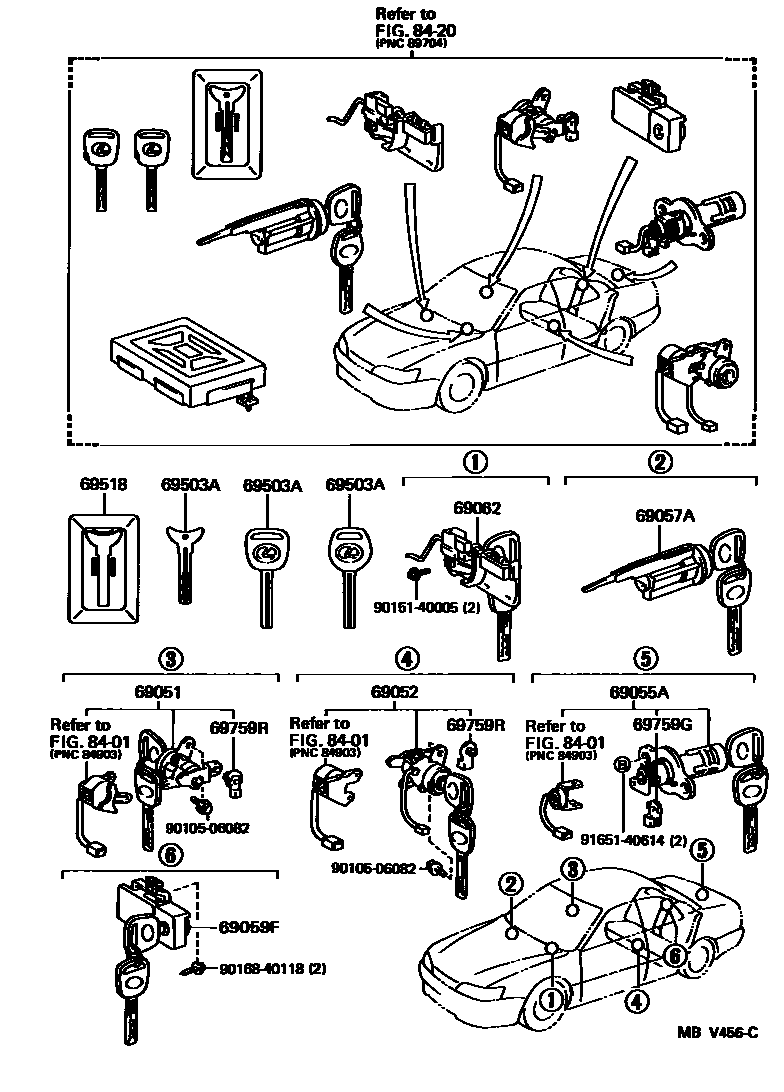

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
69518CARD, SPARE KEY
sub69518-50020
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
8401
8420
9010506082
main90105-06082
9015140005
main90151-40005
9016840118
main90168-40118
9165140614
main91651-40614
16 parts on this diagram · 1 diagram in section
