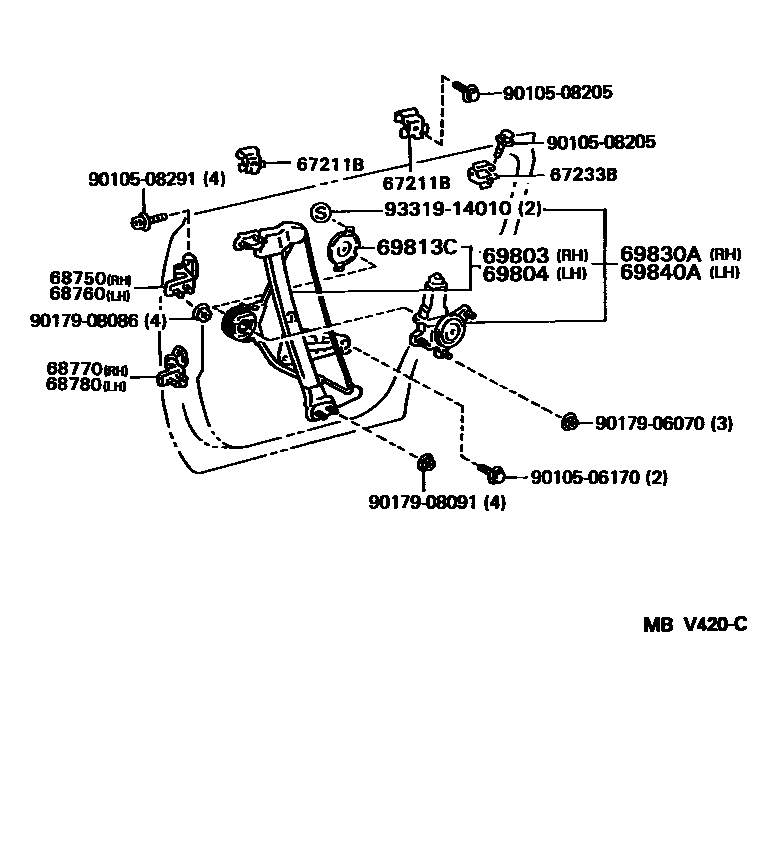

REAR DOOR WINDOW REGULATOR & HINGE

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-32040iMCV10,VCV10199107-199608

67233BSUPPORT, REAR DOOR TRIM

main67233-32010iVCV10199107-199303

STAMPED NO.1

sub67233-32040

main67233-32020iVCV10199107-199303

STAMPED NO.2

sub67233-32050

main67233-32030iVCV10199107-199303

STAMPED NO.3

sub67233-32060

main67233-32040iMCV10,VCV10199303-199608

STAMPED NO.1

main67233-32050iMCV10,VCV10199303-199608

STAMPED NO.2

main67233-32060iMCV10,VCV10199303-199608

STAMPED NO.3

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32041iMCV10,VCV10199107-199608

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32041iMCV10,VCV10199107-199608

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32051iMCV10,VCV10199107-199608

sub68770-50030

68780HINGE ASSY, REAR DOOR, LOWER LH

main68770-32051iMCV10,VCV10199107-199608

sub68770-50030

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32060iMCV10,VCV10199107-199409

sub69803-32061

main69803-32061iMCV10199409-199608

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32060iMCV10,VCV10199107-199409

sub69804-32061

main69804-32061iMCV10199409-199608

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69813-20050iMCV10199501-199608

RH

main69813-20050iMCV10199409-199501

main69813-32030iMCV10,VCV10199107-199409

main69814-20050iMCV10199501-199608

LH

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-32100iMCV10,VCV10199107-199409

sub69830-32101

main69830-32101iMCV10199409-199608

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-32100iMCV10,VCV10199107-199409

sub69840-32101

main69840-32101iMCV10199409-199608

9010506170

main90105-06170

9010508205

main90105-08205

9010508291

main90105-08291

9017906070

main90179-06070

9017908086

main90179-08086

9017908091

main90179-08091

9331914010

main93319-14010

18 parts on this diagram · 1 diagram in section
