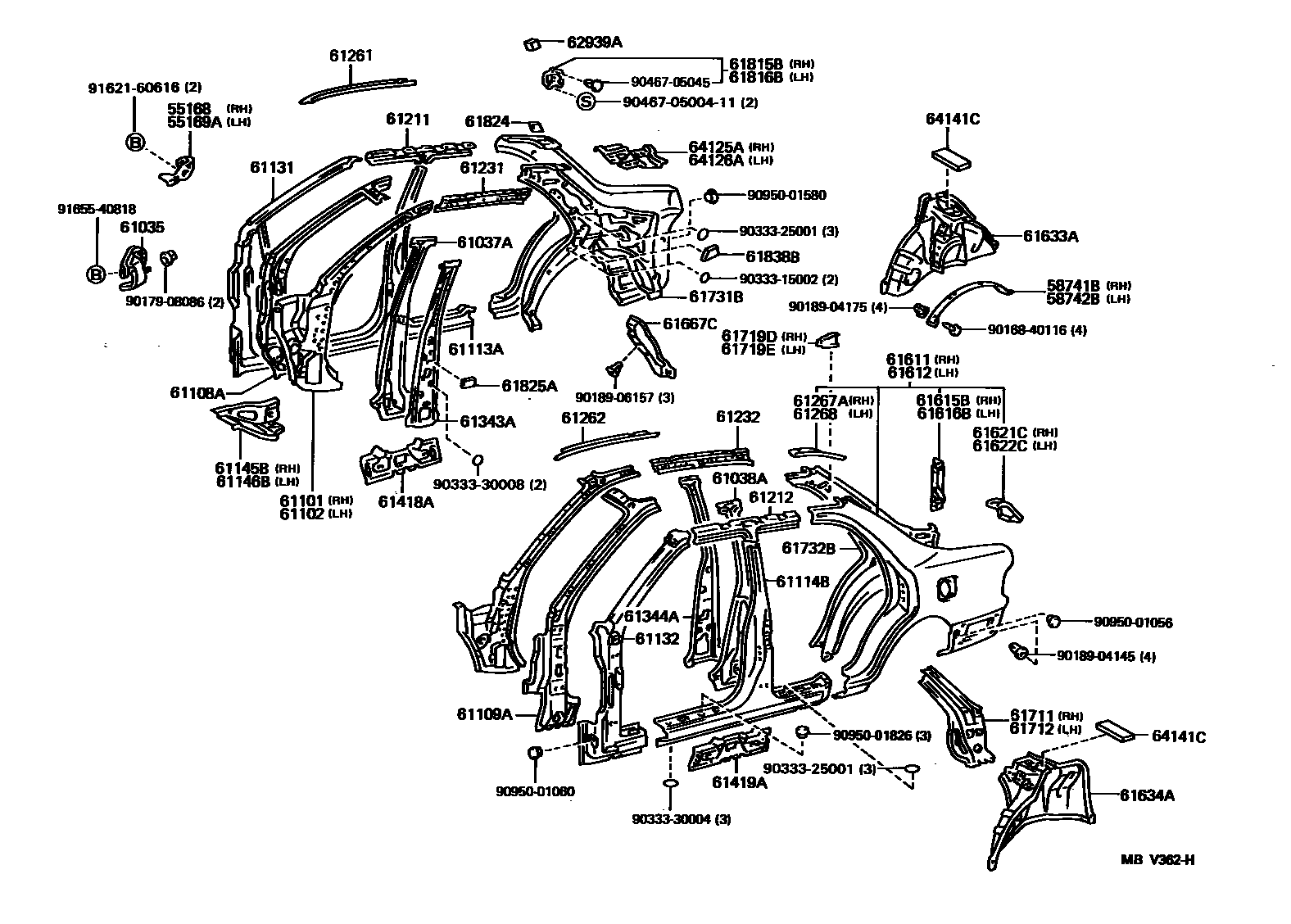

SIDE MEMBER

55168BRACKET, FRONT FENDER MOUNTING, RH

main55168-32010iMCV10,VCV10199107-199608

55169ABRACKET, FRONT FENDER MOUNTING, LH

main55169-32010iMCV10,VCV10199107-199608

58741BPROTECTOR, QUARTER PANEL, RH

main58741-33010iMCV10,VCV10199107-199608

58742BPROTECTOR, QUARTER PANEL, LH

main58742-33010iMCV10,VCV10199107-199608

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-33010iMCV10,VCV10199107-199608

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-32020iMCV10,VCV10199107-199608

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-32020iMCV10,VCV10199107-199608

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-33900iVCV10199107-199203

sub61101-33906

main61101-33906iMCV10,VCV10199203-199608

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-33900iVCV10199107-199203

sub61102-33908

main61102-33908iMCV10,VCV10199203-199608

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-33900iMCV10,VCV10199107-199408

sub61108-33902

main61108-33902iMCV10199408-199608

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-33900iMCV10,VCV10199107-199408

sub61109-33902

main61109-33902iMCV10199408-199608

61113APANEL, SIDE, OUTER NO.2 RH

main61113-32020iMCV10,VCV10199107-199310

sub61113-32021

main61113-32021iMCV10199310-199608

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-32020iMCV10,VCV10199107-199310

sub61114-32021

main61114-32021iMCV10199310-199608

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-32120iMCV10,VCV10199107-199608

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-32120iMCV10,VCV10199107-199608

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-33010iMCV10,VCV10199107-199608

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-33010iMCV10,VCV10199107-199608

61211RAIL, ROOF SIDE, OUTER RH

main61211-32080iMCV10,VCV10199107-199608

61212RAIL, ROOF SIDE, OUTER LH

main61212-32080iMCV10,VCV10199107-199608

61231RAIL, ROOF SIDE, INNER RH

main61231-33020iMCV10,VCV10199107-199608

61232RAIL, ROOF SIDE, INNER LH

main61232-33020iMCV10,VCV10199107-199608

61261CHANNEL, ROOF DRIP, RH

main61261-32070iMCV10,VCV10199107-199608

61262CHANNEL, ROOF DRIP, LH

main61262-32070iMCV10,VCV10199107-199608

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-32030iMCV10,VCV10199107-199608

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-32030iMCV10,VCV10199107-199608

61343APILLAR, CENTER BODY, INNER RH

main61343-32080iMCV10,VCV10199107-199608

61344APILLAR, CENTER BODY, INNER LH

main61344-32080iMCV10,VCV10199107-199608

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-32020iMCV10,VCV10199107-199608

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-32020iMCV10,VCV10199107-199608

61611PANEL, QUARTER, RH

main61601-33904iMCV10,VCV10199107-199608

sub61601-33906

61612PANEL, QUARTER, LH

main61602-33040iMCV10,VCV10199206-199608

main61602-33902iVCV10199107-199206

sub61602-33040

61615BREINFORCEMENT, QUARTER PANEL, OUTER FRONT

main61615-33020iMCV10,VCV10199107-199608

61616BREINFORCEMENT, QUARTER PANEL, OUTER REAR

main61616-33020iMCV10,VCV10199107-199608

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-32050iMCV10,VCV10199107-199608

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-32050iMCV10,VCV10199107-199608

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-33030iMCV10,VCV10199107-199608

sub61603-33080

sub90950-01872

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-33030iMCV10,VCV10199107-199608

sub61604-33090

sub90950-01872

61667CSEAL, QAURTER PANEL, NO.1

main61667-33020iMCV10,VCV10199107-199608

61711PANEL, ROOF SIDE, OUTER RH

main61711-32070iMCV10,VCV10199107-199608

61712PANEL, ROOF SIDE, OUTER LH

main61712-32070iMCV10,VCV10199107-199608

61719DBRACKET, ROOF SIDE, INNER RH

main61719-32020iMCV10,VCV10199107-199608

61719EBRACKET, ROOF SIDE, INNER LH

main61719-32020iMCV10,VCV10199107-199608

61731BPANEL, ROOF SIDE, INNER RH

main61731-32130iVCV10199107-199202

sub61731-33030

sub90467-05004

main61731-33030iMCV10,VCV10199202-199608

61732BPANEL, ROOF SIDE, INNER LH

main61732-32130iVCV10199107-199202

sub61732-33030

sub90467-05004

main61732-33030iMCV10,VCV10199202-199608

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32050iMCV10,VCV10199107-199608

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-32030iMCV10,VCV10199107-199608

61824PLATE, NOISE CONTROL, NO.1

main61824-20100iMCV10,VCV10199107-199608

W(*MR)

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iVCV10199107-199308

main61826-33010iMCV10199308-199608

sub61825-12010

61838BPLATE, NOISE CONTROL, NO.5

main61838-32010iMCV10,VCV10199107-199608

62939ASILENCER, QUARTER VENT

main62939-32020iMCV10,VCV10199107-199608

64125ABRACKET, UPPER BACK PANEL, RH

main61707-33010iMCV10,VCV10199107-199608

64126ABRACKET, UPPER BACK PANEL, LH

main61708-33010iMCV10,VCV10199107-199608

64141CSILENCER, UPPER BACK PANEL, NO.1

main64141-33010iMCV10,VCV10199107-199608

9016840116

main90168-40116

9017908086

main90179-08086

9018904145

main90189-04145

9018904175

main90189-04175

9018906157

main90189-06157

9033315002

main90333-15002

9033325001

main90333-25001

9033330004

main90333-30004

9033330008

main90333-30008

904670500411

main90467-0500411

9046705045

main90467-05045

9095001056

main90950-01056

9095001060

main90950-01060

9095001580

main90950-01580

9095001826

main90950-01826

9162160616

main91621-60616

9165540818

main91655-40818

70 parts on this diagram · 1 diagram in section
