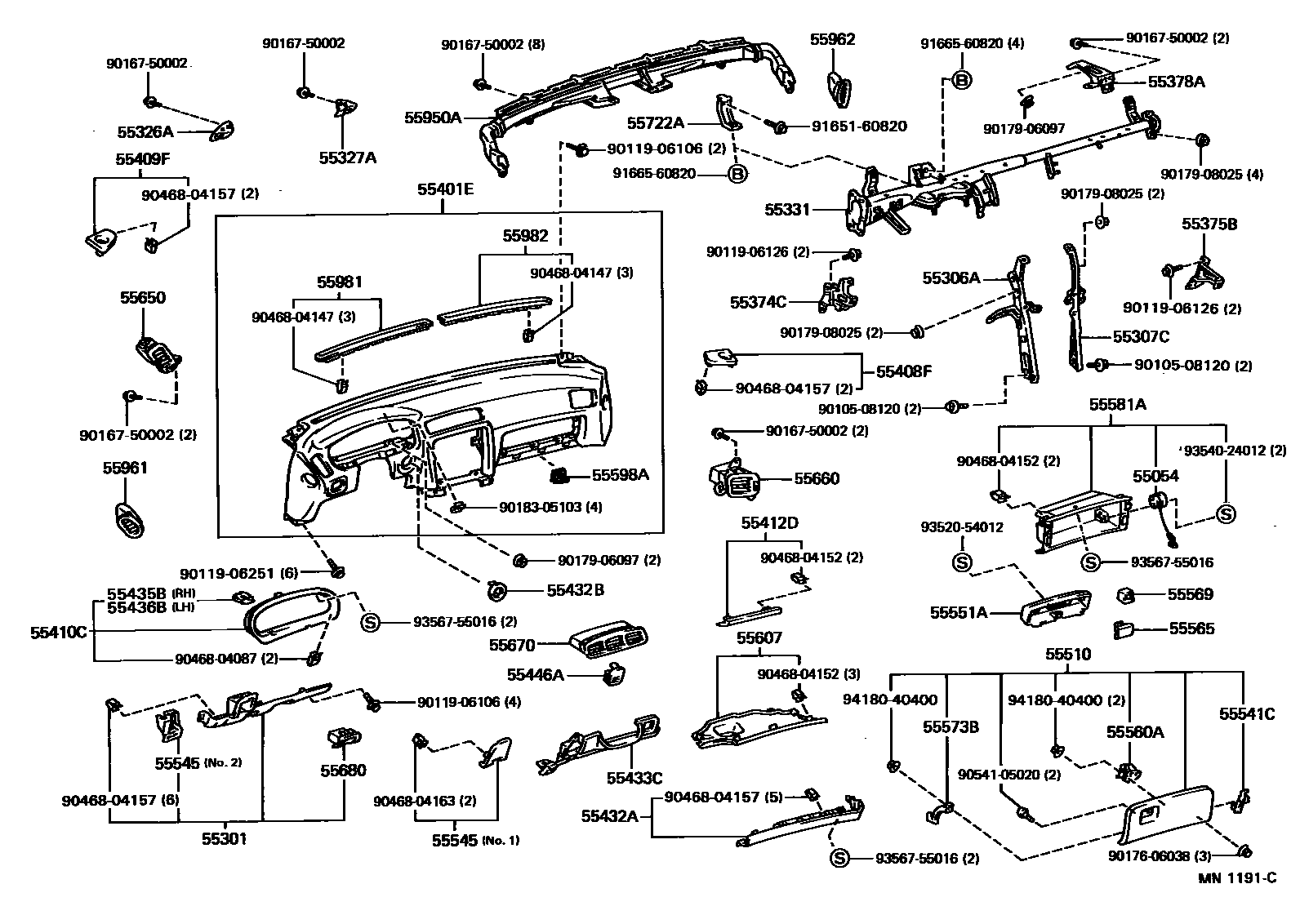

INSTRUMENT PANEL & GLOVE COMPARTMENT
55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,TRIM2#
MEDIUM TAUPE,TRIM9#
BLUE,TRIM8#
IVORY,TRIM0#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55326ASTAY, INSTRUMENT PANEL, NO.1
55327ASTAY, INSTRUMENT PANEL, NO.2
55331REINFORCEMENT, INSTRUMENT PANEL
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM2#
TAUPE,TRIM9#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
BLACK,TRIM2#
OAK,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
BLACK,TRIM2#
MEDIUM TAUPE,TRIM9#
BLUE,TRIM8#
IVORY,TRIM0#
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
55435BCLUSTER, METER HOOD, NO.1
55436BCLUSTER, METER HOOD, NO.2
55446ABASE, SWITCH HOLE, NO.1
55510DOOR ASSY, GLOVE COMPARTMENT
BLACK,TRIM2#
TAUPE,TRIM9#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
BLACK,TRIM2#
OAK,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
55541CARM, GLOVE COMPARTMENT HINGE, RH
55545COVER, FUSE BOX OPENING
NO.2
55551ADOOR, GLOVE COMPARTMENT, OUTER
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55573BARM, GLOVE COMPARTMENT DOOR CHECK, LH
55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55722ABRACE, COWL TOP TO COWL, INNER NO.2
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
9010508120
main90105-08120
9011906106
main90119-06106
9011906126
main90119-06126
9011906251
main90119-06251
9016750002
main90167-50002
9017606038
main90176-06038
9017906097
main90179-06097
9017908025
main90179-08025
9018305103
main90183-05103
9046804087
main90468-04087
9046804147
main90468-04147
9046804152
main90468-04152
9046804157
main90468-04157
9046804163
main90468-04163
9054105020
main90541-05020
9165160820
main91651-60820
9166560820
main91665-60820
9352054012
main93520-54012
9354024012
main93540-24012
9356755016
main93567-55016
9418040400
main94180-40400
63 parts on this diagram · 3 diagrams in section
