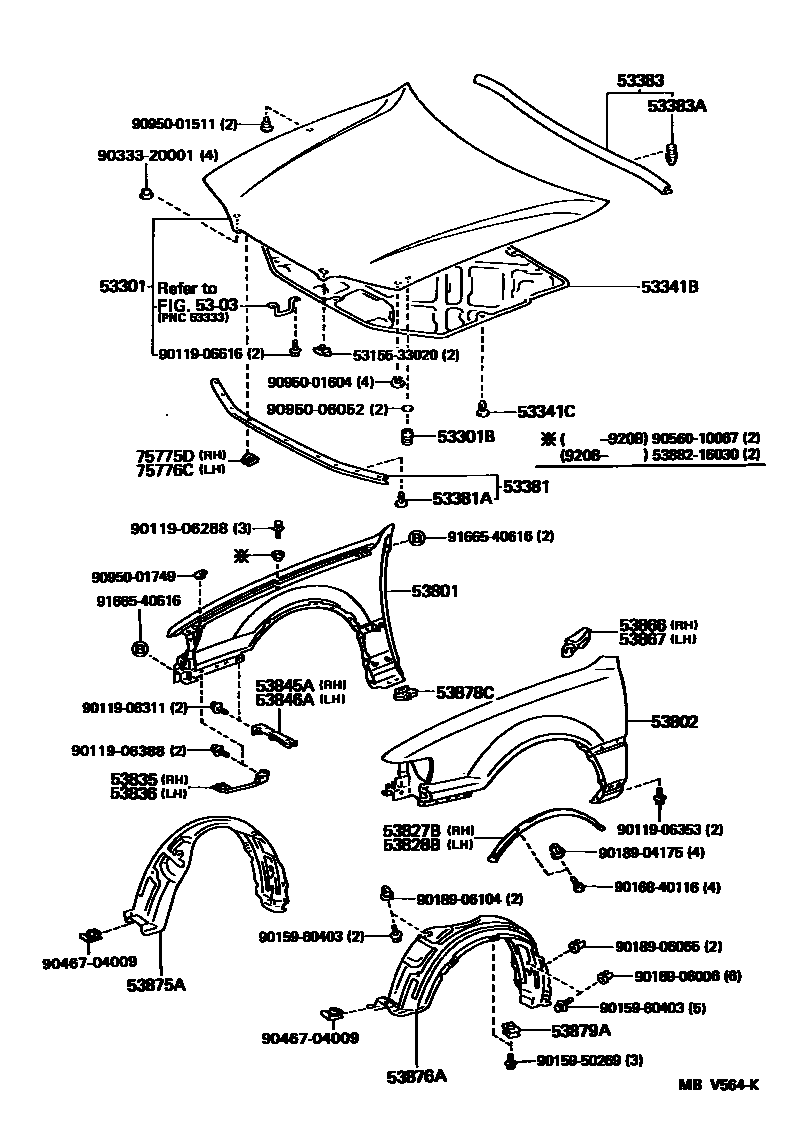

HOOD & FRONT FENDER
5303
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
CENTER
RH
LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53835BRACE, FRONT FENDER TO EXTENSION, RH
53836BRACE, FRONT FENDER TO EXTENSION, LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
75775DCOVER, HOOD FRONT MOULDING END, RH
75776CCOVER, HOOD FRONT MOULDING END, LH
5315533020MOULDING, HEADLAMP DOOR, RH
main53155-33020
5388216030PACKING, FRONT FENDER MAIN
main53882-16030
9011906288
main90119-06288
9011906311
main90119-06311
9011906353
main90119-06353
9011906388
main90119-06388
9011906616
main90119-06616
9015950269
main90159-50269
9015960403
main90159-60403
9016840116
main90168-40116
9018904175
main90189-04175
9018906006
main90189-06006
9018906065
main90189-06065
9018906104
main90189-06104
9033320001
main90333-20001
9046704009
main90467-04009
9056010067
main90560-10067
9095001511
main90950-01511
9095001604
main90950-01604
9095001749
main90950-01749
9095006052
main90950-06052
9166540616
main91665-40616
47 parts on this diagram · 1 diagram in section
