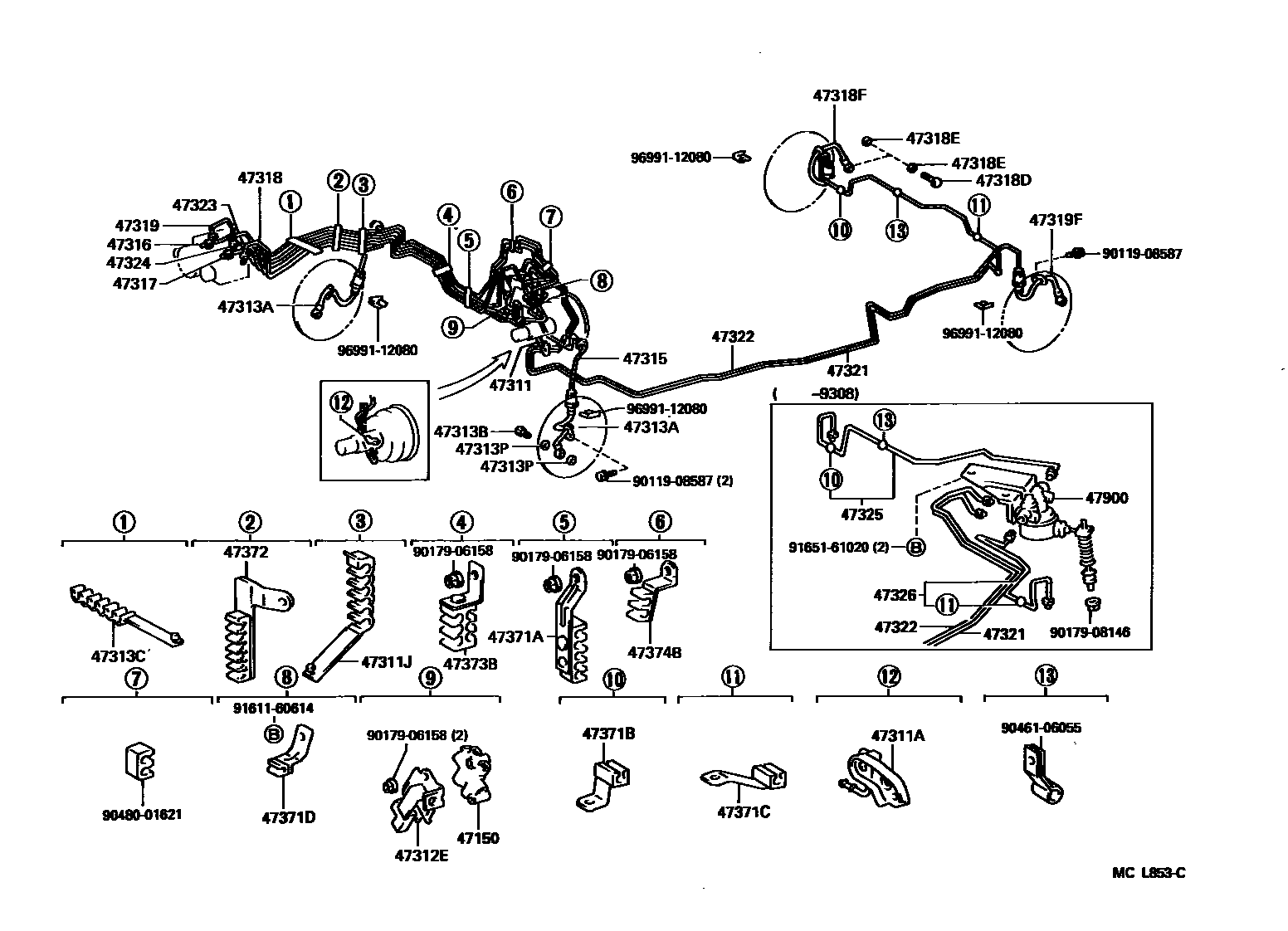

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-20270iMCV10199308-199608

main90412-10140iVCV10199107-199308

47311TUBE, FRONT BRAKE, NO.1

main47311-33010iMCV10,VCV10199107-199408

main47311-33030iMCV10199408-199608

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10185iMCV10,VCV10199107-199408

main90904-12025iMCV10199408-199608

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-01413iMCV10,VCV10199107-199608

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10187iVCV10199107-199308

main90904-12026iMCV10199308-199608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02652iMCV10,VCV10199107-199408

RH

sub90947-02734

main90947-02653iMCV10,VCV10199107-199408

LH

sub90947-02736

main90947-02734iMCV10199408-199608

RH

main90947-02736iMCV10199408-199608

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iMCV10,VCV10199107-199608

47313CGROMMET, NO.3(FOR FRONT BRAKE TUBE)

main90480-01627iMCV10,VCV10199107-199608

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iMCV10,VCV10199108-199608

main90430-10074iVCV10199107-199108

47315TUBE, FRONT BRAKE, NO.5

main47315-33040iVCV10199107-199308

main47315-33070iMCV10199308-199608

47316TUBE, FRONT BRAKE, NO.6

main47316-33020iVCV10199107-199108

sub47316-33021

main47316-33021iVCV10199108-199308

main47316-33030iMCV10199408-199508

main47316-33040iMCV10199308-199408

main47316-33060iMCV10199508-199608

47317TUBE, FRONT BRAKE, NO.7

main47317-33020iVCV10199107-199108

sub47317-33021

main47317-33021iVCV10199108-199308

main47317-33030iMCV10199508-199608

main47317-33040iMCV10199308-199508

47318TUBE, FRONT BRAKE, NO.8

main47318-33010iVCV10199107-199308

main47318-33030iMCV10199308-199608

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iMCV10,VCV10199107-199608

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010iMCV10,VCV10199108-199608

main90430-10074iVCV10199107-199108

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02668iVCV10199107-199212

sub90947-02750

main90947-02750iMCV10,VCV10199212-199608

47319TUBE, FRONT BRAKE, NO.9

main47319-33020iVCV10199107-199308

main47319-33040iMCV10199308-199608

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02669iVCV10199107-199212

sub90947-02751

main90947-02751iMCV10,VCV10199212-199608

47321TUBE, REAR BRAKE, NO.1

main47321-33010iMCV10199308-199608

main47321-33030iVCV10199107-199308

47322TUBE, REAR BRAKE, NO.2

main47322-33010iMCV10199308-199608

main47322-33030iVCV10199107-199308

47323TUBE, REAR BRAKE, NO.3

main47323-33020iVCV10199107-199308

main47323-33050iMCV10199308-199608

47324TUBE, REAR BRAKE, NO.4

main47324-33020iVCV10199107-199308

main47324-33050iMCV10199308-199608

47325TUBE, REAR BRAKE, NO.5

main47325-33010iVCV10199107-199308

47326TUBE, REAR BRAKE, NO.6

main47326-33010iVCV10199107-199308

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33040iMCV10,VCV10199107-199608

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iMCV10,VCV10199107-199608

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iMCV10,VCV10199107-199608

47371DCLAMP, BRAKE TUBE, NO.8

main47371-33020iVCV10199107-199308

main47371-33080iMCV10199308-199508

main47371-33090iMCV10199508-199608

47372CLAMP, BRAKE TUBE, NO.2

main47371-33050iMCV10,VCV10199107-199608

47373BCLAMP, BRAKE TUBE, NO.3

main47371-33070iMCV10,VCV10199107-199608

47374BCLAMP, BRAKE TUBE, NO.4

main47372-50090iMCV10,VCV10199107-199608

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-33010iVCV10199107-199308

9011908587

main90119-08587

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9048001621

main90480-01621

9161160614

main91611-60614

9165161020

main91651-61020

9699112080

main96991-12080
