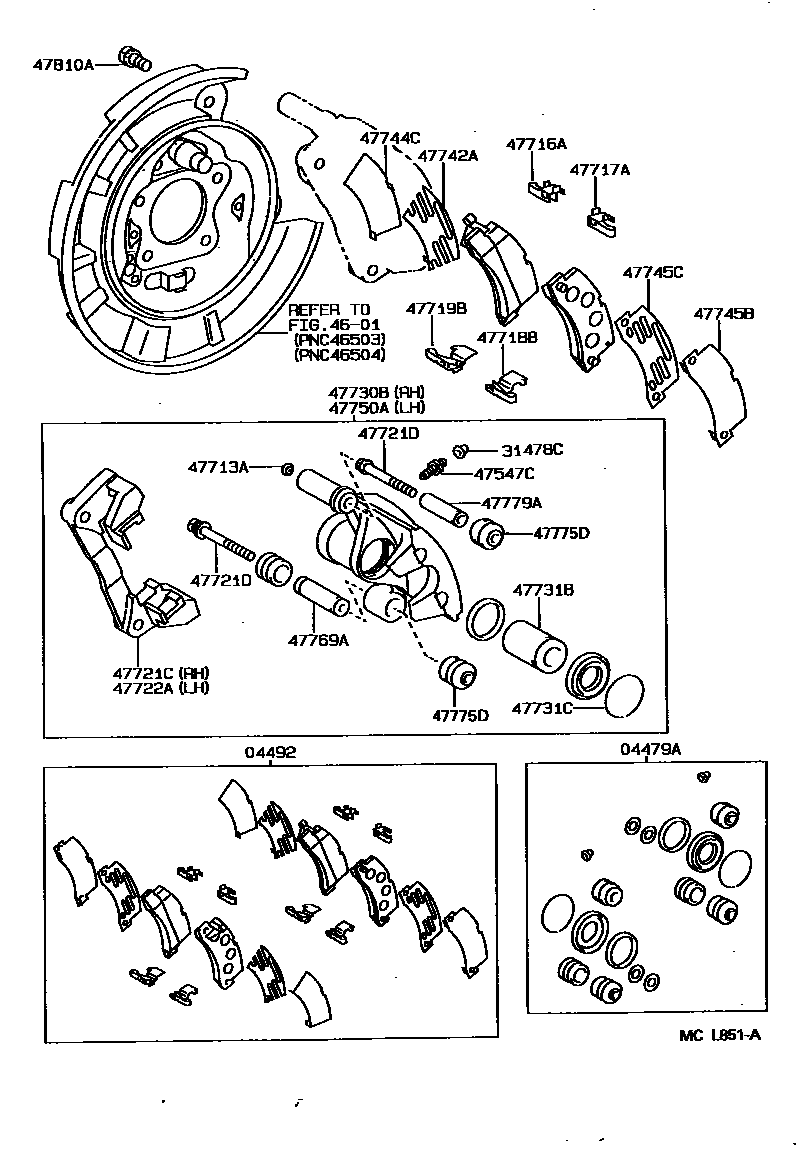

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20120iMCV10,VCV10199107-199607

sub04479-33040

main04479-33040iMCV10199607-199608

sub04479-33041

04492PAD KIT, DISC BRAKE, REAR

main04492-33010iMCV10,VCV10199107-199505

sub04466-32010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCV10,VCV10199107-199608

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMCV10,VCV10199107-199608

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538iMCV10,VCV10199107-199608

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32020iMCV10,VCV10199107-199607

sub47716-33070

main47716-33070iMCV10199607-199608

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32020iMCV10,VCV10199107-199607

sub47717-33050

main47717-33050iMCV10199607-199608

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-32010iMCV10,VCV10199107-199607

sub47718-33010

main47718-33010iMCV10199607-199608

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-32010iMCV10,VCV10199107-199607

sub47719-33010

main47719-33010iMCV10199607-199608

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20320iMCV10,VCV10199107-199607

sub47721-20321

sub47715-33020

main47721-20321iMCV10199607-199608

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08133iMCV10,VCV10199107-199607

*8-1.25PX58-25

main90119-08547iMCV10,VCV10199107-199607

*8-1.25PX68-30

main90119-08A98iMCV10199607-199608

*8-1.25PX68-30

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20320iMCV10,VCV10199107-199607

sub47721-20321

sub47715-33020

main47721-20321iMCV10199607-199608

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-33050iMCV10,VCV10199107-199607

sub47730-33051

main47730-33051iMCV10199607-199608

47731BPISTON, REAR DISC BRAKE

main47731-20130iMCV10,VCV10199107-199608

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43003iMCV10,VCV10199107-199608

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031iMCV10,VCV10199107-199608

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47745-32030iMCV10,VCV10199107-199608

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32090iMCV10,VCV10199107-199608

47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32090iMCV10,VCV10199107-199608

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-33050iMCV10,VCV10199107-199607

sub47750-33051

main47750-33051iMCV10199607-199608

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020iMCV10,VCV10199107-199608

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32020iMCV10199107-199608

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32020iMCV10,VCV10199107-199607

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iMCV10,VCV10199107-199608

25 parts on this diagram · 3 diagrams in section
