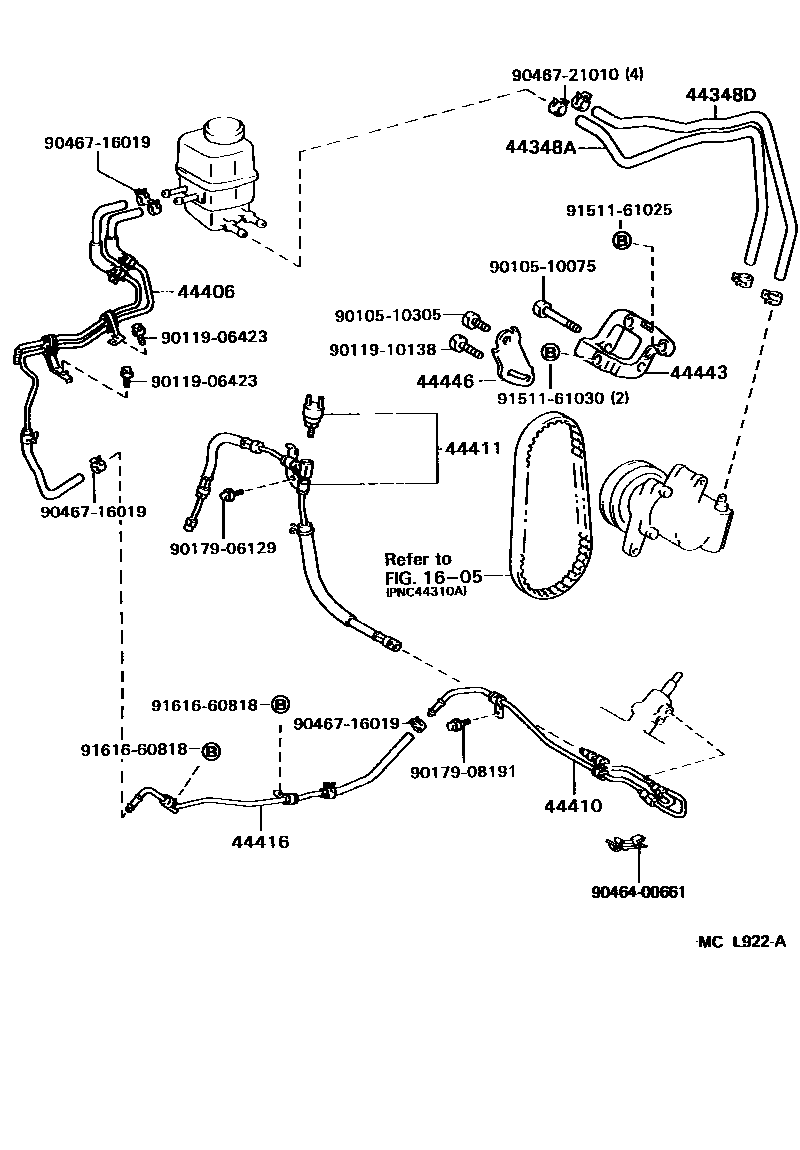

POWER STEERING TUBE

0001 1 0002 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33010iVCV10199107-199308

main44348-33090iMCV10199308-199608

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-33020iVCV10199107-199308

main44348-33100iMCV10199308-199608

44406TUBE SUB-ASSY, RETURN

main44406-33010iVCV10199107-199202

sub44406-33011

main44406-33011iVCV10199202-199308

sub44406-33012

main44406-33012iMCV10199308-199608

44410TUBE ASSY, PRESSURE FEED

main44410-33020iMCV10,VCV10199107-199608

44411HOSE, PRESSURE FEED

main44411-33010iVCV10199107-199308

main44411-33040iMCV10199308-199608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33010iMCV10,VCV10199107-199608

44443BRACKET, PUMP

main44443-33010iVCV10199107-199308

main44443-33030iMCV10199308-199608

44446STRUT, ADJUSTING

main44446-32020iVCV10199107-199308

main44446-33010iMCV10199308-199608

9010510075

main90105-10075

9010510305

main90105-10305

9011906423

main90119-06423

9011910138

main90119-10138

9017906129

main90179-06129

9017908191

main90179-08191

9046400661

main90464-00661

9046716019

main90467-16019

9046721010

main90467-21010

9151161025

main91511-61025

9151161030

main91511-61030

9161660818

main91616-60818

21 parts on this diagram · 2 diagrams in section
