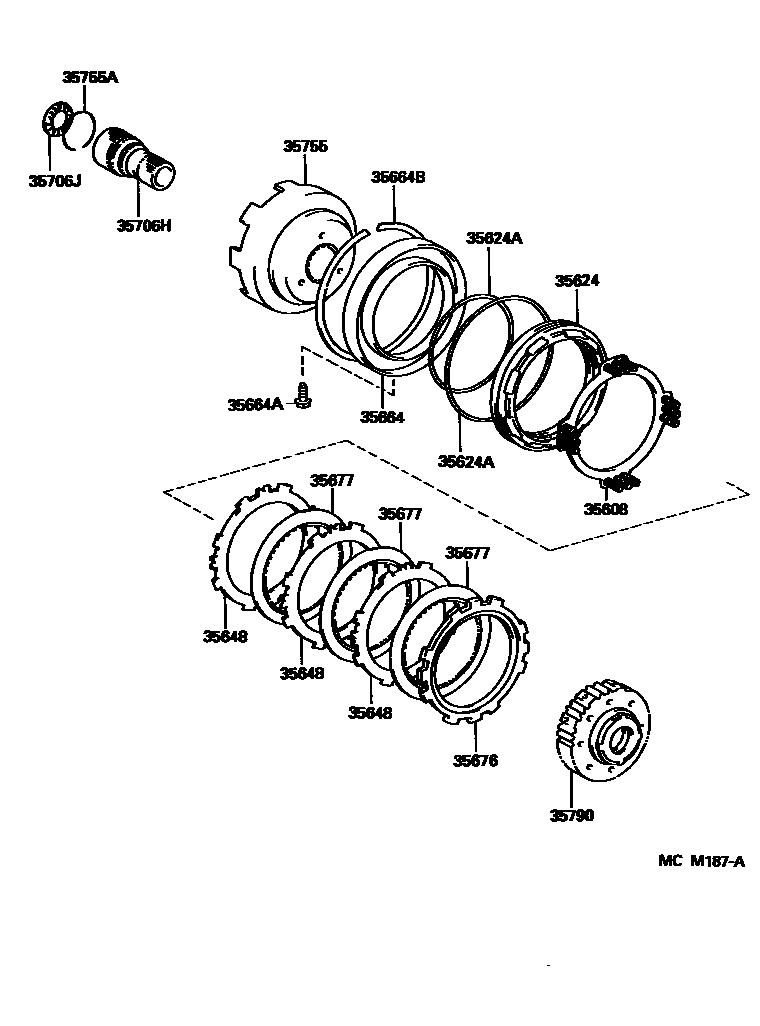

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0002 1

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iVCV10..ATM199107-199308

main35608-33010iMCV10199407-199608

main35608-33020iMCV10199308-199407

35624PISTON, 2ND BRAKE

main35624-32010iMCV10,VCV10..ATM199107-199407

main35624-33010iMCV10199407-199608

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iMCV10,VCV10..ATM199107-199608

INNER

main90301-99023iMCV10,VCV10..ATM199107-199608

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32030iVCV10..ATM199107-199308

T=1.8

main35648-33010iMCV10199308-199408

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iMCV10,VCV10..ATM199107-199608

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iVCV10..ATM199107-199308

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iMCV10,VCV10..ATM199107-199608

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iVCV10..ATM199107-199308

T=3.5

sub35676-12030

main35676-33010iMCV10199308-199608

T=3.6

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-33020iVCV10..ATM199107-199308

sub35677-33021

main35677-33050iMCV10199308-199408

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-33010iVCV10..ATM199107-199212

sub35706-33011

main35706-33011iMCV10,VCV10..ATM199212-199608

sub35706-33012

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30008iMCV10,VCV10..ATM199107-199608

sub90374-30014

35755DRUM, SUN GEAR INPUT

main35755-32030iVCV10..ATM199107-199308

main35755-33010iMCV10199308-199608

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-36017iMCV10,VCV10..ATM199107-199608

T=1.4,ID=36

35790CLUTCH ASSY, 1 WAY

main35790-32031iVCV10..ATM199107-199308

main35790-33010iMCV10199308-199608

14 parts on this diagram · 2 diagrams in section
