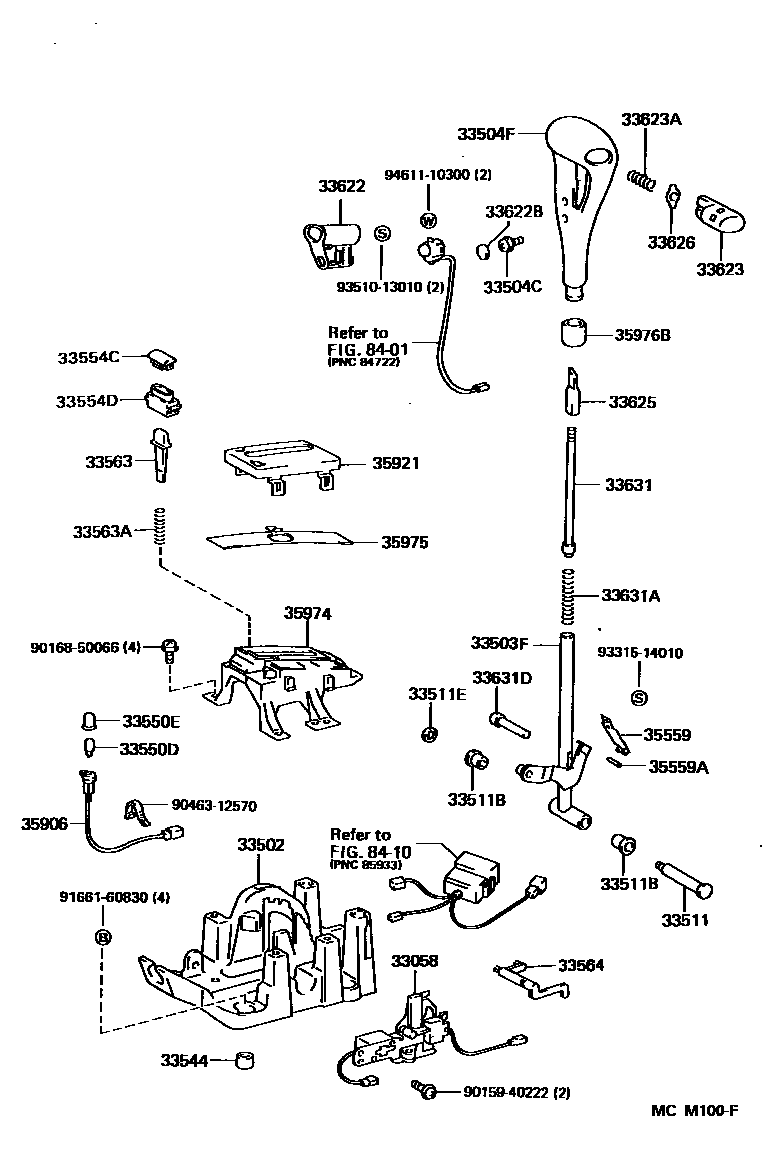

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511BBUSH (FOR CONTROL SHAFT)
33511ERING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
12V 3.4W
33550ECAP, POSITION INDICATOR LAMP
sub90339-09002
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33554DGUIDE, SHIFT LOCK RELEASE BUTTON COVER
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33622COVER, SHIFT LEVER KNOB, NO.1
33622BPLUG, SHIFT LEVER KNOB
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
35559SPRING, MANUAL DETENT
35559APIN (FOR MANUAL DETENT SPRING)
35906WIRE SUB-ASSY, INDICATOR LAMP
sub35906-26030
35921PLATE, CONTROL POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
8401
8410
9015940222
main90159-40222
9016850066
main90168-50066
9046312570
main90463-12570
9166160830
main91661-60830
9331514010
main93315-14010
9351013010
main93510-13010
9461110300
main94611-10300
41 parts on this diagram · 4 diagrams in section
