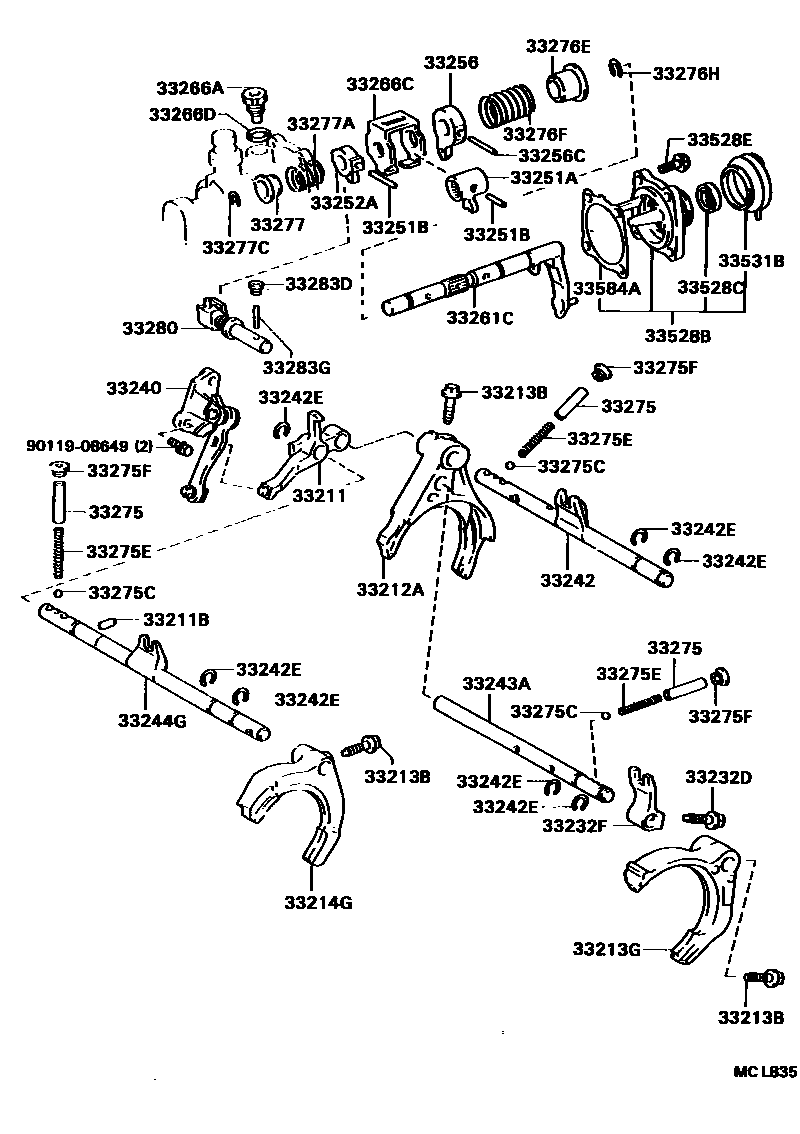

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33211BROLLER(FOR REVERSE SHIFT FORK)
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33214GFORK, GEAR SHIFT, NO.3
33232DBOLT (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=32
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=44.1
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
sub33277-17010
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33528BCOVER, CONTROL SHAFT
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9011908649
main90119-08649
41 parts on this diagram · 2 diagrams in section
