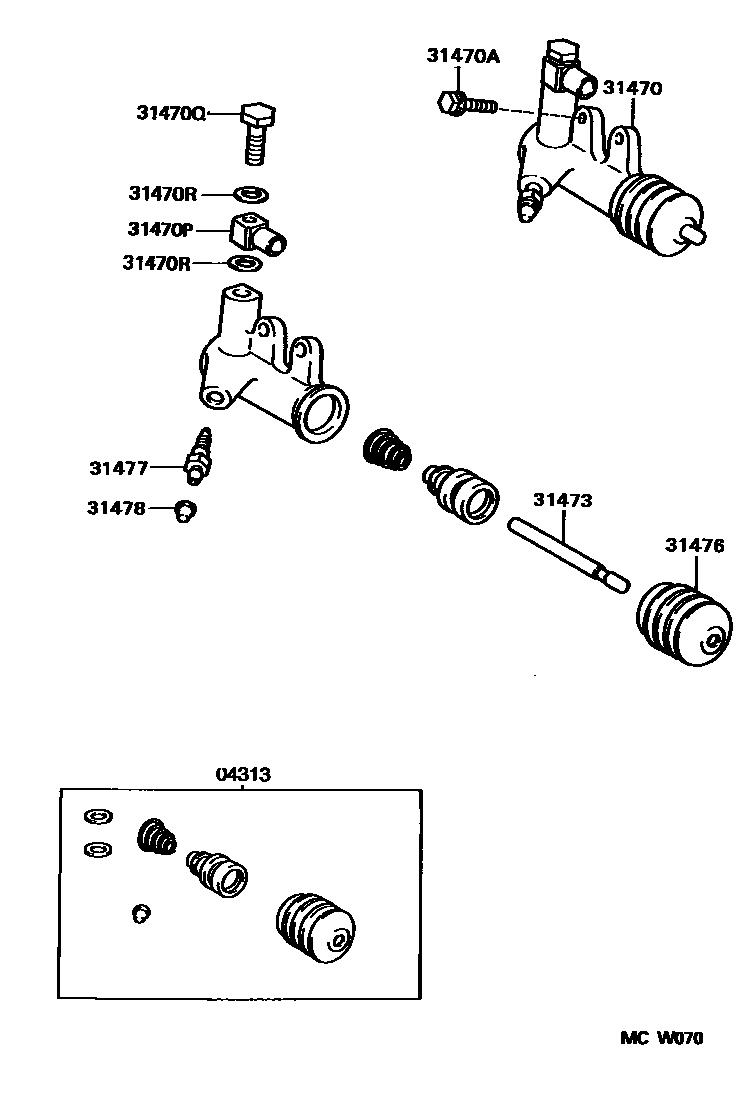

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-33010iVCV10..MTM199107-199308

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-33020iVCV10..MTM199107-199308

sub31470-33010

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iVCV10..MTM199107-199308

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10165iVCV10..MTM199107-199308

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10046iVCV10..MTM199107-199205

main90401-10056iVCV10..MTM199205-199308

31470RGASKET(FOR CLUTCH RELEASE)

main90430-10074iVCV10..MTM199107-199308

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iVCV10..MTM199107-199308

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iVCV10..MTM199107-199308

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iVCV10..MTM199107-199308

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iVCV10..MTM199107-199308

10 parts on this diagram · 1 diagram in section
