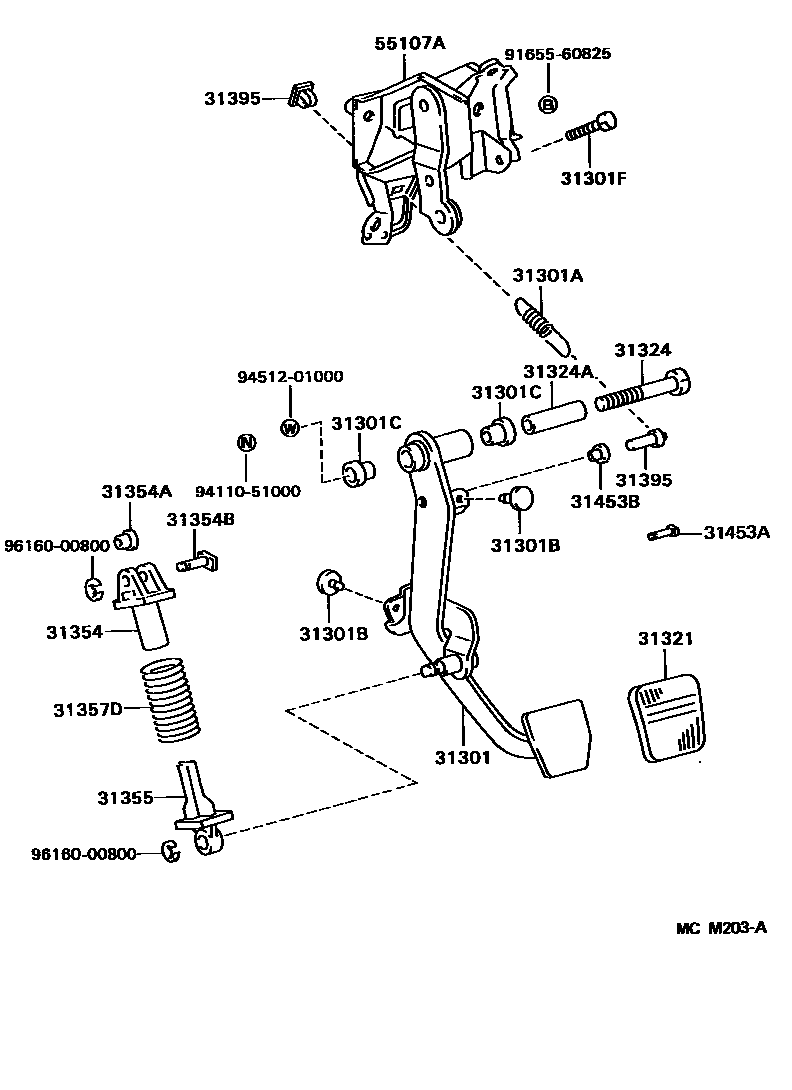

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33010iVCV10..MTM199107-199308

31301ASPRING(FOR CLUTCH PEDAL)

main90507-18027iVCV10..MTM199107-199308

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iVCV10..MTM199107-199308

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iVCV10..MTM199107-199308

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iVCV10..MTM199107-199308

31321PAD, CLUTCH PEDAL

main31321-14020iVCV10..MTM199107-199308

31324SHAFT, CLUTCH PEDAL

main90101-10273iVCV10..MTM199107-199308

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iVCV10..MTM199107-199308

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-20030iVCV10..MTM199107-199308

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iVCV10..MTM199107-199308

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iVCV10..MTM199107-199308

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20030iVCV10..MTM199107-199308

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-40029iVCV10..MTM199107-199308

31395HOOK, PEDAL SPRING

main31395-33010iVCV10..MTM199107-199308

PEDAL SIDE

main31395-33020iVCV10..MTM199107-199308

SUPPORT SIDE

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iVCV10..MTM199107-199308

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iVCV10..MTM199107-199308

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33010iVCV10..MTM199107-199308

9165560825

main91655-60825

9411051000

main94110-51000

9451201000

main94512-01000

9616000800

main96160-00800

21 parts on this diagram · 2 diagrams in section
