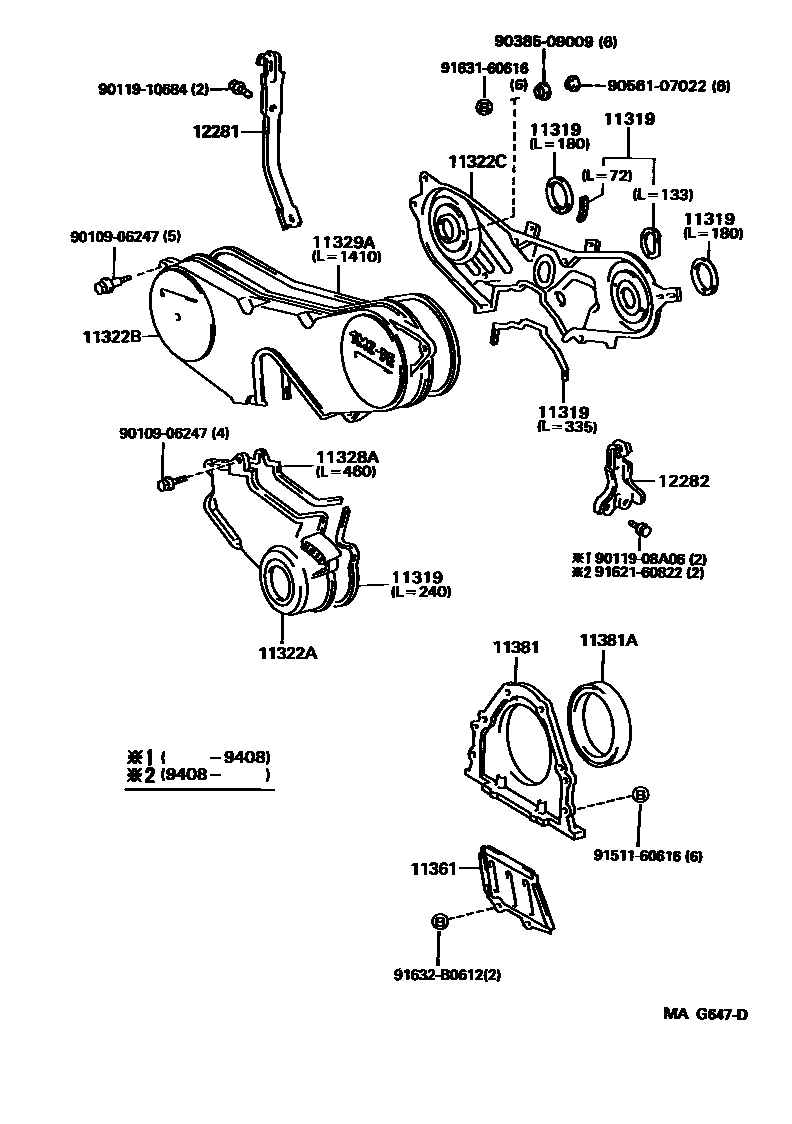

TIMING GEAR COVER & REAR END PLATE
11319GASKET, TIMING BELT COVER, NO.3
11322ACOVER, TIMING BELT, NO.1
11322CCOVER, TIMING BELT, NO.3
11328GASKET, TIMING GEAR OR CHAIN COVER
11328AGASKET, TIMING BELT COVER, NO.1
11329GASKET, TIMING GEAR REAR COVER
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
11361COVER, FLYWHEEL HOUSING UNDER
sub11361-20011
11381RETAINER, ENGINE REAR OIL SEAL
12281HANGER, ENGINE, NO.1
12282HANGER, ENGINE, NO.2
9010906247
main90109-06247
9011908A06
main90119-08A06
9011910684
main90119-10684
9038509009
main90385-09009
9056107022
main90561-07022
9151160616
main91511-60616
9162160822
main91621-60822
9163160616
main91631-60616
91632B0612
main91632-B0612
22 parts on this diagram · 2 diagrams in section
