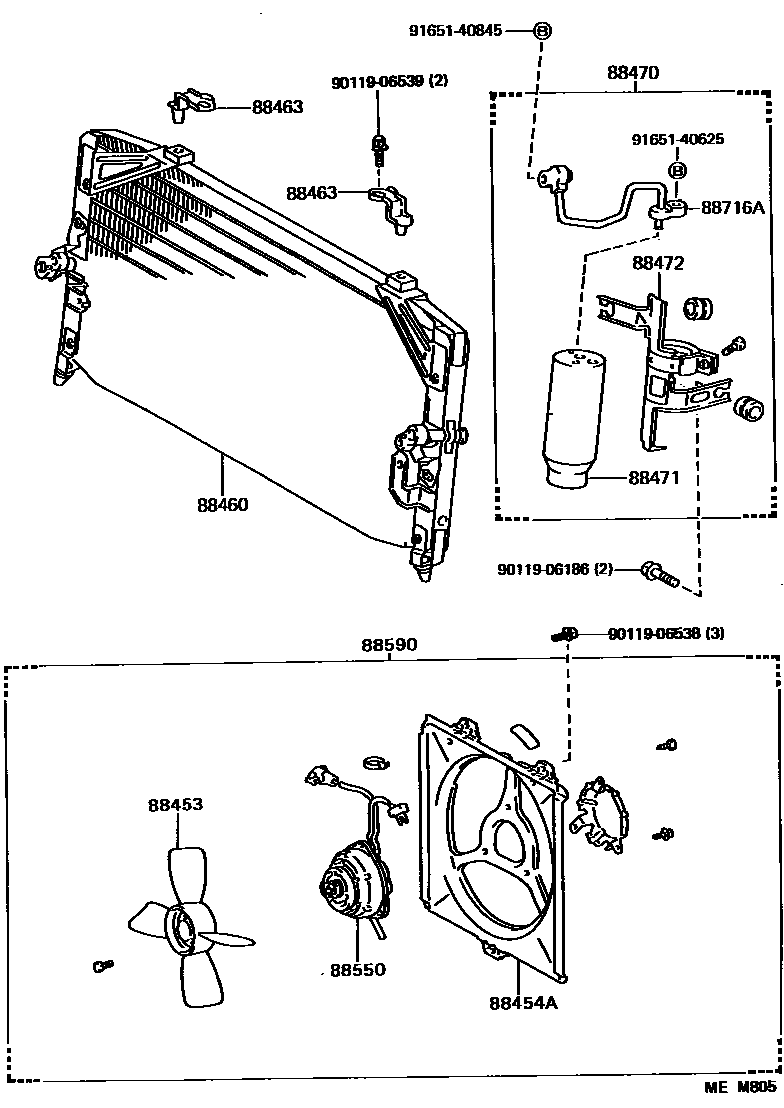

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88453FAN, COOLING (FOR CONDENSER)

main88453-32040iVZV21198906-199107

88454ASHROUD, FAN

main88454-32050iVZV21198906-199107

88460CONDENSER ASSY, COOLER

main88460-32090iVZV21198906-199107

88463BRACKET, COOLER CONDENSER, NO.1

main88463-32021iVZV21198906-199107

88470RECEIVER & DRYER ASSY, COOLER

main88470-32020iVZV21198906-199107

88471TANK, RECEIVER AIR CONDITIONER

main88471-10030iVZV21198906-199107

sub88471-12040

88472BRACKET, RECEIVER TANK, NO.1

main88473-32030iVZV21198906-199107

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-32060iVZV21198906-199107

88590BLOWER ASSY, W/SHROUD

main88590-32110iVZV21198906-199107

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-32230iVZV21198906-199107

9011906186

main90119-06186

9011906538

main90119-06538

9011906539

main90119-06539

9165140625

main91651-40625

9165140845

main91651-40845

15 parts on this diagram · 2 diagrams in section
