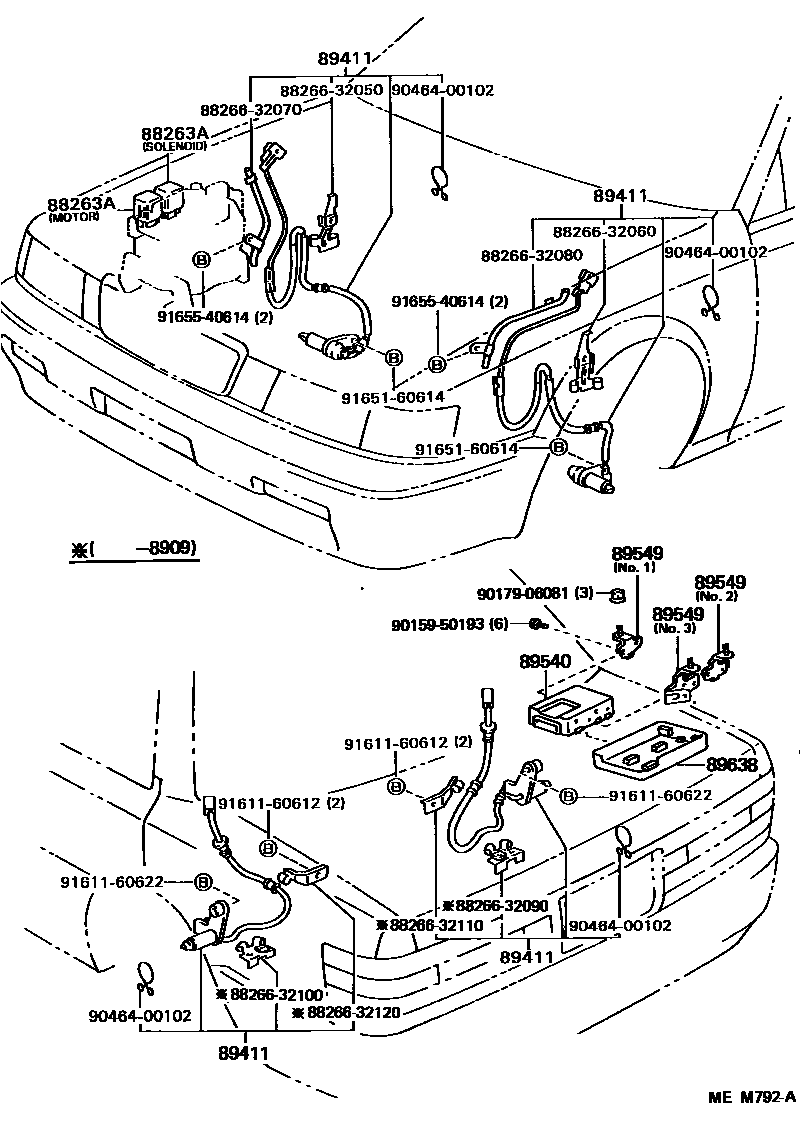

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-14110iVZV21198906-199107

MOTOR RELAY

main88263-14120iVZV21198906-199107

SOLENOIDE RELAY

89411SENSOR, SPEED

main89542-32010iVZV21198906-199107

FRONT RH

main89543-32010iVZV21198906-199107

FRONT LH

main89545-32010iVZV21198906-199107

REAR RH

main89546-32010iVZV21198906-199107

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-20030iVZV21198906-199107

89549BRACKET, SKID CONTROL COMPUTER

main88267-32080iVZV21198906-199107

NO.1

main88268-32070iVZV21198906-199107

NO.2

main88269-32070iVZV21198906-199107

NO.3

89638COVER, BRAKE CONTROL COMPUTER

main89638-32050iVZV21198906-199107

8826632050CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32050

8826632060CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32060

8826632070CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32070

8826632080CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32080

8826632090CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32090

8826632100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32100

8826632110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32110

8826632120CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32120

9015950193

main90159-50193

9017906081

main90179-06081

9046400102

main90464-00102

9161160612

main91611-60612

9161160622

main91611-60622

9165160614

main91651-60614

9165540614

main91655-40614

20 parts on this diagram · 1 diagram in section
